Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer
Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer
Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer
Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer
Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer
Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer
Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer
Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer
Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer
Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer
Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer
Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer
Specifications
Brand Name :
TOBRO
Model Number :
TB-2026
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
10 sets
Payment Terms :
TT，LC
Supply Ability :
100000Ton/ Month
Delivery Time :
30days
Packaging Details :
Neutral packaging
place of origin :
Hunan, China
brand name :
Tobro
model number :
hydraulic arm hook
warranty :
1 Year
material :
OEM
machinery test report :
Provided
core components :
PLC, Pump
weight (kg) :
3000 kg
Drive Wheel :
4*3
Type :
rear loader
Transmission Type :
Manual
Emission Standard :
Euro 3
Fuel Type :
Diesel
Engine Capacity :
3856
Size :
6500*1200*2100
Gross Vehicle Weight :
16000
Hook lift arm type :
Telescopic arm
Hook Lift arm material :
HG785 High Strength Steel
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Printing Shops, Construction works , Energy & Mining
Production Capacity :
Other
Marketing Type :
Other
Warranty of core components :
1 Year
Description
Product Description
item
value
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Printing Shops, Construction works , Energy & Mining
Showroom Location
None
Place of Origin
China

Hunan
Warranty
1 Year
Production Capacity
Other
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
Other
Warranty of core components
1 Year
Core Components
Pressure vessel, Pump
Weight (KG)
3000kg
Key Features & Advantages
Versatility can manage multiple types of containers, including dumpsters, flatbeds, and recycling bins
Safety & Efficiency The hydraulic arm enables quick, remote operation from the truck cab.
High-Tensile Steel Use specialized steel to maximize payload while lowering operating costs.

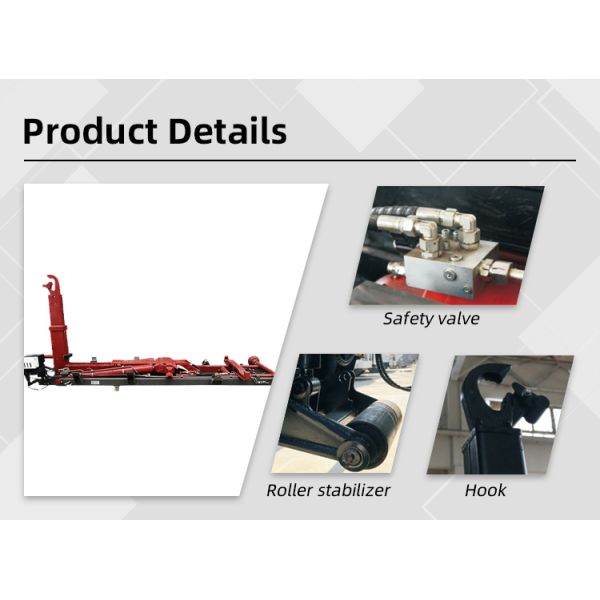

Durability Components feature robust rollers to manage heavy loads and ensure smooth, stable, and long-lasting operation.

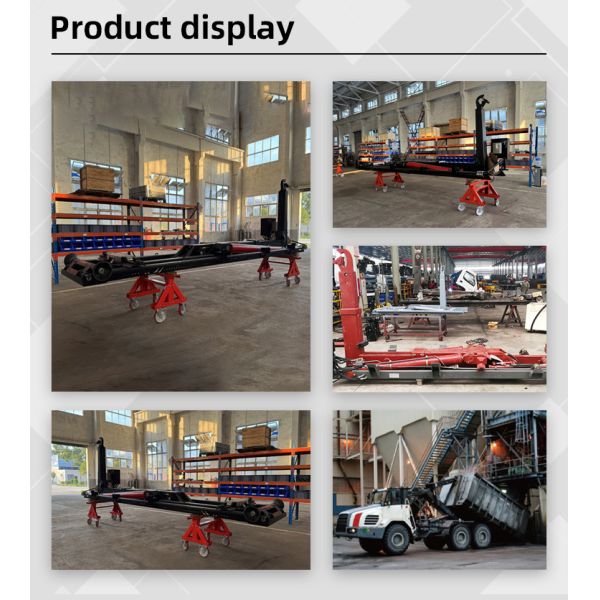

Product Display
Hydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift TrailerHydraulic System Hook Lift Arm for Efficient Loading Roll-Off Hoists Waste Treatment Machinery for Hook Lift Trailer
Model Lifting Hook Wheel Hook heart height Length Dead-weight

Angle of roll

1937

 1T 1801mm 1015mm 1800-2000mm 220kg 48°
2345 1.5T 2220mm 1015mm 2200-2500mm 245kg 48°

3065

 3-7T 3513mm 920mm 2800-4250mm 830kg 49°

4200

 8-10T 3993mm 1570mm 3250-4750mm 1120kg 52°
4750 14-16T 4485mm 1570mm 3500-5500mm 1610kg 52°
5650 20T 5366mm 1570mm 4250-6500mm 2350kg 48°
6310 26T 6010mm 1570mm 4750-7500mm 2390kg 48°
