Specifications
Place of Origin :
CHINA
Brand Name :
TOBO
Certification :
LR,BV,SGS,BIS,DNV,CRN,ABS,TUV，
Model Number :
UNI 2276 PN6 PLATE FLANGE Print The Page SLIP ON PLATE
MOQ :
1PCS
Price :
1USD
Packaging Details :
WOODCASE or PLATE
Delivery Time :
0-30days
Payment Terms :
TT/LC
Supply Ability :
300000T/Year
Description

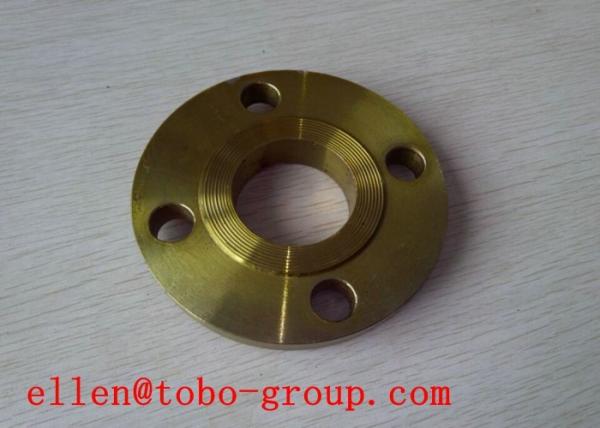

UNI 2276 PN6 PLATE FLANGE
TOBO STEEL Group UNI 2276 PN6 PLATE FLANGE Print The Page SLIP ON PLATE
SLIP ON PLATE
Flange Dimensions & Approximate Masses
ITALY STANDARD UNI 2276 PN6 PLATE FLANGE DIMENSIONS TABLE
Directions for the designationd1abDfHolesScrewsWeight*
Kg
Rated
Diameter		External diameter
of the pipe		NominalTolerance
152020,5+0,5551080114M 100,34
21,3220,33
202525,5651290114M 100,51
26,927,50,50
253030,57512100114M 100,63
33,7340,61
323838,59014120144M 121,09
42,4431,05
4044,54510014130144M 121,26
48,3491,23
50575811014140144M 121,38
60,361,51,35
6576,17713014160144M 121,68
8088,99015016190184M 162,63
100108109+1,017016210184***M 163,05
114,3115,52,92
125133134,520018240188M 164,11
139,71413,90
150159160,522520265188M 165,16
168,31704,78
175193,7195,525522295188M 166,27
200219,122128022320188M 166,91
250267269335243751812M 169,53
2732759,04
300323,9326395244402212M 2012,1
350355,6358445264902212M 2017,0
368370,515,6
400406,4409+1,5495285402216M 2020,1
41942218,3
450457,2460,2±5550285952216M 2025,8
500508511600306452220M 2030,0
600609,6612,6705307552520M 2237,9
700711,2714,2810328602524M 2247,9
800812,8815,8920349753024M 2762,9
900914,4917,410203610753024M 2774,6
10001016101911203611753028M 2781,9
* The weight is approximate and calculated on base 7.85 Kg/dm3.
** Raw hole to be worked again according to the real external diameter of the pipe.
*** For oil piping the flange should have 8 holes.
Production Capacity & Purchase Details
1.Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.
2.Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, C21, P235GH, P245GH, P250GH, ASTM A105
3.Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4.Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5.Monthly Output: 3000 tons per Month.
6.Delivery Terms: CIF, CFR, FOB, EXW.
7.Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8.Minimum Order Quantity: 1Ton or 100Pcs.
9.Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10.Find More Requirements In Flanges Market.
