Mini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic Housing
Mini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic Housing
Mini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic Housing
Mini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic Housing
Mini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic Housing
Mini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic Housing
Mini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic Housing
Mini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic Housing
Mini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic Housing
Mini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic Housing
Specifications
Brand Name :
TM
Model Number :
TM53B411SXX12
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union, ,Paypal
Supply Ability :
500K/year
Delivery Time :
15 Days
Packaging Details :
100pcs/tray,5000pcs/carton
Product Type  :
RJ11 Modular Connector
Jack Type :
RJ11
Number of Positions :
6
Terminals per Port :
4
LED Option :
No
Shielded EMI Tabs :
No
Voltage rating :
125 V
Current rating :
1.5 A
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Durrability :
750 CYCLES MIN
Minimal Order :
500pcs
Package :
100pcs/tray,5000pcs/carton
Description

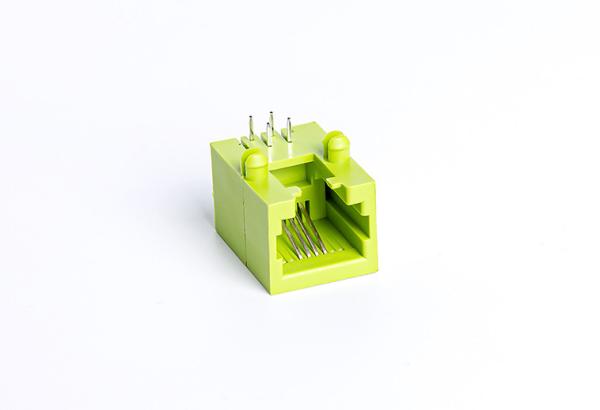

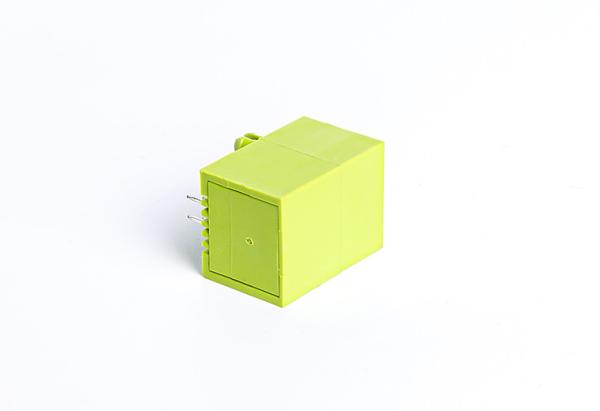

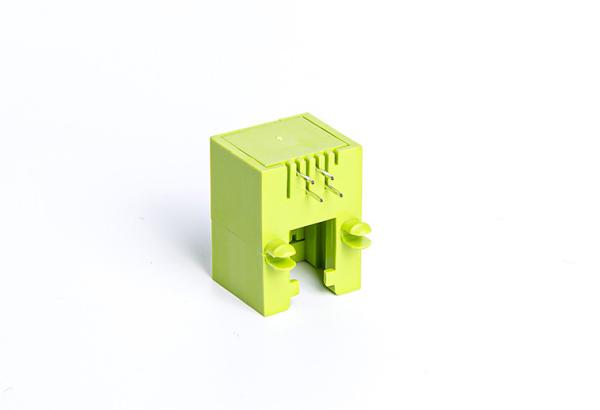

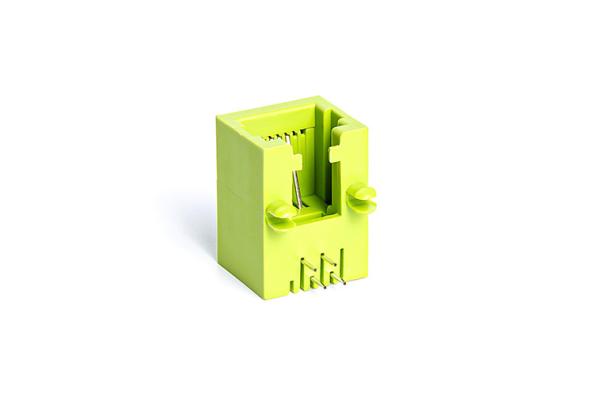

Mini Single Port RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Unshielded Plastic Housing TM53B411SXX12

Materials:
Housing:PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: No
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:
1 x 1 Port / Single Port / One Port
Connector Length: 18.10 mm
Connector Width: 13.40 mm
Connector Height: 11.50 mm
Termimal Solder Pin Length: 3.4 mm
6P4C ( 6 positions 4 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required


RJ11 Without Transformer (TM53B411SXX12) Attributes:

Model: TM53B411SXX12
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 4
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 100pcs/tray,5000pcs/carton
Delivery Time: 15 Days
Supply Ability: 5KK/year

RJ45 Female Connector (TM53B411SXX12) Mechnical Drawing:

Mini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic HousingMini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic HousingMini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic HousingMini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic HousingMini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic HousingMini RJ11 Female Connector Tab Down Side Entry 6 Position 4 Contacts Plastic Housing
