Specifications
Brand Name :
TM
Model Number :
TM55A511EXX11
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
Supportive
Price :
Supportive
Payment Terms :
T/T, Western Union, ,Paypal
Supply Ability :
500K/year
Delivery Time :
15 Days
Packaging Details :
100pcs/tray
LED Option :
No
Product Type  :
RJ11 Modular Connector
Shielded EMI Tabs :
No
Jack Type :
RJ11
Number of Positions :
6
Terminals per Port :
6
Voltage rating :
125 V
Current rating :
1.5 A
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Durrability :
750 CYCLES MIN
Minimal Order :
500pcs
Package :
100pcs/tray
Description

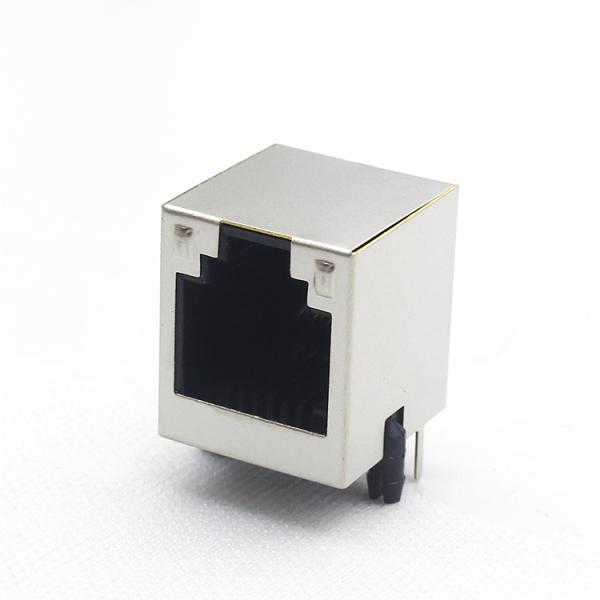

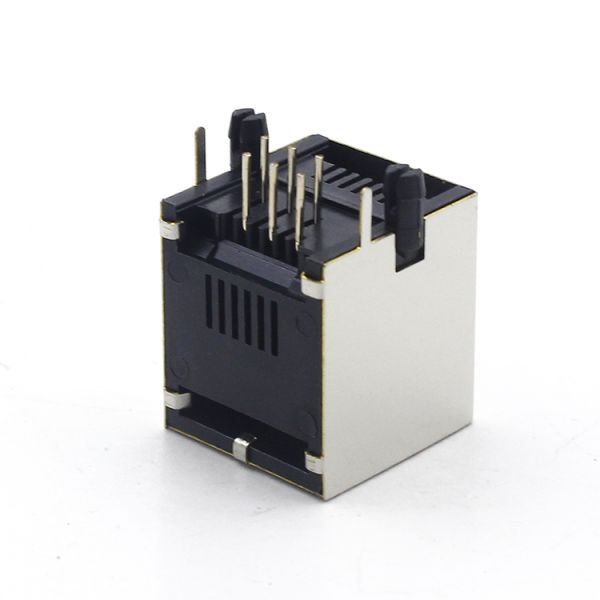

Female RJ45 connector 6P6C rj11 telephone jack adapter modular

Materials:

Housing:PBT,UL94V-0 ( RoHS )

Shielding Shell: With

All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:

RJ11 Modular Jack

1 x 1 Port / Single Port / One Port

Connector Length: 13.2 mm

Connector Width: 12.85 mm

Connector Height: 14.75 mm

Termimal Solder Pin Length: 3.4 mm

6P6C ( 6 positions 6 contacts )

90°Orientation

Without LED, let know the connection status

With Shield,can be customized as required

We Support Custom service as required

RJ11 Without Transformer (TM55A511EXX11) Attributes:

Model: TM55A511EXX11
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Supply Ability: 5KK/year

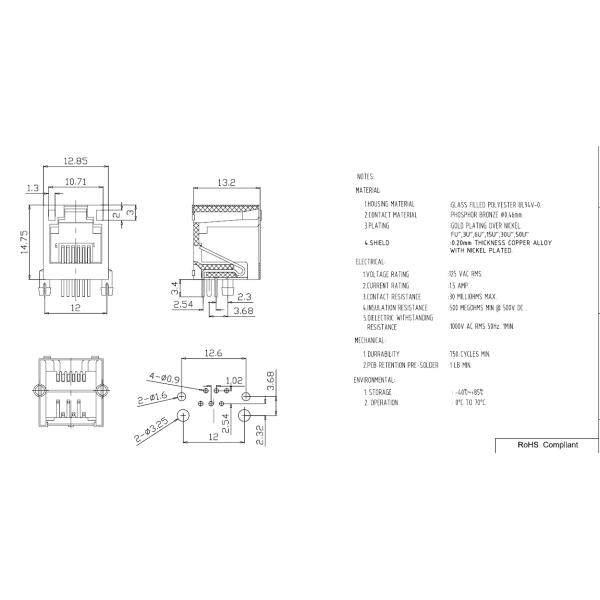

RJ11 Female Connector (TM55A511EXX11) Mechnical Drawing:

1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector

1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector

1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector
