HDMI RJ45 Panel Mount Connector Female To Female Straight Through
HDMI RJ45 Panel Mount Connector Female To Female Straight Through
HDMI RJ45 Panel Mount Connector Female To Female Straight Through
HDMI RJ45 Panel Mount Connector Female To Female Straight Through
HDMI RJ45 Panel Mount Connector Female To Female Straight Through
HDMI RJ45 Panel Mount Connector Female To Female Straight Through
HDMI RJ45 Panel Mount Connector Female To Female Straight Through
HDMI RJ45 Panel Mount Connector Female To Female Straight Through
Specifications
Brand Name :
TM
Model Number :
TMZJT020011
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
500K/year
Delivery Time :
20 Days
Packaging Details :
1pcs/bag
Jack Type :
HDMI
Panel Stop :
Yes
Screw Hole :
Yes
Terminals per Port :
19
LED Option :
No
Shielded EMI Tabs :
No
Voltage rating :
30Vmax
Current rating :
1.5A
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Durrability： :
750 CYCLES MIN
Description

HDMI RJ45 Panel Mount Connector Female To Female Straight Through

HDMI Adapter/Coupler Female To Female Straight Through With Panel & Screw Hole TMZJT020011

HDMI Adapter/Coupler Female To Female Straight Through With Panel & Screw Hole TMZJT020011

HDMI Adapter/Coupler Product Structure:


HDMI Modular Jack
One to one Port
Connector Length: 29 mm
Connector Width: 26 mm
Connector Height: 33 mm
Connector Lock hole spacing: 19*24 mm
19P19C ( 19 positions 19 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

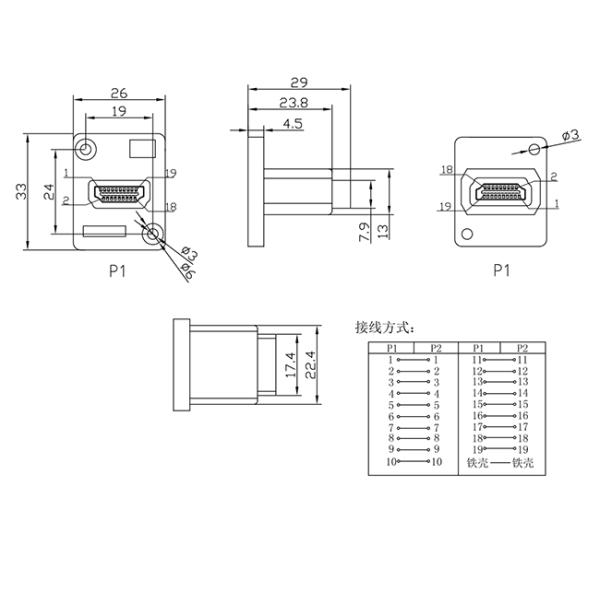

HDMI Adapter/Coupler ( TMZJT020011) Mechnical Drawing:

HDMI RJ45 Panel Mount Connector Female To Female Straight Through
