Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Specifications
Brand Name :
tmulink
Model Number :
TMZTC811SK007207111010
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
500K/year
Delivery Time :
20 Days
Packaging Details :
50pcs/tray,500pcs/case
Product Type :
RJ45 Modular Connector
Jack Type :
RJ45
Number of Positions :
8
Terminals per Port :
8
LED Option :
No
Shielded EMI Tabs :
No
Voltage rating :
125V
Current rating :
1.5 A
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Description

Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer

Cat6e Unshielded Ethernet Connector Rj45 Single Port Adaptor without transformer TMZTC811SK007207111010

Rj45 Single Port Adaptor (TMZTC811SK007207111010)Materials:

Housing : ABS,UL94V-0 ( RoHS )

Contact Finish: T=0.30 mm GOLD PLATING 50U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Rj45 Single Port Adaptor (TMZTC811SK007207111010)Product Structure:
RJ45 Modular Jack
1 x 1 Port / Single Port / CAT6 RJ45 Modular Jack
Connector Length: 30.60 mm
Connector Width: 14.48 mm
Connector Height: 16.13 mm
Termimal Solder Pin Length: 0 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required


Rj45 Single Port Adaptor (TMZTC811SK007207111010) Attributes:

Model: TMZTC811SK007207111010
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year

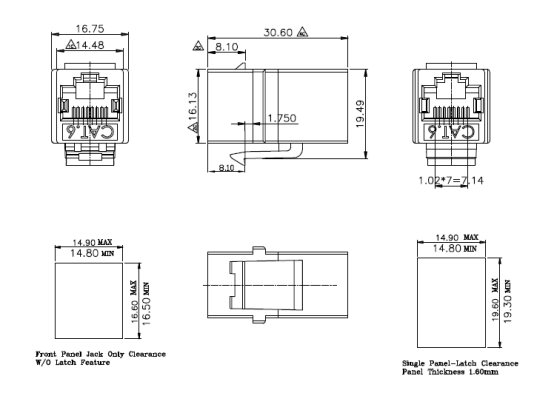

Rj45 Single Port Adaptor (TMZTC811SK007207111010)Mechnical Drawing:

Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
