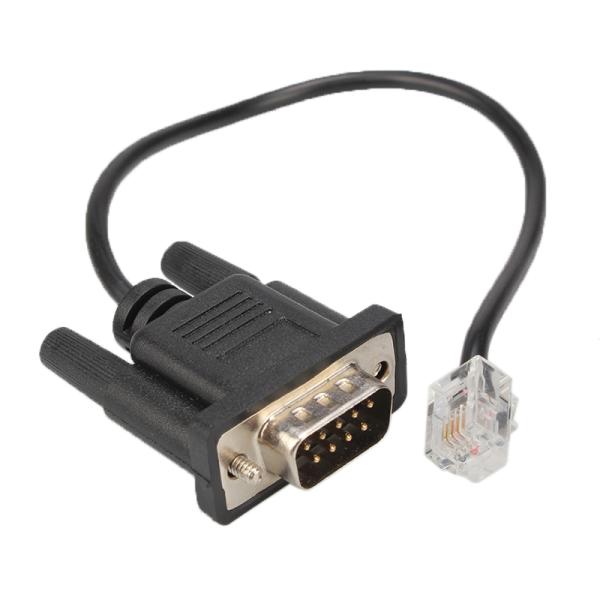

Male RJ9 TO VGA DB9 Network To Video Signal Cable
Male RJ9 TO VGA DB9 Network To Video Signal Cable
Male RJ9 TO VGA DB9 Network To Video Signal Cable
Male RJ9 TO VGA DB9 Network To Video Signal Cable
Male RJ9 TO VGA DB9 Network To Video Signal Cable
Male RJ9 TO VGA DB9 Network To Video Signal Cable
Specifications
Brand Name :
TM
Model Number :
TMCABLE020034
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
100pcs
Price :
Supportive
Supply Ability :
500K/year
Delivery Time :
20 Days
Packaging Details :
50pcs/tray
Product Type  :
RJ9 TO VGA/DB9 CABLE
Jack Type :
RJ9 TO VGA/DB9 CABLE
Number of Positions :
4
Terminals per Port :
4
LED Option :
No
Shielded EMI Tabs :
No
Voltage rating :
125 V
Current rating :
1.5 A
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Durrability :
750 CYCLES MIN
Description

RJ9 Cable Male RJ9 TO VGA/DB9 Network Signal To Video Signal

RJ9 Cable(TMCABLE020034) Attributes:

Model: TMCABLE020034
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ9 TO VGA/DB9 CABLE
Jack Type: RJ9
Number of Positions : 4
Terminals per Port: 4
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 100pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year

Male RJ9 TO VGA DB9 Network To Video Signal Cable

RJ9 Cable(TMCABLE020034) Materials:

VGA Connector Molding: PVC BLACK

RJ9 Connector Molding(Male):PE

CABLE:30AWG*3C OD:4.5±0.2mm BLACK


RJ9 Cable(TMCABLE020034) Product Structure:
RJ9 TO DB9

1 x 1 Port / Single Port / One Port
RJ9 TO DB9 Cable Length: 300±15 mm/Customizable
RJ9 :4P4C ( 4 positions 4 contacts )

DB9 :4P4C ( 9 positions 4 contacts )
180°Orientation
Without LED, let know the connection status
With Dust Cover,can be customized as required
We Support Custom service as required

RJ9 Cable(TMCABLE020034) Mechnical Drawing:

Male RJ9 TO VGA DB9 Network To Video Signal Cable
