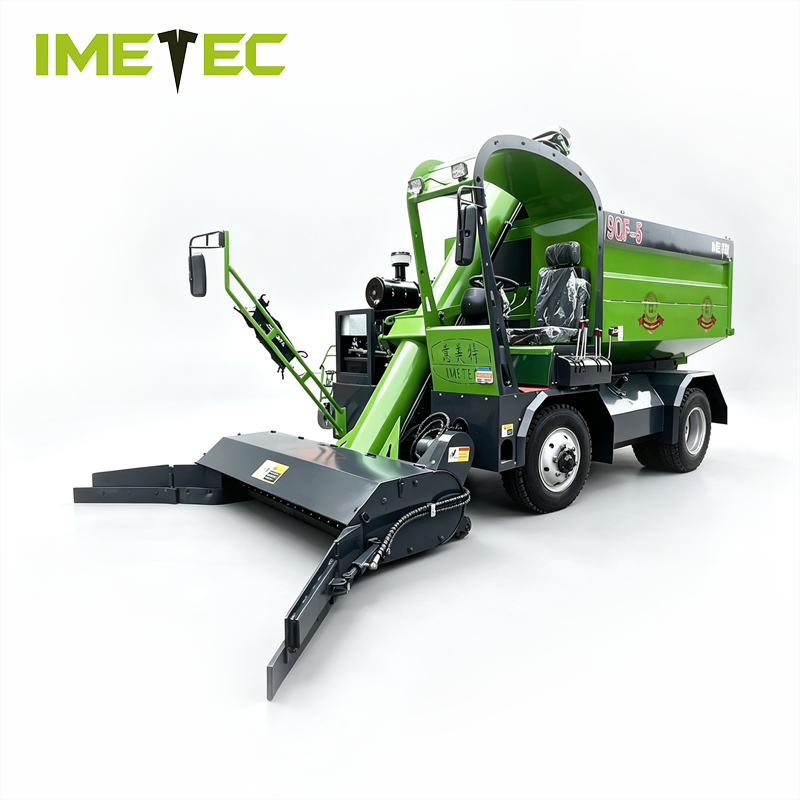

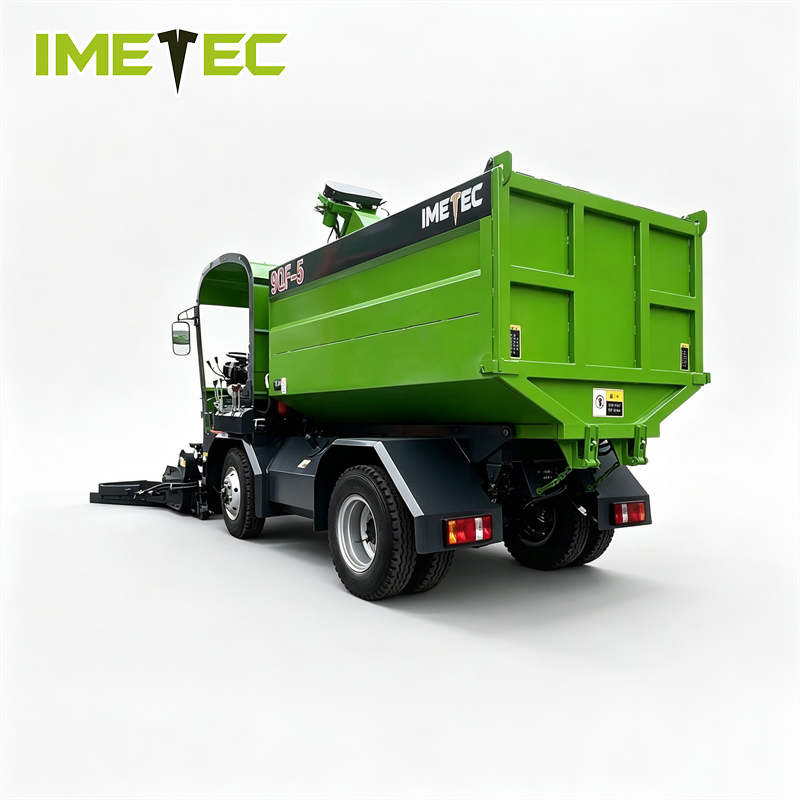

5m³ Self-Propelled Auger Manure Collector
5m³ Self-Propelled Auger Manure Collector
5m³ Self-Propelled Auger Manure Collector
5m³ Self-Propelled Auger Manure Collector
5m³ Self-Propelled Auger Manure Collector
5m³ Self-Propelled Auger Manure Collector
5m³ Self-Propelled Auger Manure Collector
5m³ Self-Propelled Auger Manure Collector
5m³ Self-Propelled Auger Manure Collector
5m³ Self-Propelled Auger Manure Collector
Specifications
MOQ :
1
Dual power options: :
Diesel & Electric Optional Power
Travel Mode: :
Hydraulic CVT, Self-propelled
Payment Terms :
D/A,D/P,T/T
Engine: :
Yunnei 490 Turbo
Transmission: :
Hydraulic Drive
Wheel Count: :
6
Model Number :
9QF
Manure Loading: :
Front Auger Collection + Scraper Chain Conveying
Price :
13000-44000 US dollars
Power: :
56kW / 76HP
Certification :
CE、ISO、EAC
Place of Origin :
TaiAn
Weight (kg): :
≈4560
Supply Ability :
20SETS
Steering: :
Front Steering
L×W×H (mm): :
6100×2000×2600
Brand Name :
IMETEC
Dumping: :
Single-cylinder Self-dumping
Drive Type: :
Front Steer, Rear Drive
Description

Prodect Features:

  • This machine features a front-wheel drive and rear-wheel steering design, which reduces energy consumption and delivers significant energy-saving benefits. The large-capacity model is equipped with a forklift-type axle, enabling exceptionally flexible steering and even zero-turn in-place rotation, greatly improving maneuverability in narrow barn aisles.
  • The core drive system utilizes specially customized heavy-duty chains with outstanding durability, effectively reducing maintenance costs. It is powered by a dedicated engine and a specially matched transmission, ensuring optimal performance and a notably low failure rate.
  • As an integrated automatic manure cleaning unit purpose-built for dairy farms, this machine combines self-loading and self-unloading capabilities into one seamless operation, allowing a single operator to complete the entire process independently. For a 1,000-head dairy farm, the entire manure cleaning task can be finished in just 2 hours — thoroughly solving the long-standing challenge of manure management while dramatically reducing labor costs and boosting operational efficiency.
