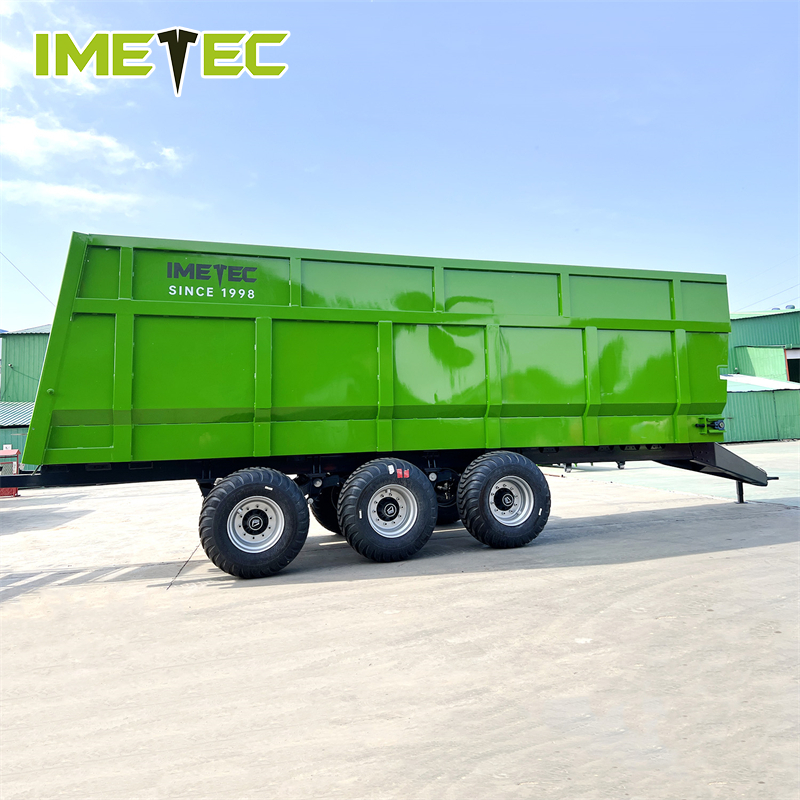

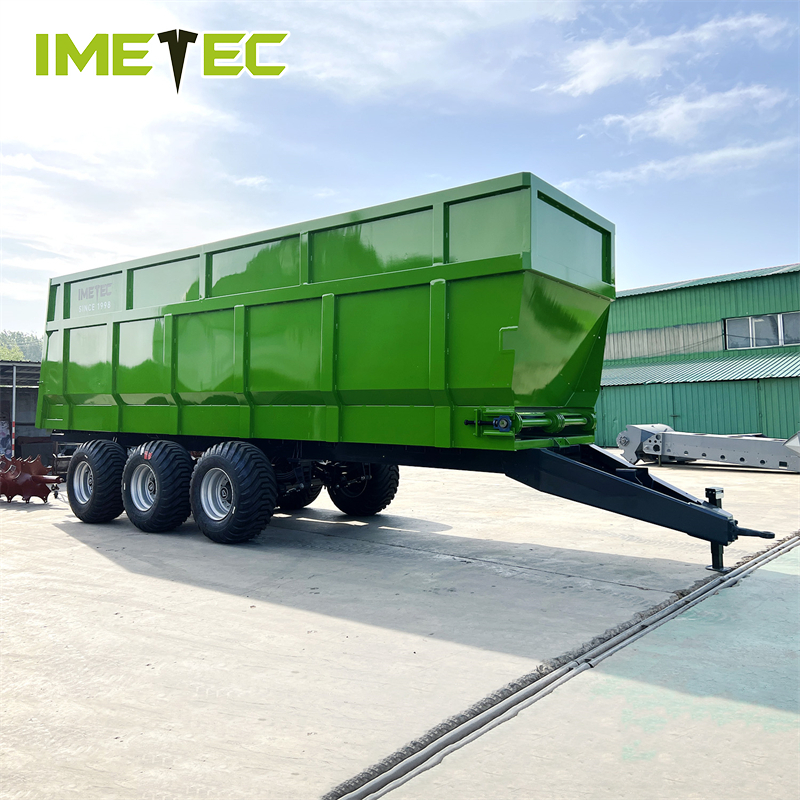

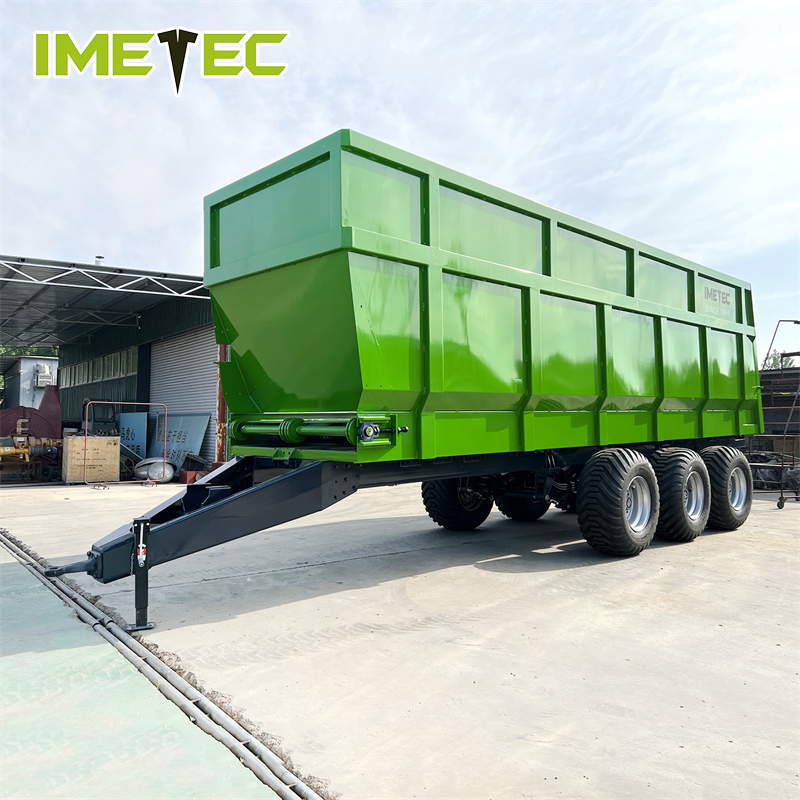

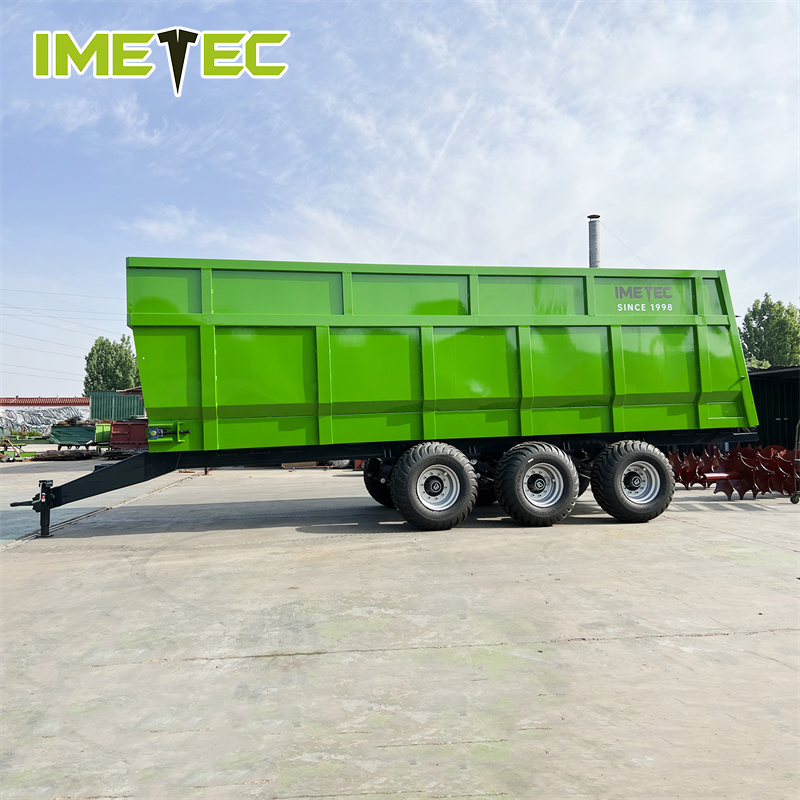

2FGH Series Tractor PTO Driven Manure Spreader Trailer 6‑20CBM Solid Fertilizer Spreading Machine for Farm
2FGH Series Tractor PTO Driven Manure Spreader Trailer 6‑20CBM Solid Fertilizer Spreading Machine for Farm
2FGH Series Tractor PTO Driven Manure Spreader Trailer 6‑20CBM Solid Fertilizer Spreading Machine for Farm
2FGH Series Tractor PTO Driven Manure Spreader Trailer 6‑20CBM Solid Fertilizer Spreading Machine for Farm
2FGH Series Tractor PTO Driven Manure Spreader Trailer 6‑20CBM Solid Fertilizer Spreading Machine for Farm
2FGH Series Tractor PTO Driven Manure Spreader Trailer 6‑20CBM Solid Fertilizer Spreading Machine for Farm
2FGH Series Tractor PTO Driven Manure Spreader Trailer 6‑20CBM Solid Fertilizer Spreading Machine for Farm
2FGH Series Tractor PTO Driven Manure Spreader Trailer 6‑20CBM Solid Fertilizer Spreading Machine for Farm
2FGH Series Tractor PTO Driven Manure Spreader Trailer 6‑20CBM Solid Fertilizer Spreading Machine for Farm
2FGH Series Tractor PTO Driven Manure Spreader Trailer 6‑20CBM Solid Fertilizer Spreading Machine for Farm
Specifications
MOQ :
1
Delivery Time :
5‑8 working days
Transport System :
Heavy Duty Ring Chain Conveyor
Payment Terms :
T/T
Operation Method :
Hydraulic Control
Optional Upgrade :
Galvanized Tank, Different Axle Configurations
Model Number :
FGH
Rear Door Mode :
Hydraulic Lifting Rear Door
Price :
USD 9999‑29999 / unit
Application Material :
Solid Manure, Compost, Organic Fertilizer
Certification :
CE EAC EU ISO
Place of Origin :
China
Supply Ability :
15 Unit / Month
Driving Type :
Tractor PTO Drive
Brand Name :
IMETEC
Packaging Details :
Unpacked
Description

Product Introduction

2FGH series solid manure spreader is a tractor‑trailed agricultural spreading machine, powered by tractor PTO output shaft. It is widely used for spreading solid livestock manure, compost and organic fertilizer on farms and pastures.

Adopt Q355B manganese steel for spreading blades and vertical auger shaft. Equipped with European‑standard high-torque gear reducer, heavy‑duty ring chain conveyor, hydraulic lift rear door. Tank body supports galvanized anti‑corrosion option. Multiple volume models from 6cbm‑20cbm for different farm scale demands.

Product Advantages

  1. Q355B manganese steel material for core working parts, anti‑wear and long service life
  2. European‑standard high‑torque reducer, stable transmission, strong anti‑blocking capacity
  3. Heavy‑duty ring‑chain conveying system, smooth material feeding
  4. Hydraulic lifting rear door, easy for maintenance and cleaning
  5. Spreading width 8‑12m, uniform solid manure spreading performance
  6. Multiple volume options 6‑20cbm, single / double axle optional; galvanized tank available
  7. Factory direct supply, support technical consultation and customization

Application Scenarios

Farmland, pasture, large‑scale breeding farm, organic fertilizer returning‑to‑field, compost spreading operation.

Full Technical Parameters

Item 2FGH‑6 2FGH‑8 2FGH‑10 2FGH‑12 2FGH‑13 2FGH‑16 2FGH‑20
Tank Volume(m³) 6 8 10 13 13 16 20
Matched Tractor Power(HP) 60‑100 60‑100 100‑150 120‑160 120‑160 150‑220 150‑220
PTO Rotation Speed(r/min) 540‑1000 540‑1000 540‑1000 1000 1000 540‑1000 540‑1000
Spreading Width(m) 8‑12 8‑12 8‑12 8‑12 8‑12 8‑12 8‑12
Working Speed(km/h) 6‑20 6‑20 6‑20 6‑20 6‑20 6‑20 5‑20
Transport Max Speed(km/h) ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40
Spreading Efficiency(m³/h) 20‑30 20‑30 20‑30 20‑30 20‑30 20‑30 ≥4hm²/h
Axle Type Single Single Single Single Single Double Double
Reducer Model 5535 5535 5545 5545 5545 5545 5545
Spreading Blade Material Q355B Mn‑steel Q355B Mn‑steel Q355B Mn‑steel Q355B Mn‑steel Q355B Mn‑steel Q355B Mn‑steel Q355B Mn‑steel
Self‑weight(kg) ≥3500 ≥3600 ≥3870 4690 4690 6000 5930
Max Allowable Total Weight(kg) 6500 7600 9000 9000 9000 20000 16000
Overall Dimension L*W*H(mm) 6800*2210*2140 6800*2210*2140 7200*2585*2620 7200*2585*2820 7200*2585*2820 5500*5270*2000 8500*2700*3100
