TMR Feed Mixer Wagon with 540RPM/Min Speed, High-strength Steel Construction, and 21 m³ Effective Mixing Capacity for Livestock
TMR Feed Mixer Wagon with 540RPM/Min Speed, High-strength Steel Construction, and 21 m³ Effective Mixing Capacity for Livestock
TMR Feed Mixer Wagon with 540RPM/Min Speed, High-strength Steel Construction, and 21 m³ Effective Mixing Capacity for Livestock
TMR Feed Mixer Wagon with 540RPM/Min Speed, High-strength Steel Construction, and 21 m³ Effective Mixing Capacity for Livestock
TMR Feed Mixer Wagon with 540RPM/Min Speed, High-strength Steel Construction, and 21 m³ Effective Mixing Capacity for Livestock
TMR Feed Mixer Wagon with 540RPM/Min Speed, High-strength Steel Construction, and 21 m³ Effective Mixing Capacity for Livestock
TMR Feed Mixer Wagon with 540RPM/Min Speed, High-strength Steel Construction, and 21 m³ Effective Mixing Capacity for Livestock
TMR Feed Mixer Wagon with 540RPM/Min Speed, High-strength Steel Construction, and 21 m³ Effective Mixing Capacity for Livestock
TMR Feed Mixer Wagon with 540RPM/Min Speed, High-strength Steel Construction, and 21 m³ Effective Mixing Capacity for Livestock
TMR Feed Mixer Wagon with 540RPM/Min Speed, High-strength Steel Construction, and 21 m³ Effective Mixing Capacity for Livestock
Specifications
Certification :
CE ISO
Weight :
3500 kg
Model Number :
9QL
Mixing Uniformity :
≥95%
MOQ :
1
Packaging Details :
plywood case
Loading Capacity :
12000kgs
Supply Ability :
100sets/year
Price :
10000
Effective Mixing Capacity :
21 m³
Delivery Time :
30days
Brand Name :
IMETEC
Speed :
540RPM/Min
Place of Origin :
TAIAN, SHANDONG, CHINA
Discharge Method :
Side discharge chute
Description

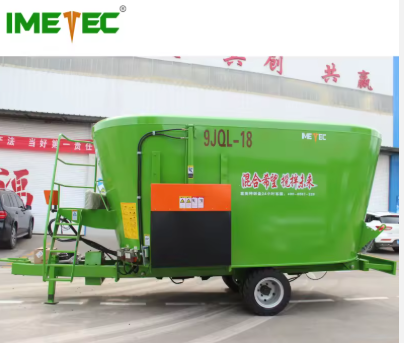

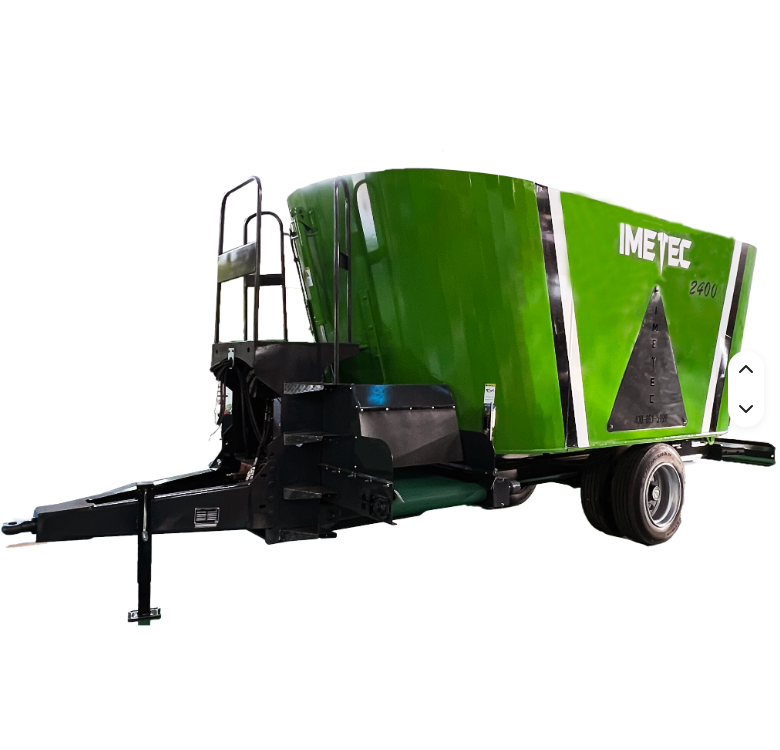

Tractor Pull Type Vertical TMR Feed Mixer Wagon
IMETEC vertical trailed TMR feed mixer is tractor PTO driven pull-type machine. 5-16cbm optional capacity, fitted with manganese steel auger blades and optional digital weighing system. Complete chopping and mixing for silage, hay and concentrate feed. Hydraulic side discharge, CE certified, factory direct supply.
Product Introduction
IMETEC Vertical Trailed TMR Feed Mixer is tractor-pulled, PTO power driven total mixed ration processing machine, widely used for dairy cattle, beef cattle and sheep farms. It can process round bales, square bales, silage, alfalfa hay, straw and concentrated feed without pre-cutting. Integrated chopping, kneading and uniform mixing in one unit. Optional intelligent weighing system ensures accurate feed formula, prevents livestock selective eating, improves feed conversion rate and milk output. Trailed structure can be towed by tractor to different feeding areas, flexible for multi-barn farms.
Main Features
  • Tractor PTO Power Input: Simple connection, no extra diesel engine required, low operation cost

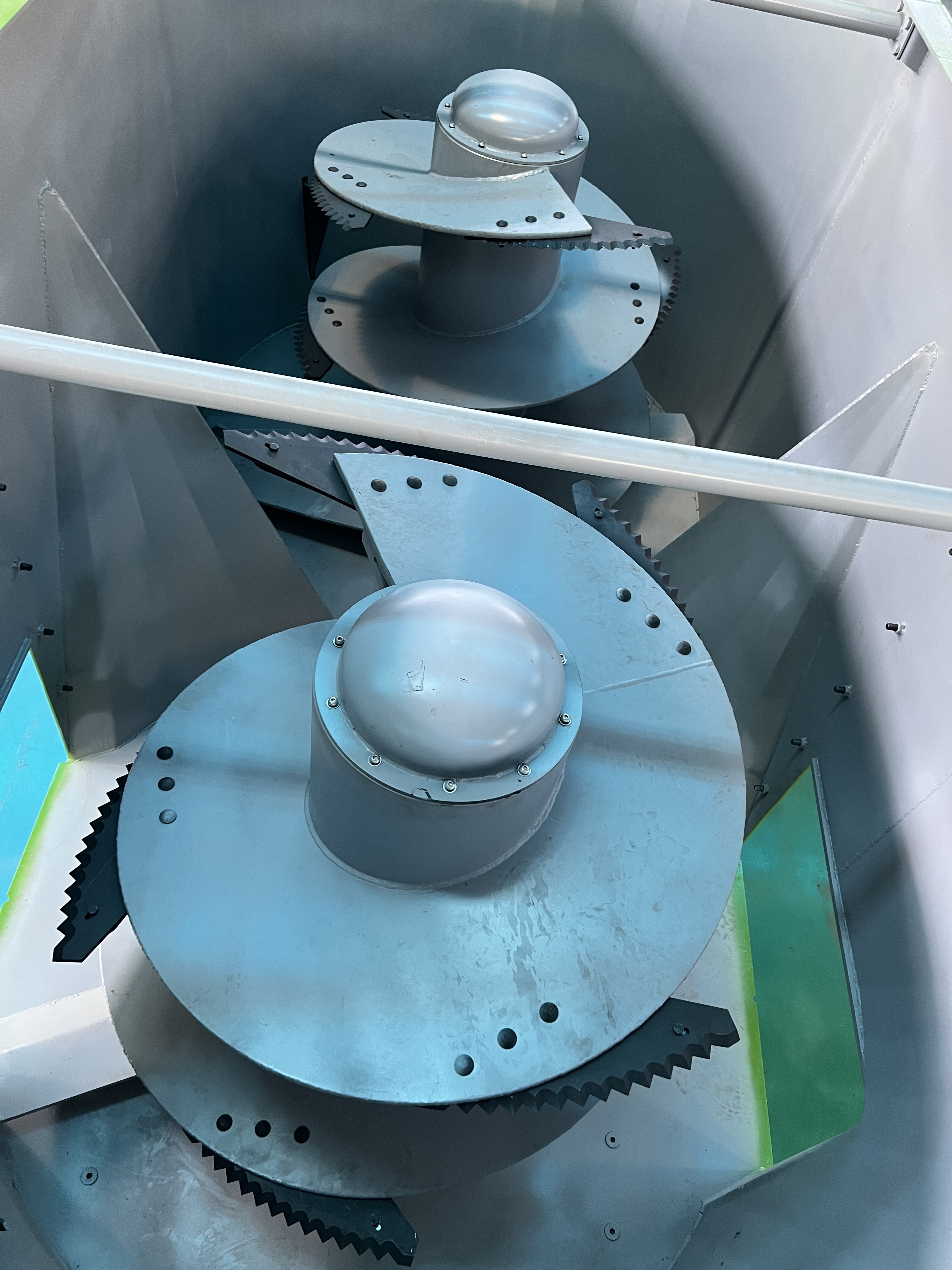

  • Vertical Auger & Wear-resistant Blades: Heat-treated manganese steel / carbide coated blades, strong cutting performance, long service life
  • Optional Digital Weighing System: Real-time weight display, precise batching for scientific farm feeding management
  • Hydraulic Discharge Door: Stable hydraulic system, smooth side discharging, easy operation
  • Heavy-duty Thickened Tank Body: Q345 wear-resistant steel plate, adapt to heavy-load continuous farm work
  • Trailed Mobile Chassis: Solid rubber tires, drawbar for tractor towing, move freely on farm ground
  • Multiple Capacity Options: 5m³, 8m³, 10m³, 12m³, 14m³, 16m³ for different farm scale
  • CE & ISO Certification: Meet global market import requirements
Application Scenarios
Dairy cow farm, beef cattle farm, mutton sheep farm, large-scale ruminant breeding ranch. Raw materials: corn silage, alfalfa, dry hay bales, straw, concentrate feed, mineral & vitamin additives.
Technical Specifications
Specification Details
Power Source Tractor PTO drive
Matching Tractor Power 60-120 HP (depends on volume)
Discharge Mode Hydraulic side discharge
Weighing System Optional
Capacity Range 5-16 CBM
Certification CE, ISO
Our Service
  • OEM & Customized capacity, color, logo are acceptable
  • One-year warranty for whole machine, core components support long-term spare-parts supply
  • Supply machine test report, video inspection before shipment
  • Provide operation manual and online technical guidance
  • Factory direct price, support FOB Qingdao
Welcome to contact us for quotation and farm solution!
