Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
Specifications
Motor :
Chinese Brand
Place of Origin :
TAIAN, SHANDONG, CHINA
Max. Lifting Height :
13.5 m
Model Number :
9tl
Type :
Agricultural Equipment
Travel Speed :
0-30 km/h
Price :
10000
Power Source :
Diesel telescopic forklift
Supply Ability :
100sets/year
Name :
All Terrain 4WD 4WS Telescopic Forklift Crab Steering Telehandler 4 Ton for Muddy Slope Ground
MOQ :
1
Delivery Time :
30days
Function :
Lifting or loading materials
Payment Terms :
T/T
Mobility :
Mounted on wheels for towing telescopic forklift
Weight :
Varies by model 7/14/18meter
Certification :
CE ISO
Machine Weight :
10,800 kg
Engine Power :
81 kW
Rated Load Capacity :
4,000 kg (4 Ton)
Brand Name :
IMETEC
Dimensions :
Dependent on model (length, width, height)
Max. Forward Reach :
9.5 m
Packaging Details :
plywood case
Description
Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
Product Overview

The WSC1440 warehouse telescopic forklift is engineered to maximize efficiency in logistics and warehousing operations. With a 13.5-meter lifting height, it handles high-bay stacking that conventional forklifts cannot reach, while the 9.5-meter forward reach loads and unloads containers from the side without repositioning. The compact 2.42-meter width and four-wheel steering allow operation in narrow warehouse aisles, and the quick-attach system switches between pallet forks, container rams, and paper roll clamps to handle diverse cargo types.

Technical Specifications
Parameter Specification
Model WSC1440
Rated Load Capacity 4,000 kg (4 Ton)
Max. Lifting Height 13.5 m
Max. Forward Reach 9.5 m
Machine Weight 10,800 kg
Overall Length 6.08 m
Overall Width 2.42 m
Overall Height 2.70 m
Engine Power 81 kW
Engine Brand Perkins / Yuchai (optional)
Drive Type 4-Wheel Drive / 4-Wheel Steering
Travel Speed 0–30 km/h
Traction Force 70.5 kN
Fuel Tank (Diesel) 140 L
Hydraulic Oil Tank 180 L
Control System Pilot-operated single joystick
Emission Standard Stage III / Stage IV (Tier 3 / Tier 4)

Customizable configurations: load capacity 2–5 tons; lifting height 6–18 m.

Key Features & Advantages
  • High-Bay Stacking: 13.5 m lifting height enables double-deep and high-bay racking operations, maximizing warehouse vertical storage capacity.
  • Container Side Loading: 9.5 m forward reach allows direct loading and unloading of 20ft and 40ft containers from the side, reducing handling time and equipment movement.
  • Narrow Aisle Maneuverability: 2.42 m overall width with four-wheel steering and crab mode enables operation in aisles as narrow as 3.5 m, optimizing warehouse layout density.
  • Multi-Cargo Handling: Quick-change attachments handle pallets, bulk bags, paper rolls, steel coils, and oversized cargo with dedicated tools for each load type.
  • Fast Cycle Times: Hydrostatic transmission and responsive hydraulic system deliver quick lift/lower cycles, increasing throughput in high-volume logistics operations.
Applications
  • High-bay warehouse stacking and order picking
  • Container loading and unloading at depots and ports
  • Cross-docking and transshipment operations
  • Lumber yard and pipe storage stacking
  • Third-party logistics (3PL) facility operations

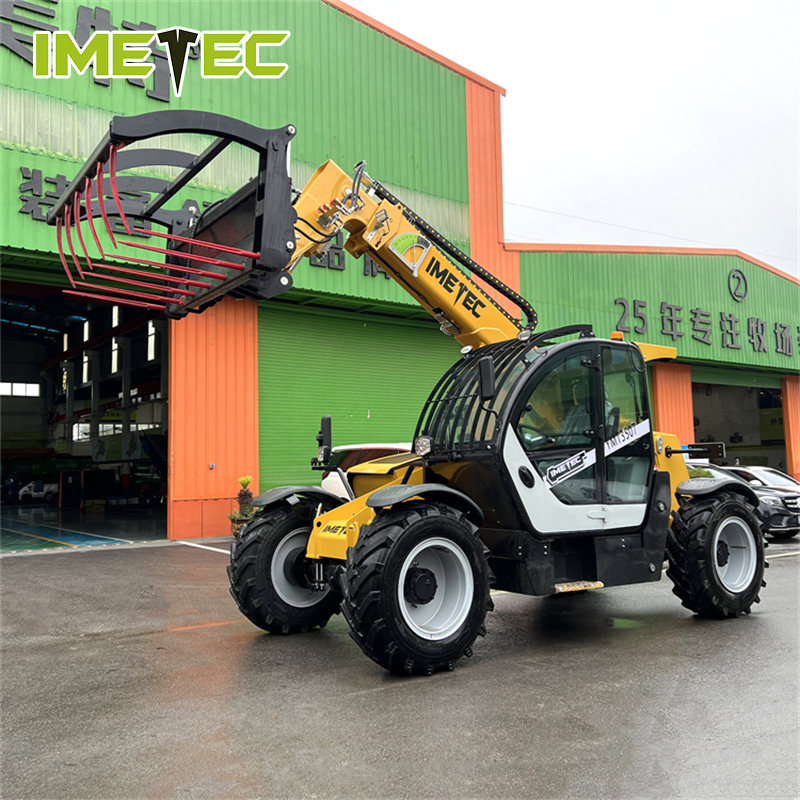

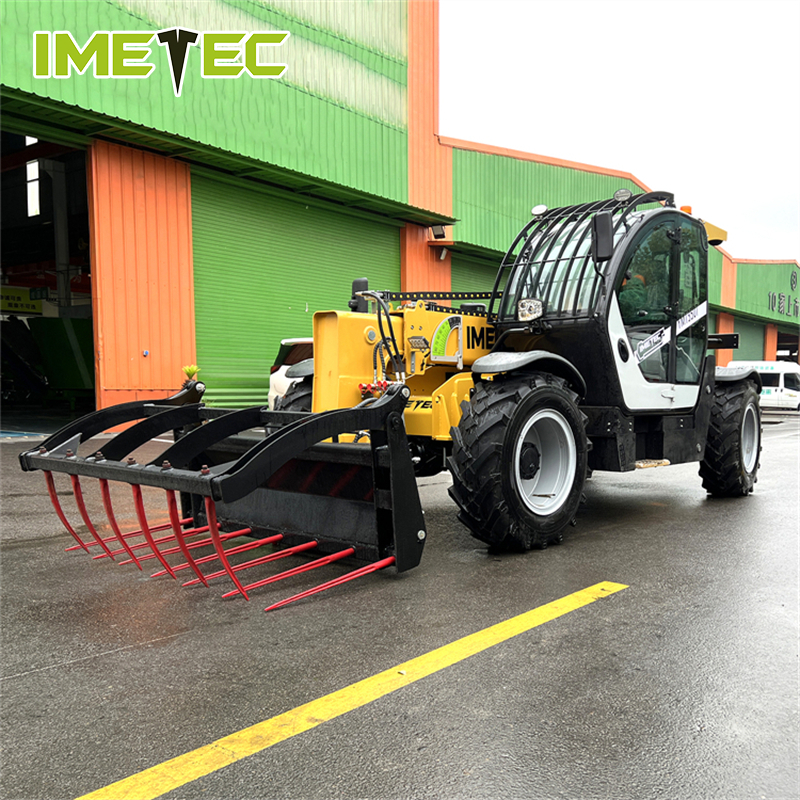

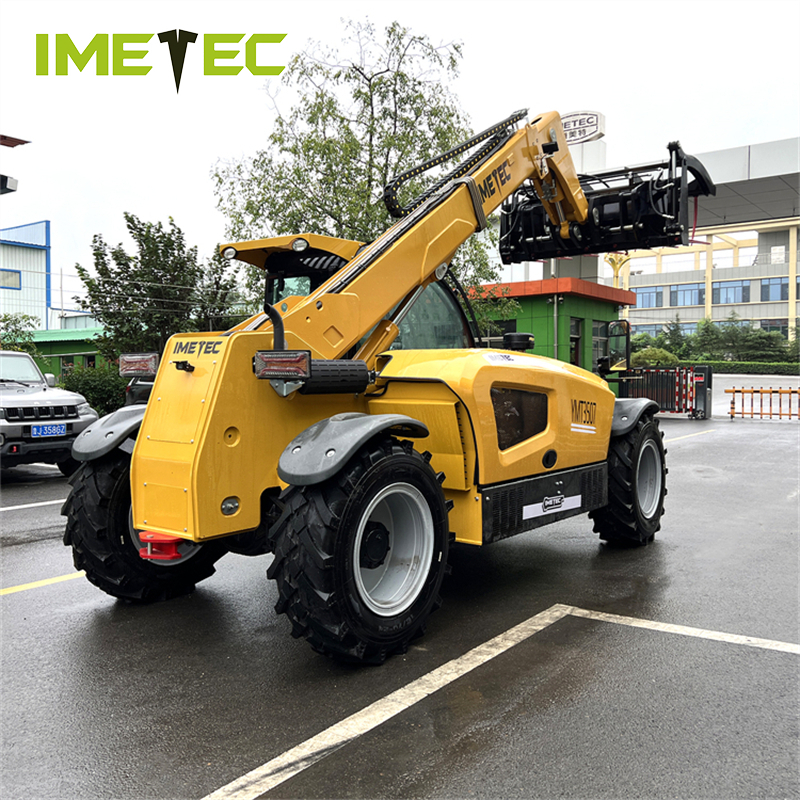

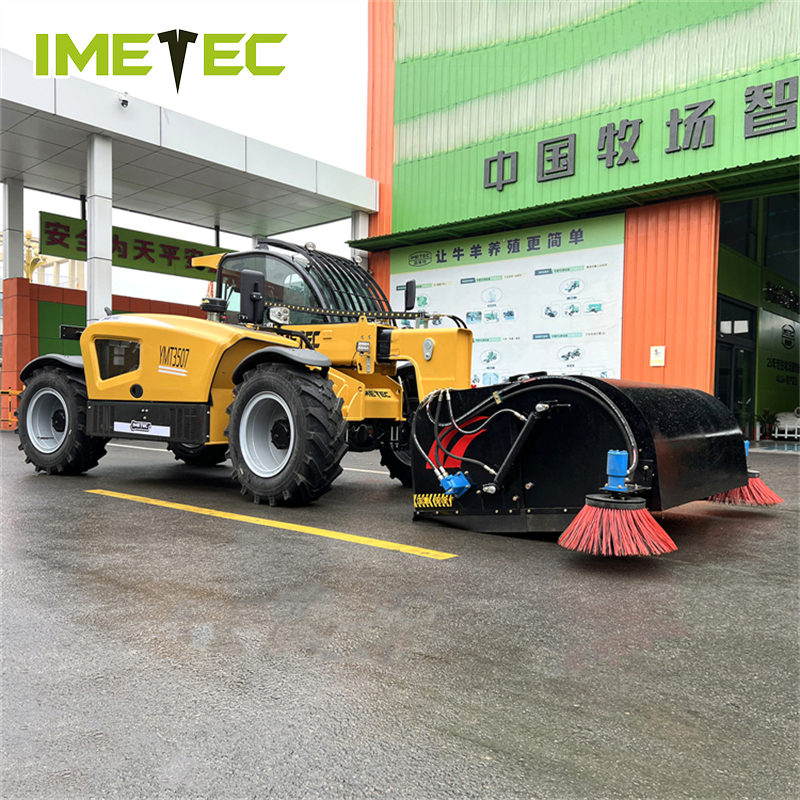

Product Gallery
Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking Warehouse Telescopic Forklift Logistics Telehandler 4 Ton 13.5m for Container Loading High Bay Stacking
