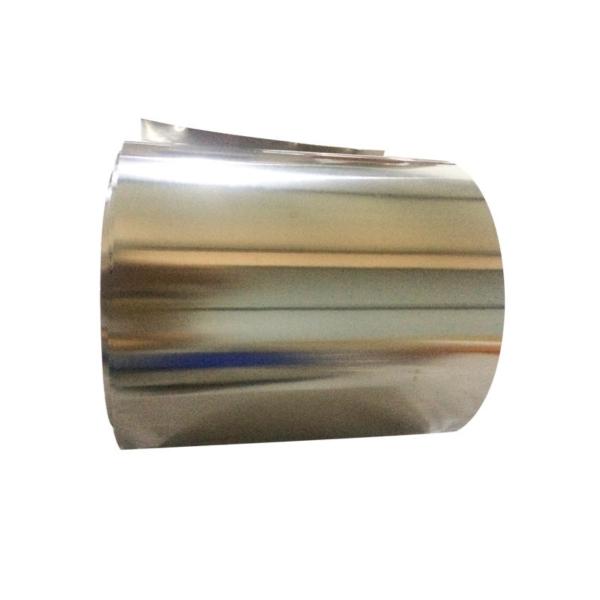

0.01mm 0.02mm 0.03mm Pure Titanium Rolled Gr1 Gr2 Gr5 Thin Titanium Sheet For AMedical Devices
0.01mm 0.02mm 0.03mm Pure Titanium Rolled Gr1 Gr2 Gr5 Thin Titanium Sheet For AMedical Devices
0.01mm 0.02mm 0.03mm Pure Titanium Rolled Gr1 Gr2 Gr5 Thin Titanium Sheet For AMedical Devices
0.01mm 0.02mm 0.03mm Pure Titanium Rolled Gr1 Gr2 Gr5 Thin Titanium Sheet For AMedical Devices
Specifications
Brand Name :
BaseTi
Model Number :
TBC002
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
12~20 days
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Packaging :
Standard export package with moisture-proof or as required
Certifications :
ISO 9001, AS9100
Grade :
Gr1, Gr2, Gr5
Production standards :
ASTM B265, ASTM F67
Tolerance :
Thickness: ±0.005mm, Width: ±0.2mm
Rolling process :
Hot Rolling, Cold Rolling
Surface process :
Pickled, Polished, Annealed
Size :
Thickness: 0.01mm-0.2mm; Width: 50mm-300mm
Description

0.01mm 0.02mm 0.03mm Pure Titanium Foil, Gr1, Gr2, Gr5 Titanium Alloy Foil, For Aerospace, Medical Devices, Electronics

High Purity Titanium Foil - OVERVIEW

*If you have any requirements for customized titanium coil/foil, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

Titanium coil&foil specifications & parameters
Product name 0.01mm0.02mm 0.05 0.08mm
Application field Aerospace, Medical Devices, Chemical Processing, Electronics
Available size Thickness: 0.01mm-0.2mm; Width: 50mm-300mm
Grade Grade 1, Grade 2, Grade 5
Production stadards ASTM B265, ASTM F67, ASTM F136
Tolerance ± 0.01mm for thickness, ± 1mm for width
Rolling process Cold Rolled, Hot Rolled
Surface process Annealed, Polished
Delivery time 12-16days
Key Words

High Purity Titanium Foil, Aerospace, Medical Devices, Chemical Processing, Electronics, Renewable Energy

Pure Titanium Foil - SOLUTIONS

Pure Titanium Foil: Applications, Roles, and Solutions
Pure Titanium Foil is a marvel of materials engineering with a wide range of applications. Here, we'll explore its uses in various fields, providing insight into why it's becoming the go-to material for numerous industries.

  • Aerospace Industry

In the aerospace industry, the strength-to-weight ratio of Pure Titanium Foil is unmatched. BaseTi's Pure Titanium Foil is used in aircraft construction for heat shields, exhausts, and various skin panels due to its low density and high thermal stability.

  • Medical Devices

Pure Titanium Foil, with its biocompatibility and corrosion resistance, is ideal for surgical implants, dental crowns, and prosthetic applications. BaseTi offers medically graded foils for these specific needs.

  • Electronics

When it comes to electronic products, the foil is used as a conductive layer in flexible printed circuit boards and batteries. Its anti-corrosive properties ensure the longevity of electronic devices.

  • Chemical Processing

In corrosive environments often found in chemical processing plants, Pure Titanium Foil is the material of choice for lining tanks and pipes, offering excellent resistance to a wide range of chemicals.

  • Energy Sector

BaseTi's Pure Titanium Foil is crucial in the energy sector for applications like photovoltaic cell components and fuel cell membranes, due to its high electrical conductivity and corrosion resistance.

0.01mm 0.02mm 0.03mm Pure Titanium Rolled Gr1 Gr2 Gr5 Thin Titanium Sheet For AMedical Devices

Physical Properties of Purity Titanium Foil
Grade Density (g/cm³) Melting Point (°C) Boiling Point (°C)
Young's Modulus (GPa)
 Thermal Conductivity (W/m·K)
Gr1 4.51 1,668 3,287 116 21.9
Gr2 4.50 1,670 3,280 114 21.8
Gr3 4.49 1,672 3,275 112 21.7
Gr4 4.48 1,675 3,270 110 21.5
Gr5 4.43 1,680 3,265 115 22.0
Chemical Composition of Titanium Foil by Grade
Grade Titanium (%) Iron (Fe) Oxygen (O)
Carbon (C)
 Nitrogen (N) Hydrogen (H)
Gr1 Bal. ≤ 0.20 ≤ 0.18 ≤ 0.08 ≤ 0.03 ≤ 0.015
Gr2 Bal. ≤ 0.30 ≤ 0.25 ≤ 0.10 ≤ 0.03 ≤ 0.015
Gr3 Bal. ≤ 0.30 ≤ 0.35 ≤ 0.10 ≤ 0.05 ≤ 0.015
Gr4 Bal. ≤ 0.50 ≤ 0.40 ≤ 0.10 ≤ 0.05 ≤ 0.015
Gr5 Bal. ≤ 0.40 ≤ 0.20 ≤ 0.10 ≤ 0.05 ≤ 0.015

Note: BaseTi offer customization to meet your specific chemical composition requirements.
