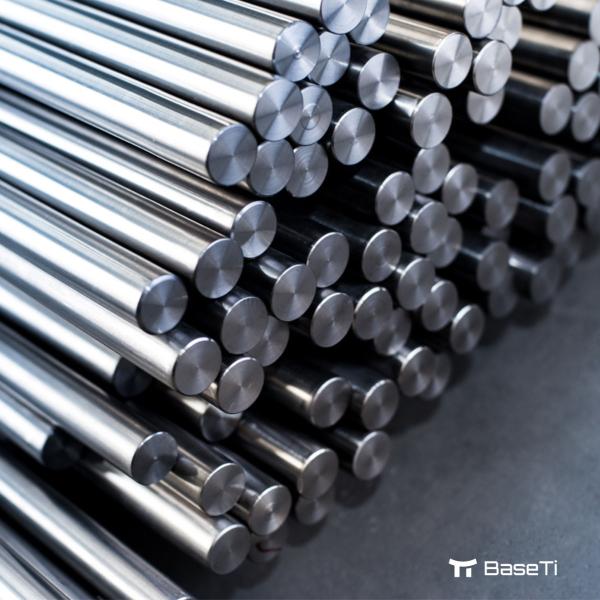

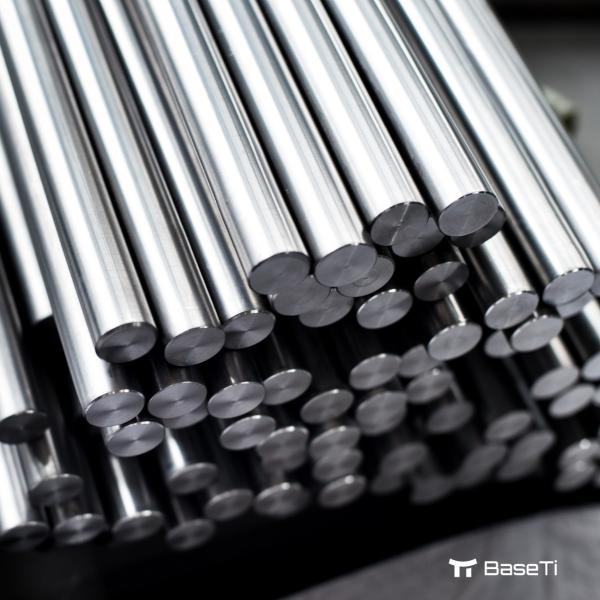

Grade 5 Grade 2 Polished Titanium Rod Ti 6al 4v Titanium Bars Round For Dental Implants
Grade 5 Grade 2 Polished Titanium Rod Ti 6al 4v Titanium Bars Round For Dental Implants
Grade 5 Grade 2 Polished Titanium Rod Ti 6al 4v Titanium Bars Round For Dental Implants
Grade 5 Grade 2 Polished Titanium Rod Ti 6al 4v Titanium Bars Round For Dental Implants
Specifications
Brand Name :
BaseTi
Model Number :
TYB15
Certification :
ISO 9001, AS9100
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
12~20 days
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Application :
Orthopedic implants, dental implants, surgical instruments
Processing Equipment :
CNC lathe, Grinding machine
Production standards :
ASTM F136, ASTM F67, ISO 5832
Grade :
Ti-6Al-4V ELI, Grade 5, Grade 2
Tolerance :
h9, h11, h13, k9, k11, k13
Mechanical Properties: :
Tensile strength, Yield strength, Elongation
Rolling process :
Hot rolled, cold rolled
Surface process :
Polished, pickled, sandblasted
Size :
Diameter 3mm-300mm, Length up to 6000mm
Packaging :
Standard export packaging or customized
Description

Grade 5, Grade 2 Ti-6Al-4V ELI, Titanium Round Bars Rods For Medical Orthopedic, Dental Implants, Surgical Instruments

Titanium Round Bars - Overview

*If you have any requirements for customized titanium round bar & rod, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

Titanium round bar specifications & parameters

Product name

Titanium round bar & rod

Application field

Orthopedic implants, dental implants, surgical instruments

Available size

Diameter 3mm-300mm, Length up to 6000mm

Grade

Ti-6Al-4V ELI, Grade 5, Grade 2

Production stadards

ASTM F136, ASTM F67, ISO 5832

Tolerance

h9~h11

Rolling process

Hot Rolling, Cold Rolling

Surface process

Polished, Peeled, Bright

Delivery time

12-15days

Titanium bar

key words

  • Titanium Factory

  • Titanium Manufacturer

  • Titanium Supplier

Titanium Round Bar - Applications & Solutions

Titanium round bars are indispensable in the medical field, offering a range of solutions across key grades such as Ti-6Al-4V ELI, Grade 5, and Grade 2. These grades are highly sought after for their unique combination of strength, corrosion resistance, and biocompatibility.

Ti-6Al-4V ELI
Density: 4.43 g/cm³
Tensile Strength: 950-1000 MPa
Applications: This grade is primarily used for orthopedic implants like hip and knee replacements.
BaseTi Advantage: BaseTi's Ti-6Al-4V ELI bars are rigorously tested and FDA-approved, ensuring unparalleled quality and safety.


Grade 5
Density: 4.43 g/cm³
Tensile Strength: 950-1000 MPa
Applications: Grade 5 is commonly used for dental implants and surgical instruments.
BaseTi Advantage: Our Grade 5 bars are certified for dental applications, ensuring reliability and performance.


Grade 2
Density: 4.5 g/cm³
Tensile Strength: 370-530 MPa
Applications: Widely used for surgical staples and pins due to its excellent balance of strength and ductility.
BaseTi Advantage: BaseTi offers custom solutions in Grade 2 bars to meet the specific needs of the medical industry.

Grade 5 Grade 2 Polished Titanium Rod Ti 6al 4v Titanium Bars Round For Dental Implants

Physical Properties of Titanium Round Bar

From an industry expert's perspective, understanding the physical properties of titanium round bars is crucial for selecting the right material for specific medical applications. Below is a table that outlines these properties for the grades Ti-6Al-4V ELI, Grade 5, and Grade 2.

Grade

Density (g/cm³)

Melting Point (°C)

Tensile Strength (MPa)

Yield Strength (MPa)

Elongation (%)

Hardness (HV)

ASTM/ISO Standard

Ti-6Al-4V ELI

4.43

1660

950-1000

880-895

14-15

330-340

ASTM F136, ISO 5832

Grade 5

4.43

1660

950-1000

880-895

14-15

330-340

ASTM F136, ISO 5832

Grade 2

4.5

1670

370-530

275-450

20-25

200-220

ASTM F67, ISO 5832
