Specifications
Brand Name :
BaseTi
Model Number :
TYB26
Certification :
Material test reports available upon request.
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
12~20 days
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Biocompatibility :
All grades used are biocompatible and FDA approved for medical use.
Quality Control: :
Rigorous quality control measures including X-ray, ultrasound testing.
Processing Equipment :
CNC Lathe, Rolling Mill, Annealing Furnace
Production standards :
ASTM F136, ASTM F67, ISO 5832.
Surface process :
Polished, Pickled
Rolling process :
Hot rolling for larger diameters, cold rolling for smaller diameters.
Grade :
Ti-6Al-4V (Grade 5), Ti-6Al-7Nb, and Commercially Pure Titanium (Grade 2, Grade 4).
Tolerance :
h9-h11, according to ASTM standards.
Packaging :
Standard export packaging or customized.
Description

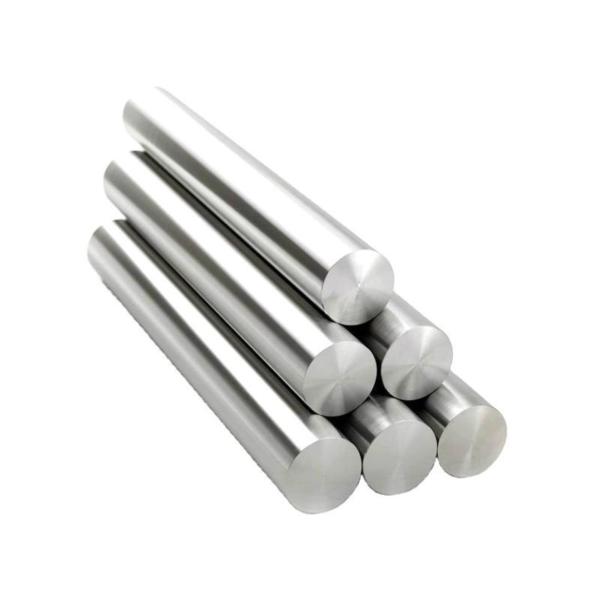

Grade 2, Grade 4, Grade 5, Orthopedic Titanium Round Bar Titanium Rod For Medical Use In Bone Screws, Joint Replacements

Orthopedic Titanium Round Bars - Overview

*If you have any requirements for customized titanium round bar & rod, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

Titanium round bar specifications & parameters

Product name

Titanium round bar & rod

Application field

Orthopedic implants, bone screws, joint replacements

Available size

Diameter 6-50mm, Length up to 3000mm

Grade

Ti-6Al-4V (Grade 5), Ti-6Al-7Nb, and Commercially Pure Titanium (Grade 2, Grade 4).

Production stadards

ASTM F136, ASTM F67, ISO 5832.

Tolerance

Diameter ±0.05mm, Length ±1mm

Rolling process

Hot rolling for larger diameters, cold rolling for smaller diameters.

Surface process

Polished, pickled

Delivery time

15-20days

Orthopedic Titanium Round Bar - Solutions

The orthopedic industry is continuously evolving, with a growing need for materials that offer strength, durability, and biocompatibility. Titanium round bars have emerged as a crucial component in this sector, particularly in the manufacturing of orthopedic implants, bone screws, and joint replacements. At BaseTi, we specialize in providing high-quality titanium bars that meet the stringent requirements of the medical field.

  • Key Applications

Orthopedic Implants: Our Grade 5 Titanium bars are known for their excellent strength-to-weight ratio and corrosion resistance, making them ideal for long-term implants like hip and knee replacements.


Bone Screws: Grade 2 Titanium bars from BaseTi offer excellent machinability and are commonly used in bone screws that require precise dimensions and high corrosion resistance.


Joint Replacements: Grade 4 Titanium bars are used in joint replacements due to their high tensile strength and excellent biocompatibility.

  • Industry Data

According to recent studies, the global market for orthopedic implants is expected to reach $6.5 billion by 2025. Titanium bars, particularly those from BaseTi, are poised to capture a significant market share due to their superior properties and compliance with medical standards like ASTM F136 and ASTM F67.


Why Choose BaseTi?
As a leading titanium manufacturer and supplier, BaseTi offers a range of titanium bars that adhere to stringent production standards. Our state-of-the-art processing equipment ensures that our products meet the highest quality and tolerance standards.

BaseTi's titanium bars offer a comprehensive solution for orthopedic applications, meeting the industry's stringent requirements for strength, durability, and biocompatibility. As a trusted titanium manufacturer and supplier, we are committed to delivering products that stand up to the challenges of modern orthopedic engineering.

Grade 2 Grade 4 Round Bar Titanium Orthopedic Ti6al4v Titanium Alloy

Physical Properties of Orthopedic Titanium Bar

Grade

Standard

Tensile Strength (MPa)

Yield Strength (MPa)

Elongation (%)

Hardness (HV)

Ti-6Al-4V (Grade 5)

ASTM F136, ISO 5832

930-1000

860-910

10-15

334-352

Ti-6Al-7Nb

ASTM F136, ISO 5832

900-960

830-880

12-18

320-340

Commercially Pure Titanium (Grade 2)

ASTM F67, ISO 5832

345-450

275-410

20-28

120-140

Commercially Pure Titanium (Grade 4)

ASTM F67, ISO 5832

550-620

485-530

15-20

200-220

Chemical Properties of Orthopedic Titanium Bar

Understanding the chemical properties of titanium round bars is crucial for their application in the medical field. These bars are manufactured to meet specific industry standards, ensuring their suitability for various medical applications. In this guide, we will delve into the chemical properties of titanium round bars, focusing on Ti-6Al-4V (Grade 5), Ti-6Al-7Nb, and Commercially Pure Titanium (Grade 2, Grade 4).

Grade

Standard

Al (%)

V (%)

Nb (%)

Fe (%)

O (%)

C (%)

N (%)

H (%)

Ti-6Al-4V (Grade 5)

ASTM F136, ISO 5832

5.5-6.75

3.5-4.5

-

0.3

0.2

0.08

0.05

0.015

Ti-6Al-7Nb

ASTM F136, ISO 5832

5.5-6.5

-

6.5-7.5

0.25

0.13

0.08

0.05

0.015

Commercially Pure Titanium (Grade 2)

ASTM F67, ISO 5832

-

-

-

0.3

0.18

0.08

0.03

0.015

Commercially Pure Titanium (Grade 4)

ASTM F67, ISO 5832

-

-

-

0.5

0.4

0.1

0.05

0.015

Why Choose Titanium Bars for Medical Applications?

Titanium bars are known for their excellent corrosion resistance, biocompatibility, and low toxicity, making them ideal for medical applications. These bars are manufactured by BaseTi, adhering to stringent industry standards like ASTM F136, ASTM F67, and ISO 5832.
