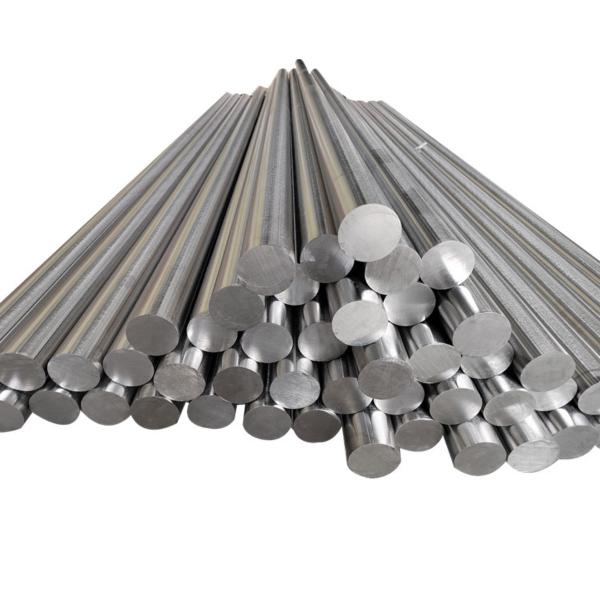

Cold Hot Rolled Pure Titanium Rod Medical Titanium 6000mm For Aerospace
Cold Hot Rolled Pure Titanium Rod Medical Titanium 6000mm For Aerospace
Cold Hot Rolled Pure Titanium Rod Medical Titanium 6000mm For Aerospace
Cold Hot Rolled Pure Titanium Rod Medical Titanium 6000mm For Aerospace
Specifications
Brand Name :
BaseTi
Model Number :
TYB02
Certification :
ISO 9001, AS9100
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
12~20 days
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Production standards :
ASTM B348, ASME SB348, ASTM F67
Grade :
Grade 1, Grade 2, Grade 3, Grade 4
Tolerance :
h9-h11, as per ASTM standards
Rolling process :
Hot rolled, cold rolled
Surface process :
Polished, pickled, sandblasted
Size :
Diameter range 6-200 mm, Length up to 6000 mm
Chemical Composition :
Typically >99% Titanium
Heat Treatment :
Optional, based on application
Description

ASTM B348, ASME SB348, ASTM F67 Titanium Round Bar Rods For Aerospace, Medical, Automotive, Industrial Cold Hot Rolled

Titanium Round Bars - Overview

*If you have any requirements for customized titanium round bar & rod, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

Titanium round bar specifications & parameters
Product name Titanium round bar & rod
Application field Aerospace, Automotive, Medical, Chemical Processing, Desalination, Construction
Available size Diameter 6-200 mm, Length up to 6000 mm
Grade Grade 1, Grade 2, Grade 3, Grade 4
Production stadards ASTM B348, ASME SB348, ASTM F67
Tolerance h9-h11, as per ASTM standards
Rolling process Hot rolled, cold rolled
Surface process Polished, pickled, sandblasted
Delivery time 13-15days

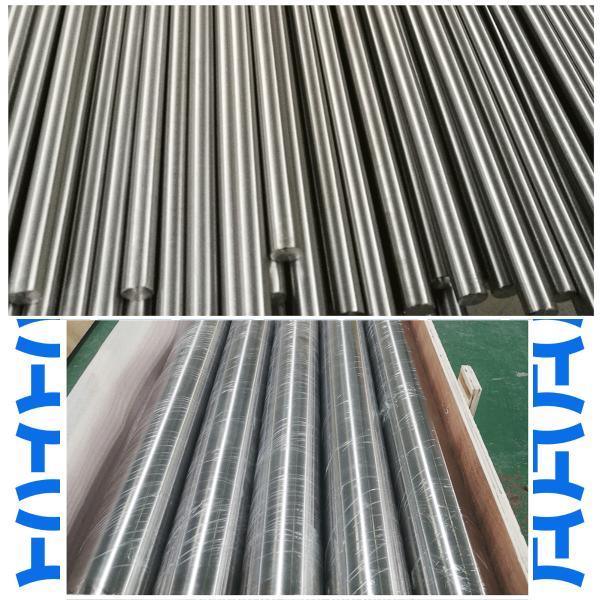

Titanium bar

key words

 Titanium Round Bar, ASTM B348, ASME SB348, ASTM F67, Grade 1, Grade 2, Grade 3, Grade 4, Chemical Properties

Titanium Round Bar Applications & Solutions

Pure Titanium Round Bar: The Ultimate Solution Across Grades 1, 2, 3, and 4
Introduction
Titanium, a metal known for its strength and versatility, has seen extensive use across numerous industries. The aerospace, automotive, medical, and industrial sectors have all capitalized on titanium's unique properties, particularly in the form of pure titanium round bars.

In this comprehensive guide, we'll delve into how BaseTi's pure titanium round bars, especially in Grades 1, 2, 3, and 4, offer specialized solutions to meet the industry demands.

The Titanium Industry by Numbers
The global titanium market is projected to reach $6.6 billion by 2025, growing at a CAGR of 3.9%. The burgeoning demand for Commercially Pure Titanium Bar is a testament to its performance and adaptability.

  • Application Fields

Gr 1
Grade 1 pure titanium bars are the most ductile among the grades, making them ideal for applications requiring moderate strength and maximum formability. They are often used in chemical processing and marine applications.

Gr 2
BaseTi's Grade 2 titanium bars are robust and corrosion-resistant, commonly used in heat exchangers and desalination plants.

Gr 3
For structural applications that demand higher strength, Grade 3 titanium bars are the go-to choice, seen in aircraft components and power generation facilities.

Gr 4
The highest strength Commercially Pure Titanium Bar, Grade 4 bars are found in medical implants and military hardware where the utmost strength is essential.

Available Sizes and Tolerance
The round bars are available in a diameter range of 6-200 mm and length up to 6000 mm with tolerance levels conforming to ASTM standards.

The BaseTi Advantage
BaseTi pure titanium bars are manufactured adhering to the highest industry standards, ensuring product reliability and longevity.

Conclusion
BaseTi's range of pure titanium round bars in Grades 1, 2, 3, and 4 offer unparalleled solutions across diverse applications. As a leading titanium manufacturer, BaseTi ensures that the quality matches the industry's rising demands.

Cold Hot Rolled Pure Titanium Rod Medical Titanium 6000mm For Aerospace

Pure Titanium Bar - Production Standards

Standard
Grade
European Equivalent
Application Field
Specific Product(s)
ASTM B348 Grade 1 Ti Grade 1 (CPT1)
Aerospace, Chemical Processing
Airframes, Heat Exchangers
ASTM B348
Grade 2
Ti Grade 2 (CPT2)
Aerospace, Marine
Engine parts, Ship Hulls
ASTM B348
Grade 3
Ti Grade 3 (CPT3)
Industrial, Medical
Prosthetics, Piping
ASME SB348
Grade 1
Ti Grade 1 (CPT1)
Chemical Processing, Power Plants
Valves, Pumps
ASME SB348
Grade 2
Ti Grade 2 (CPT2)
Desalination, Power Generation
Pressure Vessels, Shafts
ASTM F67
Grade 1
Ti Grade 1 (CPT1)
Medical, Dental
Dental Implants, Screws
ASTM F67
Grade 2
Ti Grade 2 (CPT2)
Medical
Orthopedic Implants
ASTM F67
Grade 3
Ti Grade 3 (CPT3)
Medical, Surgical
 Surgical Instruments

ASTM B348

This standard applies to a variety of sectors including aerospace and chemical processing, where Grade 1 and Grade 2 are commonly used.

ASME SB348

This standard is critical for power plants and desalination projects, employing Grades 1 and 2.

ASTM F67

Focusing primarily on medical and dental applications, ASTM F67 in Grades 1, 2, and 3 serves a significant role in the medical industry.

This Excel table provides an authoritative look into how different grades of pure titanium round bars are utilized across various industry standards. For titanium manufacturers, aligning their products with these standards will ensure greater market visibility and usage.

Chemical Properties of Pure Titanium Bar

As an industry expert in titanium products, I can affirm that understanding the chemical properties of Titanium Round Bars is crucial for applications across various industries. Complying with standards like ASTM B348, ASME SB348, and ASTM F67, the chemical compositions for Grades 1, 2, 3, and 4 offer specific solutions tailored for aerospace, medical, and many more industries.

Here is a detailed Excel table outlining the chemical properties:

Grade Standard
Carbon (C)
 Oxygen (O) Nitrogen (N) Hydrogen (H) Iron (Fe) Titanium (Ti)
1 ASTM B348 ≤0.08% ≤0.18% ≤0.03% ≤0.015% ≤0.20% Balance
2 ASTM B348 ≤0.08% ≤0.25% ≤0.03% ≤0.015% ≤0.30% Balance
3 ASTM B348 ≤0.08% ≤0.35% ≤0.05% ≤0.015% ≤0.30% Balance
4 ASTM B348 ≤0.08% ≤0.40% ≤0.05% ≤0.015% ≤0.50% Balance

Key Notes:

  1. All figures are maximum weight percentages unless denoted.
  2. Titanium (Ti) is listed as "Balance," implying it makes up the remaining weight percentage.

By understanding these precise chemical properties, industries can make an informed decision for their specific applications, whether it be for structural supports in aerospace or implants in the medical field.
