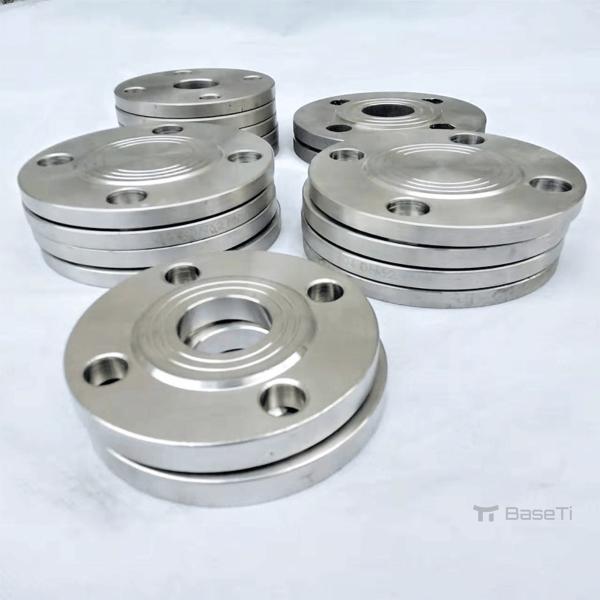

DIN 2566. Titanium Pipe Flange Ti Titanium Threaded Flange For Oil & Gas Chemical Processing
DIN 2566. Titanium Pipe Flange Ti Titanium Threaded Flange For Oil & Gas Chemical Processing
DIN 2566. Titanium Pipe Flange Ti Titanium Threaded Flange For Oil & Gas Chemical Processing
DIN 2566. Titanium Pipe Flange Ti Titanium Threaded Flange For Oil & Gas Chemical Processing
DIN 2566. Titanium Pipe Flange Ti Titanium Threaded Flange For Oil & Gas Chemical Processing
DIN 2566. Titanium Pipe Flange Ti Titanium Threaded Flange For Oil & Gas Chemical Processing
Specifications
Brand Name :
BaseTi
Model Number :
TGFL011
Certification :
ISO 9001, EN10204 3.1
Place of Origin :
China
MOQ :
1
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
15 DAYS
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Grade :
Grade 1, Grade 2, Grade 5 (6Al-4V), Grade 7, Grade 9.
Production standards :
ANSI B16.5, ASME B16.47, DIN 2566.
Tolerance :
+/- 0.02mm
Rolling process :
Hot Rolled, Cold Rolled
Surface process :
pickling, passivation, and polishing
Size :
Common sizes include 1/2", 3/4", 1", 1.5", 2", and larger, with corresponding nominal pipe sizes (NPS)
Pressure Rating :
Class 150, Class 300, and Class 600
Description

Titanium Threaded Flanges ANSI B16.5, ASME B16.47, DIN 2566. Ti For Oil & Gas, Chemical Processing

TITANIUM THREADED PIPE FLANGE - OVERVIEW

*If you have any requirements for customized titanium threaded flange, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

Titanium threaded flange specifications & parameters
Product name Titanium flange piece
Application field Oil & Gas, Chemical Processing, Desalination, Aerospace, Automotive.
Available size 1/2" to 12" (Nominal Pipe Size)
Grade Grade 1, Grade 2, Grade 5 (6Al-4V), Grade 7, Grade 9.
Production stadards ANSI B16.5, ASME B16.47, DIN 2566.
Tolerance ±0.02mm. or Customizable
Rolling process Hot Rolling for larger sizes, Cold Rolling for smaller sizes.
Surface process Pickling, Sandblasting, Polished.
Delivery time 13-15days

TITANIUM THREADED PIPE FLANGE APPLICATIONS & SOLUTIONS

1. Chemical Processing Industry

  • Field: Chemical Industry
  • Specific Scenario: Connecting pipes in corrosive chemical processing plants.
  • Advantages & Problems Solved: Titanium threaded flanges, especially those made from titanium alloys, provide exceptional resistance to corrosion in aggressive chemical environments, ensuring long-term integrity and preventing leaks.
  • Prominent Features: Excellent corrosion resistance, longevity.

2. Aerospace Manufacturing

  • Field: Aerospace
  • Specific Scenario: Assembly of aircraft components and systems.
  • Advantages & Problems Solved: Titanium and titanium alloy threaded flanges offer a unique combination of lightweight design and high strength, making them suitable for aerospace applications where weight and performance are critical.
  • Prominent Features: Lightweight, high strength-to-weight ratio.

3. Desalination Plants

  • Field: Water Treatment
  • Specific Scenario: High-pressure piping systems in reverse osmosis desalination facilities.
  • Advantages & Problems Solved: Titanium threaded flanges resist corrosion from highly saline environments and can withstand the high pressures required for desalination processes, ensuring long-term reliability.
  • Prominent Features: Corrosion resistance in saline environments, high-pressure tolerance.

4. Marine Industry

  • Field: Maritime
  • Specific Scenario: Use in seawater systems, such as saltwater pumps and pipelines.
  • Advantages & Problems Solved: Titanium threaded flanges' exceptional corrosion resistance in seawater environments ensures the longevity of marine systems, preventing downtime and maintenance costs.
  • Prominent Features: Seawater corrosion resistance, durability.

5. Power Generation

  • Field: Energy
  • Specific Scenario: Integration in nuclear power plants for coolant systems.
  • Advantages & Problems Solved: Titanium threaded flanges' resistance to radiation and high-temperature environments makes them suitable for critical applications in nuclear power generation, ensuring safety and reliability.
  • Prominent Features: Radiation resistance, high-temperature tolerance.
DIN 2566. Titanium Pipe Flange Ti Titanium Threaded Flange For Oil & Gas Chemical Processing

COMMON SPECIFICATIONS FOR TITANIUM THREADED FLANGES

Please note that the technical specifications provided here are general and commonly used. For specific customization and more detailed information, please feel free to contact BaseTi for further details.

US Grade European Grade Standard Sealing Surface Type Convexity Technical Specification

Ring Joint Face

Technical Specification
Grade 2 Titanium Gr. 2 ASTM B16.5 Raised Face ASME B16.5 ASME B16.5
Grade 5 Titanium Gr. 5 ASME B16.5 Ring Joint Face (RTJ) ASME B16.5 ASME B16.20
Grade 9 Titanium Gr. 9 ASME B16.47 Raised Face ASME B16.5 ASME B16.47
Grade 23 Titanium Gr. 23 ASME B16.47 Ring Joint Face (RTJ) ASME B16.5 ASME B16.20
