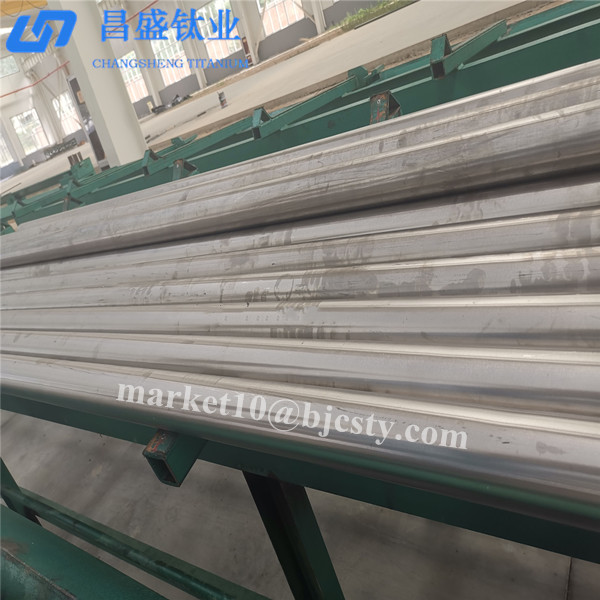

OD108mm Gr7 Titanium Alloy Pipe Round And Seamless Tubing For Geothermal Plant
OD108mm Gr7 Titanium Alloy Pipe Round And Seamless Tubing For Geothermal Plant
OD108mm Gr7 Titanium Alloy Pipe Round And Seamless Tubing For Geothermal Plant
OD108mm Gr7 Titanium Alloy Pipe Round And Seamless Tubing For Geothermal Plant
Specifications
Brand Name :
Changsheng
Model Number :
Gr7 Titanium Alloy Pipe Seamless Tubing
Certification :
ISO9001：2015
Place of Origin :
Shaanxi, China
MOQ :
50kg
Price :
USD 190.0/KG - USD 210.0/KG
Payment Terms :
L/C, T/T
Supply Ability :
30 Tons per Month
Delivery Time :
3-5 work days
Packaging Details :
Soft film wrapped inside, export standard crate outside.
Material :
Grade 7 Ti-0.15Pd Alloy (UNS R52400)
Diameter :
OD108mm
Wall Thickness :
3mm
Surface :
Acid Washing surface
Shape :
Round Titanium Tubing
Production Standard :
ASTM B338, ASTM B337, ASTM B861
Application :
Chemical, Vessel fabrication, Plating and anodizing
Advantage :
Strong Crevice Corrosion Resistance
Tube Origin :
Baoji City, China
Supply Company :
Baoji City Changsheng Titanium Co,.
Description

OD108mm Gr7 Titanium Alloy Pipe Round And Seamless Tubing For Geothermal Plant

Gr7 titanium alloy pipe, round and seamless tubing, we now have dia108mm Gr7 titanium tubes in stock, with high quality and competitive price, meet the short time deadline. Grade 7/3.7235 Ti-Pd alloy(UNS R52400) is highly resistant to corrosion in reducing acids and localized attack in hot halide media. Gr7 Titanium pipe are certainly viable candidates for geothermal systerm components when common stainless steels have previously failed or are anticipated to exhibit marginal performance. Titanium seamless tubing grade 7 become preferred materials in geothermal systems because hot, oxidizing-chloride conditions are known to cause severe localized attack of stainless steel and nickel-base alloys.

Gr7 Titanium Alloy Pipe Stock Size

Grade: Titanium alloy, Grade 7(Ti-Pd)/3.7235, UNS R52400
Standard: ASTM B338 ASTM B337 ASTM B861
Outside Diameter: 108mm
Wall thickness: 3mm
Tube Surface: pickling surface
Price: competitive price
Lead time: 3 days

Grade 7(Ti-Pd)/3.7235, UNS R52400 Chemical Composition (wt)%

Element Impurity ≤
Ti Pd Fe C N H O Other Elements
Single Total
Balance 0.12 - 0.25 0.25 0.10 0.03 0.015 0.20 0.10 0.40

Titanium Tubes Mechanical Properties

ASTM Grade
 Alloy composition Tensile strength Yield strength Elongation %
ksi Mpa ksi Mpa
GR1
 Unallyed Ti(Pure)35A-CP1 35 240 25 170 24
GR2 Unallyed Ti(Pure)50A-CP2 50 345 40 275 20
GR5 Ti 6Al 4V 130 895 120 828 10E
GR7 Ti-Pd 50 345 40 275 20
GR9 Ti 3AI 2.5V 90 620 70 483 15F

General Introduction of Gr7 Titanium Alloy Metal Material

Ti-0.2Pd (Grade 7) Titanium alloy with addition of small quantities of precious metals palladium and pure industrial titanium The palladium of the alloy improves not only the corrosion resistance in reducing medium, but also its corrosion resistance in oxidizing medium. In high temperature and high concentration of various chloride media, Ti-0.2Pd alloy has the strongest anti-crevice corrosion resistance. Ti-0.2Pd has various properties similar to industrial pure titanium, so the alloy is widely used in chemical industry, especially petrochemical industry.

Gr7 Titanium Tube Industrial Applications

Oil and Gas Industry
Power Plant Industry
Marine Industry
Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry
Plating and anodizing industry
Medical industry
Nuclear industry

OD108mm Gr7 Titanium Alloy Pipe Round And Seamless Tubing For Geothermal Plant

Tags: Gr7 titanium pipes, Titanium Alloy Pipes, Grade 7 Titanium Geothermal Brine Well Tubular
