Specifications
Brand Name :
CHANGSHENG
Model Number :
CS-MMOW
Certification :
ISO9000:2015
Place of Origin :
CHINA
MOQ :
10 pcs
Price :
According to quantity
Payment Terms :
T/T, L/C
Supply Ability :
100000pcs per month
Delivery Time :
20 working days
Packaging Details :
Clients’ requirement
Substrate :
Gr1 titanium
Current :
15mA-100mA
Item Name :
MMO cathode protection anode wire
Usage :
mainly used for the production of flexible anodes
Service Year :
20-40 years
Diameter :
1.0/1.5/2.0/3.0mm
Description

MMO anode wire is mainly used for the production of flexible anodes, cathodic protection of pipeline inner wall, cathodic protection of water heater inner tank, etc.

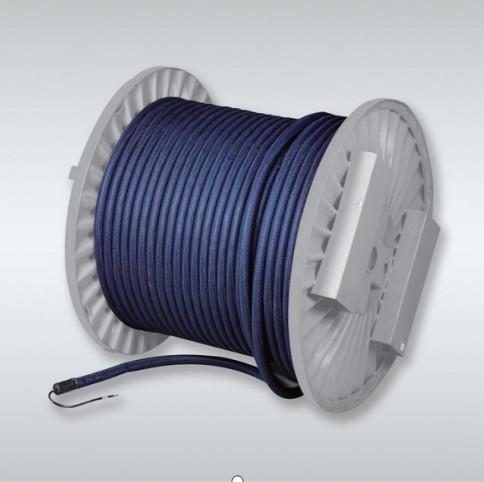

Flexible anodes are widely used as auxiliary anodes in the forced current cathodic protection system of buried pipelines, storage tanks and other buried metal components.

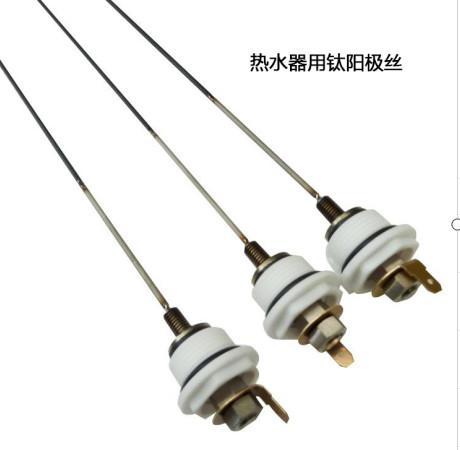

Titanium anode wire for water heaters is mainly used for cathodic protection of water heater inner tanks. It is the next generation of new anode products of sacrificial anode "magnesium rod".

Product specifications and performance:
Item DIA
(mm)		 Length
(mm)
Current output(mA/m)
Life Span
(Year)
Application

Titanium anode wire		 φ1.0 ＞100/Coil 15-100 20-40
Storage tanks, gasoline stations

Titanium anode wire		 φ1.5 ＞100/Coil 15-100 20-40
Storage tanks, gasoline stations

Titanium anode wire		 φ2.0 ＞100/Coil 15-100 20-40
Storage tanks, gasoline stations

Titanium anode wire		 φ3.0 ＞100/Coil 15-100 20-40
Storage tanks, gasoline stations

*Other sizes of titanium wire can be customized.

The titanium substrate used is wire that meets ASTM B863 Gr1.


Chemical composition		 (Fe) (C) (N) (H) (O) (Ti)
Others

Maximum content		 0.20% 0.08% 0.03% 0.02% 0.18%
Balance		 0.40%
Coating system: Iridium-Tantalum coating

Strengthening life test standard: NACE TM0108-2008
Test conditions Testing time

In 1mol/L NA2SO4 solution, current density is 15000A/㎡
Enhanced life span greater than 38 days
