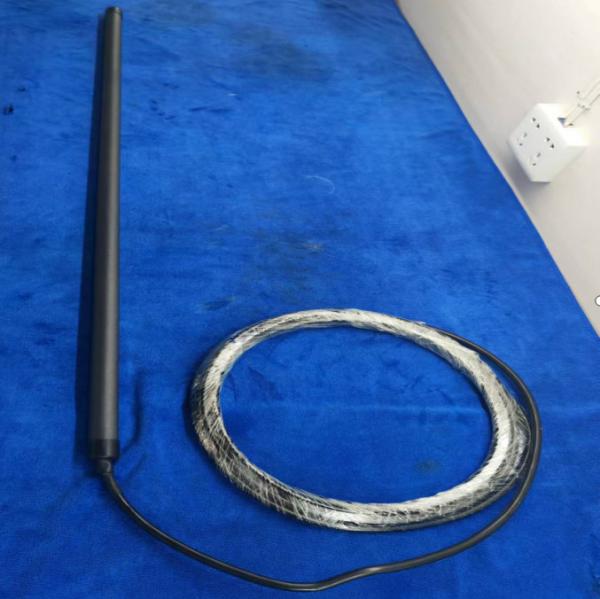

MMO cathode-protected tubular anode for freshwater or marine environments
MMO cathode-protected tubular anode for freshwater or marine environments
MMO cathode-protected tubular anode for freshwater or marine environments
MMO cathode-protected tubular anode for freshwater or marine environments
MMO cathode-protected tubular anode for freshwater or marine environments
MMO cathode-protected tubular anode for freshwater or marine environments
MMO cathode-protected tubular anode for freshwater or marine environments
MMO cathode-protected tubular anode for freshwater or marine environments
MMO cathode-protected tubular anode for freshwater or marine environments
MMO cathode-protected tubular anode for freshwater or marine environments
Specifications
Brand Name :
CHANGSHENG
Model Number :
CS-CTA
Certification :
ISO9000:2015
Place of Origin :
CHINA
MOQ :
10 pcs
Price :
According to quantity
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs per month
Delivery Time :
45-50 days
Packaging Details :
Clients’ requirement
Size :
Customizable
Item Name :
MMO cathode-protected tubular anode
Coating :
soil iridium tantalum coating seawater ruthenium iridium coating
Service Life :
20-30years
Material :
GR1
Type :
Tubular
Description

MMO tubular anodes can be directly applied as bare anodes in freshwater or marine environments. When used for cathodic protection of large marine steel structures, they can be combined into remote anodes, which have the advantages of simple installation and wide protection range. In soil environments, MMO tubular anodes are often pre-packaged to form shallow buried anode beds or deep well anode beds.

Product specifications and performance:
Item OD
(mm)		 WT
(mm)		 L
(mm)
Surface area(㎡)
Current output
(A/m)
Life Span
(Year)

Tubular Anode		 16 1.0 1000 0.05 5 20-30

Tubular Anode		 16 1.0 1000 0.05 30 20-30

Tubular Anode		 19 1.0 1000 0.06 6 20-30

Tubular Anode		 19 1.0 1000 0.06 36 20-30

Tubular Anode		 25 1.0 1000 0.08 8 20-30

Tubular Anode		 25 1.0 1000 0.08 48 20-30

Tubular Anode		 32 1.0 1000 0.1 10 20-30

Tubular Anode		 32 1.0 1000 0.1 60 20-30

*Other specifications and sizes of titanium tubes can be customized.

Coating system: soil iridium tantalum coating seawater ruthenium iridium coating

The titanium substrate is made of pipes that meet ASTM B338 Gr1.


Chemical composition		 (Fe) (C) (N) (H) (O) (Ti)
Others

Maximum content		 0.20% 0.08% 0.03% 0.02% 0.18%
Balance		 0.40%

Strengthening life test standard: NACE TM0108-2008
Test conditions Testing time

In 1mol/L NA2SO4 solution, current density is 15000A/㎡
Enhanced life span greater than 48 days
