Specifications
Brand Name :
Changsheng
Model Number :
ASME B16.9
Certification :
ISO 9001;2015
Place of Origin :
China
MOQ :
10pc
Price :
50usd/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000T/MONTH
Delivery Time :
10-15days
Packaging Details :
packed with export wooden case
Type :
Pipe Fittings
Pressure Rating :
Class 150
Titanium Surface Finish :
Inner and Outer Surface Polishing
Surface Finish :
Pickled, Polished
Biocompatibility :
Certified for medical use
Center To End :
38-610mm
Others Material :
Nickel N6 N4 N201
Production Standards :
ASTM B381, ASTM B363, ASME B16.9,
Nps :
1
Dimensional Accuracy :
±0.02 mm
Color :
Light silver grey
Technique :
Welding
Thickness :
0.8-8.0mm
Chemical Resistance :
High
Surface Process :
Annealed, pickled
Description

Descriptions

Titanium Concentric Reducer is a pipe fitting used to reduce the flow or size of a pipeline from a larger diameter to a smaller one while maintaining a common centerline throughout its length. It is designed to connect pipes of different diameters while ensuring smooth flow and minimal turbulence.

Manufactured from high-quality titanium alloys, the Titanium Concentric Reducer provides exceptional strength, corrosion resistance, and temperature tolerance, making it suitable for demanding environments such as chemical processing, oil and gas, marine, and industrial systems.

The CPTi Titanium Concentric Reducer is engineered for high-pressure and high-temperature service and offers superior resistance to corrosion, erosion, and abrasion. It delivers long service life and consistent performance, even under harsh conditions.

Specifications of Titanium Concentric Reducer

Grade: Gr2, Gr5, Gr7, Gr12

Standard: ASME B16.9

Size Range: 1.000" (25.4 mm) × 0.500" (12.7 mm) to 8.000" (203.2 mm) × 6.000" (152.4 mm)

Wall Thickness: SCH5S – SCHXXS

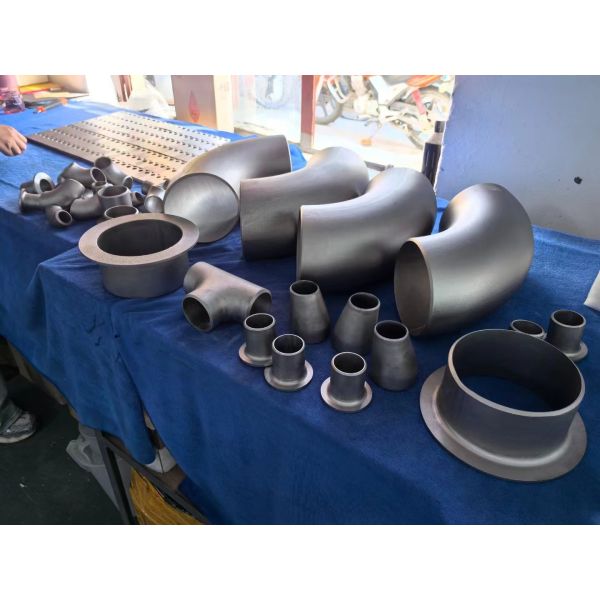

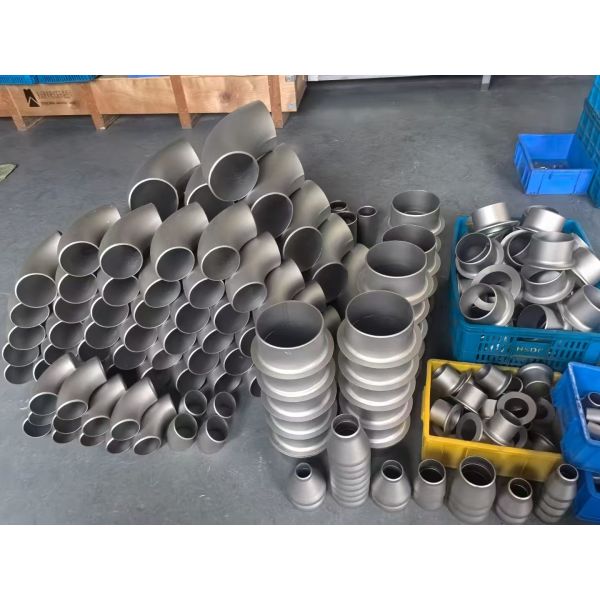

Available Titanium Pipe Fittings

Titanium Elbows: 45°, 90°, 180° (NPS 1/4″ – 48″)

Titanium Concentric Reducer: NPS 1/4″ – 48″

Titanium Eccentric Reducer: NPS 1/4″ – 48″

Titanium Tees: Straight, Equal, Reducer, Cross Tee (NPS 1/4″ – 48″)

Titanium Lap Joint Stub Ends: NPS 1/4″ – 48″

Titanium Caps, Flanges, Socket Weld Fittings, and Valves also available

Physical Properties

Grade Tensile Strength (MPa) Yield Strength (MPa) Elongation (%)
Gr1 240 170 24
Gr2 345 275 20
Gr4 550 483 15
Gr5 895 828 10
Gr7 400 275 18
Gr9 620 483 15
Gr12 483 348 18
Gr23 793 759 10

Chemical Composition

Grade Fe (max) O (max) N (max) C (max) H (max) Pd (max) Al (max) V (max) Ti
Gr1 0.20 0.18 0.03 0.08 0.015 — — — Balance
Gr2 0.30 0.25 0.03 0.08 0.015 — — — Balance
Gr4 0.50 0.40 0.05 0.08 0.015 — — — Balance
Gr5 0.40 0.20 0.05 0.08 0.015 — 5.5–6.7 3.5–4.5 Balance
Gr7 0.30 0.25 0.03 0.08 0.015 0.12–0.25 — — Balance
Gr9 0.25 0.15 0.03 0.08 0.015 — 2.5–3.5 2.0–3.0 Balance
Gr12 0.30 0.25 0.03 0.08 0.015 — 0.6–0.9 0.2–0.4 Balance
Gr23 0.25 0.03 0.03 0.08 0.0125 — 5.5–6.5 3.5–4.5 Balance

Advantages of Titanium Concentric Reducer

  1. Superior Corrosion Resistance: Excellent protection against acids, alkalis, and chlorides.

  2. Lightweight and High Strength: Offers a high strength-to-weight ratio for demanding applications.

  3. Durable and Cost-Effective: Long service life reduces maintenance and replacement costs.

  4. High Temperature Resistance: Performs reliably in extreme heat and pressure conditions.

  5. Easy Installation and Maintenance: Simple to assemble, disassemble, and maintain.

  6. Excellent Wear Resistance: Withstands abrasion and flow-induced stress.

  7. Outstanding Chemical Resistance: Ideal for harsh industrial and chemical environments.

Applications:

Chemical and petrochemical processing

Marine and offshore industries

Power generation and desalination

Aerospace and defense systems

Industrial fluid and gas transport systems
