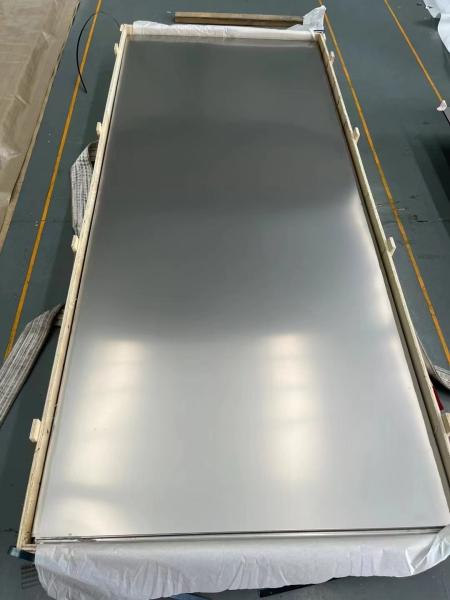

AMS 4911 Plate Titanium Plate Rolled And Forged For Aerospace
AMS 4911 Plate Titanium Plate Rolled And Forged For Aerospace
AMS 4911 Plate Titanium Plate Rolled And Forged For Aerospace
AMS 4911 Plate Titanium Plate Rolled And Forged For Aerospace
AMS 4911 Plate Titanium Plate Rolled And Forged For Aerospace
AMS 4911 Plate Titanium Plate Rolled And Forged For Aerospace
AMS 4911 Plate Titanium Plate Rolled And Forged For Aerospace
AMS 4911 Plate Titanium Plate Rolled And Forged For Aerospace
AMS 4911 Plate Titanium Plate Rolled And Forged For Aerospace
AMS 4911 Plate Titanium Plate Rolled And Forged For Aerospace
AMS 4911 Plate Titanium Plate Rolled And Forged For Aerospace
AMS 4911 Plate Titanium Plate Rolled And Forged For Aerospace
Specifications
Brand Name :
Changsheng
Model Number :
ASTM/AMS
Certification :
ISO 9001;2015
Place of Origin :
China
MOQ :
50kg
Price :
$15.00 - $30.00/ kg
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000T/MONTH
Delivery Time :
10-15days
Packaging Details :
wooden case,carton Packaging can be according to customer requirements.
Materials :
Titanium
Grade :
Ti-6l-4V/Grade 5/R56400
Standard :
AMS 4911/AMS 4900/AMS 4901/AMS 4902/AMS 4914
Thickeness :
0.5-20mm
Length :
100-3600mm
Width :
100-2000mm
Surface :
Pickling
Description

Description

AMS 4911 Aerospace Titanium Sheet is a standard specification covering Titanium and Titanium Alloys used in aerospace and high-performance applications. It defines the chemical, mechanical, and metallurgical requirements for titanium products such as sheets, plates, bars, billets, forgings, and rings.
This specification also includes requirements for heat treatment, testing, and inspection to ensure consistent performance and reliability in critical environments.

AMS 4911 Plate Titanium (Grade 5 / Ti-6Al-4V / UNS R56400) is renowned for its high strength, corrosion resistance, low weight, and non-magnetic properties, making it one of the most widely used titanium alloys in aerospace and other demanding industries.

Specifications

Property Description
Standard AMS 4911
Material Grade Grade 5 / Ti-6Al-4V / UNS R56400
Condition (State) Annealed
Surface Finish Pickled
Thickness 0.5 – 20 mm
Width Up to 2000 mm
Length Up to 3600 mm
Minimum Order Quantity (MOQ) 100 kg
Bend Test Meets 105° bend test requirement

Physical Properties

Grade Tensile Strength (MPa) Yield Strength (MPa) Elongation (%)
Gr1 240 170 24
Gr2 345 275 20
Gr4 550 483 15
Gr5 895 828 10
Gr7 400 275 18
Gr9 620 483 15
Gr12 483 348 18
Gr23 793 759 10

Chemical Composition (Weight %)

Grade Fe O N C H Pd Al V Ni Mo Ti
Gr1 0.20 0.18 0.03 0.08 0.015 – – – – – Balance
Gr2 0.30 0.25 0.03 0.08 0.015 – – – – – Balance
Gr4 0.50 0.40 0.05 0.08 0.015 – – – – – Balance
Gr5 0.40 0.20 0.05 0.08 0.015 – 5.5–6.7 3.5–4.5 – – Balance
Gr7 0.30 0.25 0.03 0.08 0.015 0.12–0.25 – – – – Balance
Gr9 0.25 0.15 0.03 0.08 0.015 – 2.5–3.5 2.0–3.0 – – Balance
Gr12 0.30 0.25 0.03 0.08 0.015 – 0.6–0.9 0.2–0.4 – – Balance
Gr23 0.25 0.03 0.03 0.08 0.0125 – 5.5–6.5 3.5–4.5 – – Balance

Applications

  1. Aerospace – Used in aircraft airframes, engine components, landing gear, and airfoils due to its superior strength-to-weight ratio and corrosion resistance.

  2. Automotive – Applied in high-performance vehicle parts including wheels, suspension components, exhaust systems, and engine parts.

  3. Medical – Ideal for surgical implants, prosthetics, and instruments because of its biocompatibility and resistance to body fluids.

  4. Consumer Products – Used in high-end items such as eyewear, golf clubs, bicycles, jewelry, and watches, as well as cookware and kitchen appliances.

Related Aerospace Titanium Standards

AMS 4900

AMS 4901

AMS 4902

AMS 4911

AMS 4914
