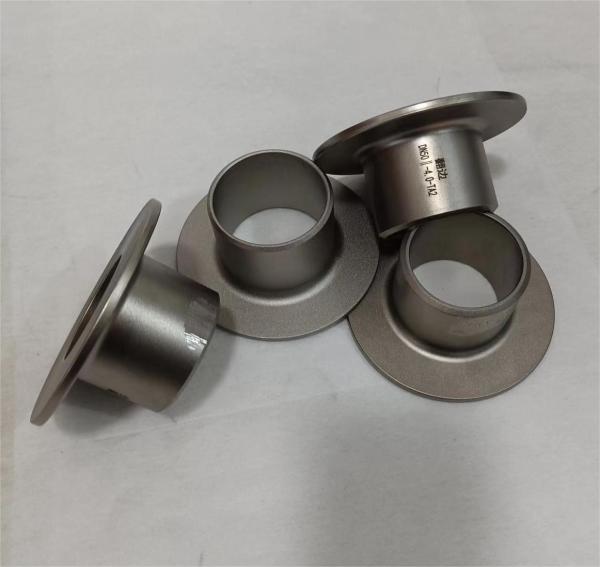

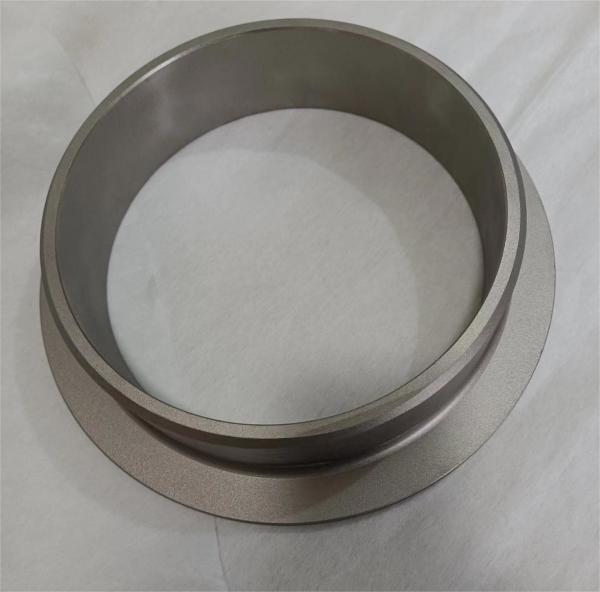

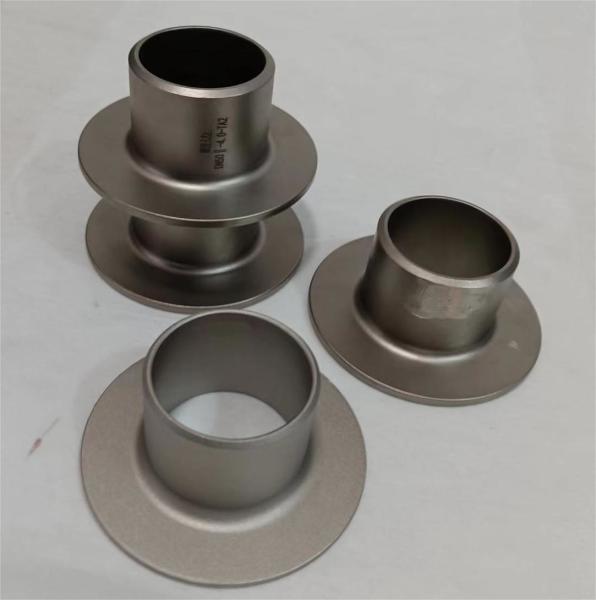

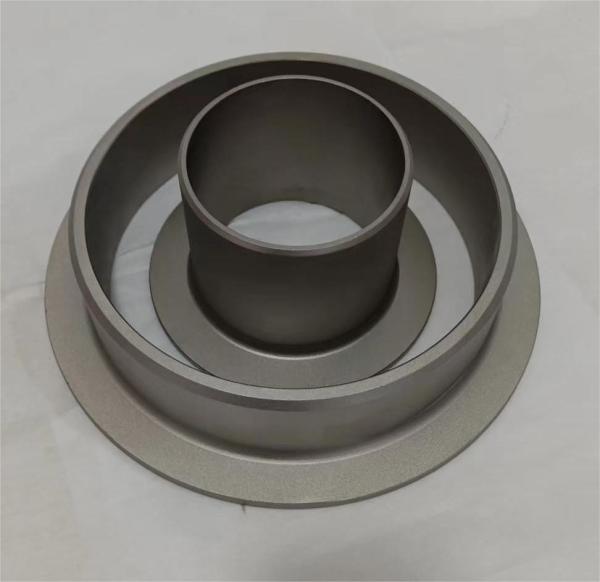

ASTM B363 Gr5 Titanium Lap Joint Stub End DN15 - DN300
ASTM B363 Gr5 Titanium Lap Joint Stub End DN15 - DN300
ASTM B363 Gr5 Titanium Lap Joint Stub End DN15 - DN300
ASTM B363 Gr5 Titanium Lap Joint Stub End DN15 - DN300
ASTM B363 Gr5 Titanium Lap Joint Stub End DN15 - DN300
ASTM B363 Gr5 Titanium Lap Joint Stub End DN15 - DN300
ASTM B363 Gr5 Titanium Lap Joint Stub End DN15 - DN300
ASTM B363 Gr5 Titanium Lap Joint Stub End DN15 - DN300
Specifications
Brand Name :
FHH
Place of Origin :
Xi'an,China
MOQ :
50pcs
Payment Terms :
L/C, D/P, T/T
Supply Ability :
as your request
Delivery Time :
5--10days
Packaging Details :
All goods are packed in wooded case
Commodity :
Lap Joint Stub End
Materials :
Titanium metal / alloy
Grade :
(GR1,GR2,GR7,GR12,GR5
Standard :
ASTM B363,ASTM SB363,ASTM B16.9
Dimension :
DN15--DN300
Technology :
Welded, Forged, Rolled, Seamless
Description

Titanium stub end are generally used with stainless steel or carbon steel flanges to reduce the cost of use, and the form of this type of flange is also called looper flanges (PJ/SE), or called looper flanges, loose flanges.

Titanium stub end is also called titanium butt welding ring, usage: titanium stub end through the stainless steel flange, titanium stub end and pipeline (titanium pipe pipe) welding, two welded titanium stub end butt, stainless steel flange to do fastening. The contact with the medium in the pipeline is titanium material, that is, the original titanium pipe and titanium stub end, and the stainless steel flange part does not contact the medium, only to tighten the effect, so as to reduce the cost.

Disadvantages of PJ/SE- loose sleeve flanges and looping flanges used with titanium flanges: This type of pipeline connection is not suitable for use in an environment where the pipeline pressure is too high, and is suitable for normal pressure pipeline environment

The American pipe pressure system is divided into the following four grades :2.0MPa, 5.0MPa, 11.0MPa,15.0MPa

Europe pipe pressure system is divided into the following eight levels: 0.6 MPa, 1.0 MPa, 1.6 MPa. 2. The SMP (4.0 MPa, 6.3 MPa to 10.0 MPa, 16.0 MPa.

Nominal diameter and outer diameter of welded pipe(mm)

DN 15 20 25 32 40 50 65 80 100 125 150 200 300
OD 21.3 26.7 33.4 42.2 48.3 60.3 73 88.9 114.3 141.3 168.3 219.1 323.8

Note:Any oreder,Please state your request in details,Such as :Quantity,Dimension(Length,High,thickness,wideth,or fixed length),Materials,Standard etc.

ASTM B363 Gr5 Titanium Lap Joint Stub End DN15 - DN300ASTM B363 Gr5 Titanium Lap Joint Stub End DN15 - DN300ASTM B363 Gr5 Titanium Lap Joint Stub End DN15 - DN300ASTM B363 Gr5 Titanium Lap Joint Stub End DN15 - DN300ASTM B363 Gr5 Titanium Lap Joint Stub End DN15 - DN300
