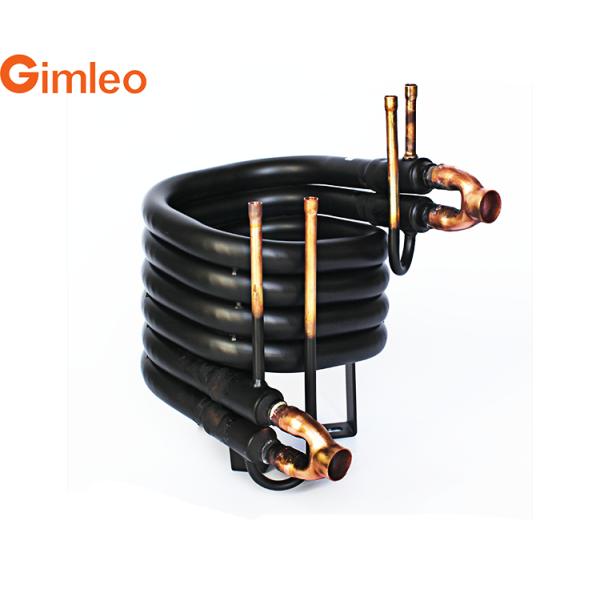

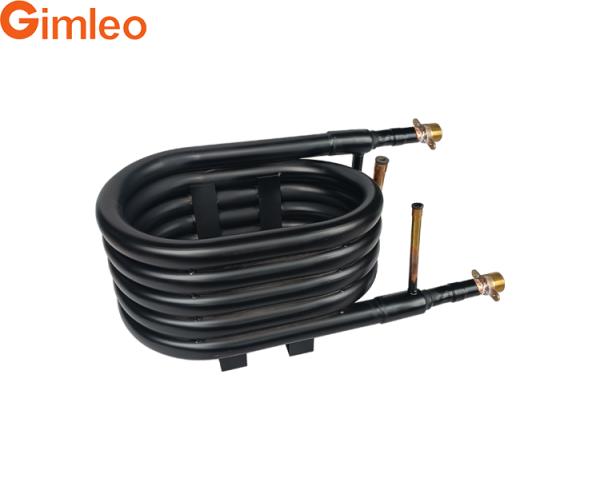

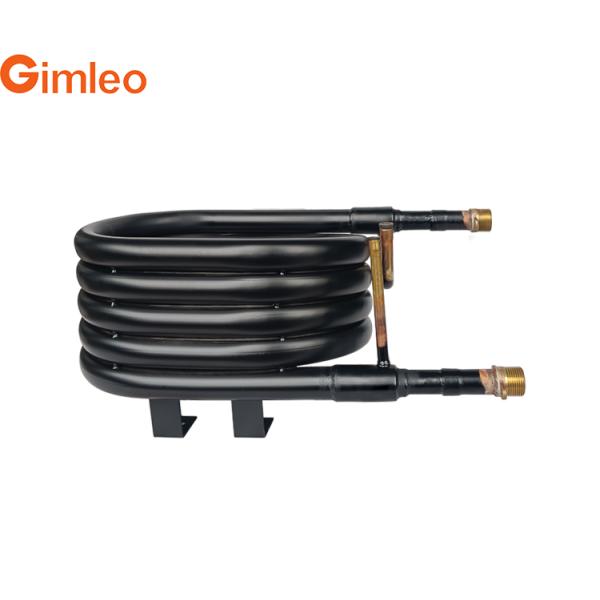

Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Specifications
Water connection :
1 inch
Price :
$156.80-282.30
Structure :
coaxial
Shell material :
stainless steel copper tube
Certification :
RoHS
warranty :
1 Year
Heat Exchanger Type :
Tube Heat Exchanger
Tube material :
copper tube
Used as :
Condenser,Evaporator
Material :
Copper
Weight (KG) :
10
Water flow :
2.6 m³/h
MOQ :
20
Place of Origin :
China
Heat capacity :
15 kw
Product Name :
Coaxial Heat Exchanger
Description
Products Description
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Product name
Coaxial Heat Exchanger
Type
copper tube in steel tube
Model number
GY-0154C
Heating capacity
15.4kw
Water flow
2.6m³/h
Use as
Condenser,Evaporator
Series Products
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger

Product Introduction :

Coaxial heat exchanger is a recuperative heat exchanger. It consists of one inner twisted tube and one outer tube.Inner tube is separated the two media. Enable to heat exchange by using the common wall surface. Generally, the shell pass is for water, and the tube pass is for the air. It used a manner of countercurrent, which can be improved the effect of the heat transfer.
Its advantages: pressure proof, quake proof, Deformation proof, dirty proof,oil returning smoothly, safe and high-quality,leak proof, convenient,reasonable price,well applied into heat pump system.

Product Features :

• Low water quality requirements.A strong turbulent flow will be formed,and the water side is not easy to block the water side.
• Due to its structure,the product has good oil return characteristics.
• Heating and cooling capacity performance is relatively balanced.
• According to different application scenarios,different heat exchange tubes can be selected.

Product material and structure :

Tube material and structure can be customizable.
Optional tube material
pure copper tube
stainless steel tube
titanium tube
nickel-copper tube
Optional tube structure
Round coaxial
Trombone coaxial
Rectangle coaxial
Details Images
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Product Application
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Product Categories
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Company Profile
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger

Company Introduction


Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.

Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.

Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture,electroplating industry and heat recovery from the waste water or exhaust gas.

We deeply realize the importance of scientific management and technical innovations.Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales.Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.

After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Product packaging
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
FAQ
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
Gimleo Z15 Air-Source Heat Pump Water Heater Copper Heat Exchanger
