Specifications
Brand Name :
ORIGIN
Model Number :
PZ-DJ
Place of Origin :
China
MOQ :
1 set
Delivery Time :
50 days
Packaging Details :
wooden packing
Cutting Diameter :
150-300mm
Cutting Type :
Tissue Paper/JRT /HRT
Voltage :
380V ,50HZ
Cutting Length :
90-300mm (Customized)
Speed :
40-60 cuts/min
Warranty :
One year
Description

Product Description

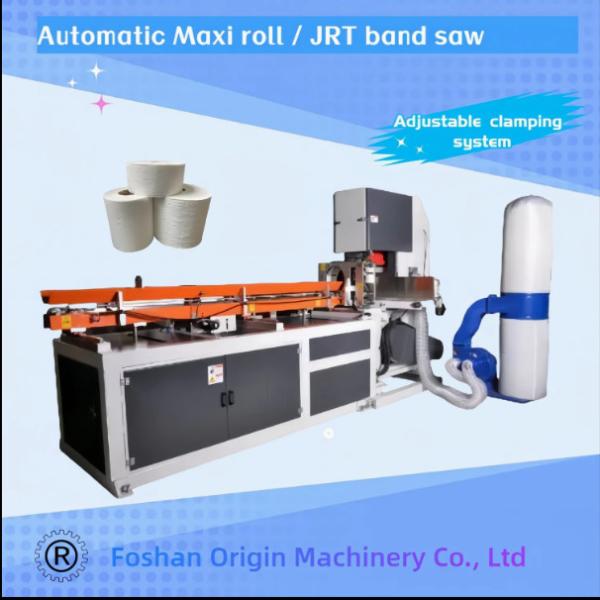

Maxi Roll Band Saw JRT /HRT Industrial Roll Cutting Machine Cutter
Product Description

Machine features:

  1. Equipped with flexible clamping system, it can work with different cutting log diameters without replacing the clamper . Clamping log diameter can be set on touch panel directly.
  2. Cutting size: Φ180-280mm, width 90-300mm (other size to be specified)
  3. Cutting operation is fully automatic , increase the safety in production.
  4. Saw blade tension is controlled by hydraulic system . The compact rolls which carry hard paper cores are cut easily.

It is easy to operate this band saw by setting some simple cutting parameters on touch panel.

Tissue log transfer stand
Connecting the band saw with the rewinder. The tissue log will be transfer to the band saw cutting unit automtically.
Maxi Roll Band Saw JRT /HRT Industrial Roll Cutting Machine Cutter
Maxi Roll Band Saw JRT /HRT Industrial Roll Cutting Machine Cutter

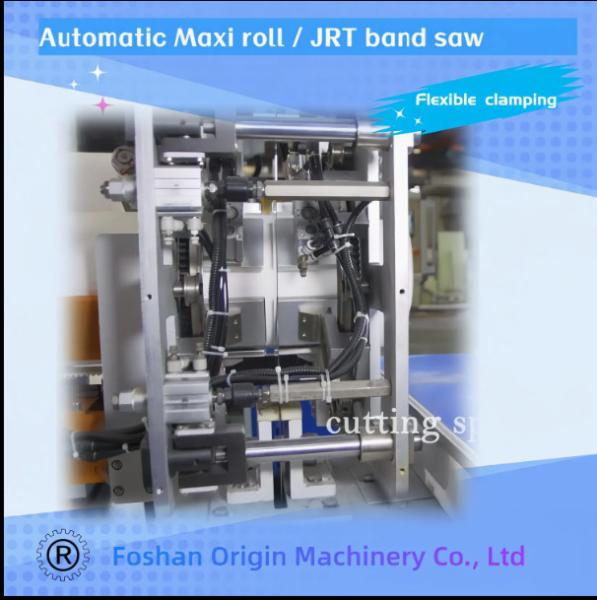

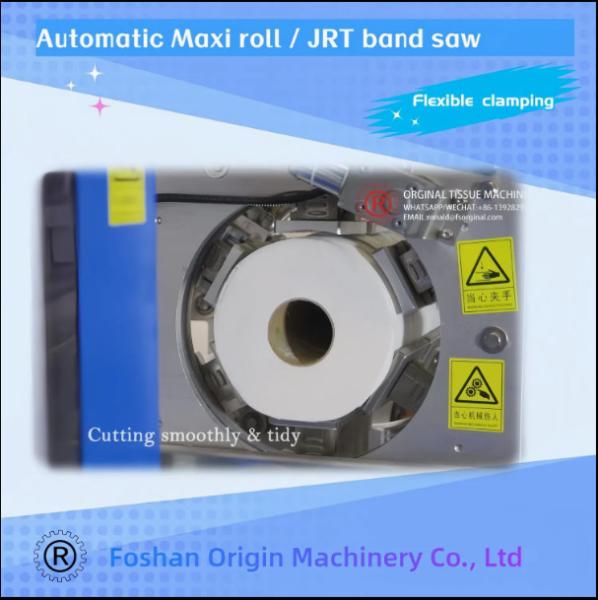

Flexible clamping system
Cutting roll diameter from 200-300mm is adjustable. The clamping system is controlled by HMI.

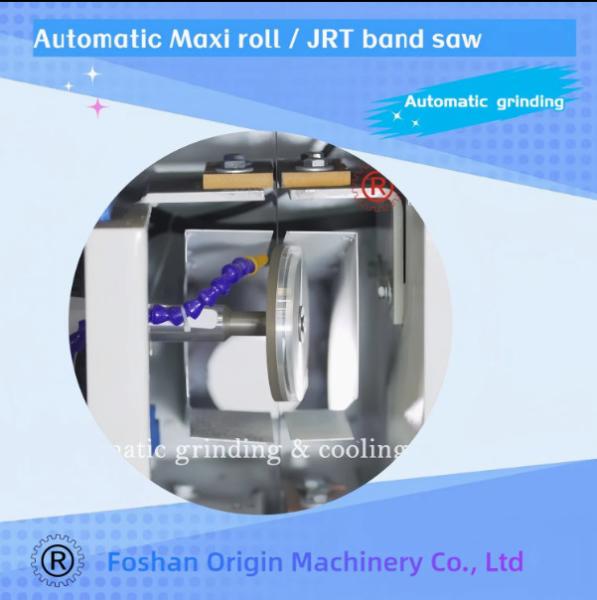

Automatic grinding system
The saw blade grinding is automatic.
Maxi Roll Band Saw JRT /HRT Industrial Roll Cutting Machine Cutter
Product Parameters
Machine Model DJ-PZ 3000
Parent roll dimension: width ≤ 3000mm
Ø150-300 mm
Slitting length 90-300mm
Adjustable clamping system Ø150-300 mm, adjustable diameter range Ø150-300 mm
Slitting lane One lane
Running speed 40cuts/min
Feeding Method Servo motor drives the pushers
Cutting Method cut by saw blade
Trimming 20mm---50mm
Cutting Accuracy Length tolerance±1mm
Blade Grinding System Automatic blade grinding
