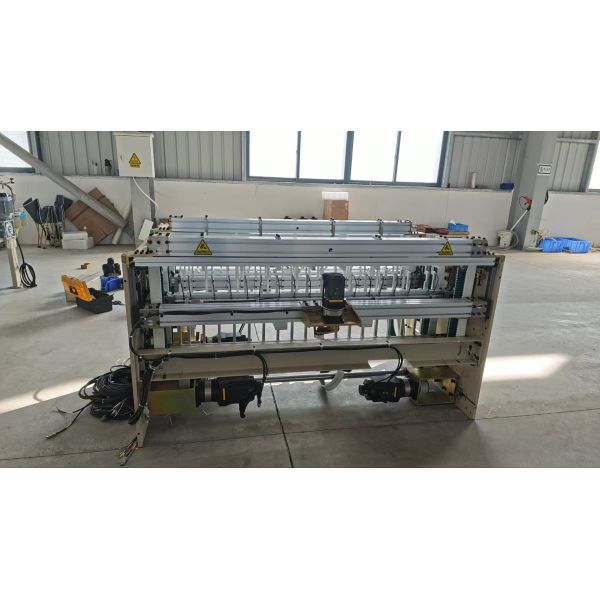

Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine
Specifications
Brand Name :
ORIGIN
Model Number :
DM-HC200-2000
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
30 days
Packaging Details :
wooden packing
speed :
12 logs/min
color :
white
Control :
PLC
Voltage :
380V ,50HZ
electric current :
20A
Description

Machine Features:
1. Equipped with glue lamination system, ideal for producing high-end value-added tissues such as V fold kitchen towels and hand towels. Produces fluffy, highly absorbent paper towels.
2. Utilizes high-precision engraved embossing rollers to create vivid, three-dimensional patterns. The roller surface is smooth and burr-free, ensuring well-defined and durable pattern formation.
3. Features an automatic circulating glue application system with adjustable glue dosage control, precise and even glue application.

Product Parameters
Machine Model HMJ-XL
Parent Roll Width 1500/2000/2800 mm (to be confirmed by customer)
Parent Roll diameter ≤1500mm
Unwinder driving Independent frequency driving, consistent unwinding web tension.
Folding function
4-roll folding
slitting Sheet size 175 / 180/190/200/210mm (to be confirmed by customer)
Sheet slitting structure Sprial slitting blades
Counting pneumatic log shfiting / ink mark
Embossing (options)
independent drive		 Multiple specifications 4-sides position embossing
Edge-embossing
Glue lamination
Glue free lamination
steel to rubber/felted/woolen /steel roller
Designed speed 130m/min
Prodution speed 100m/min
Driving system Independent variable frequency drives for each functional unit
Detailed Photos
Additionaly The Automatic Transfer for V Fold Folding Machine

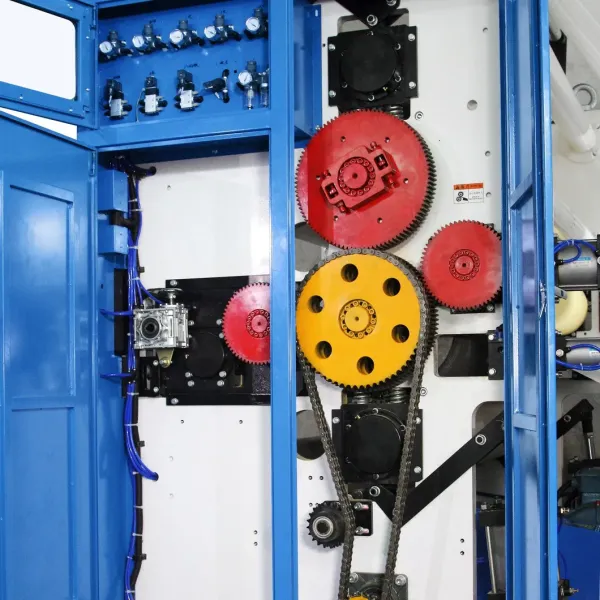

  1. Individual driving system

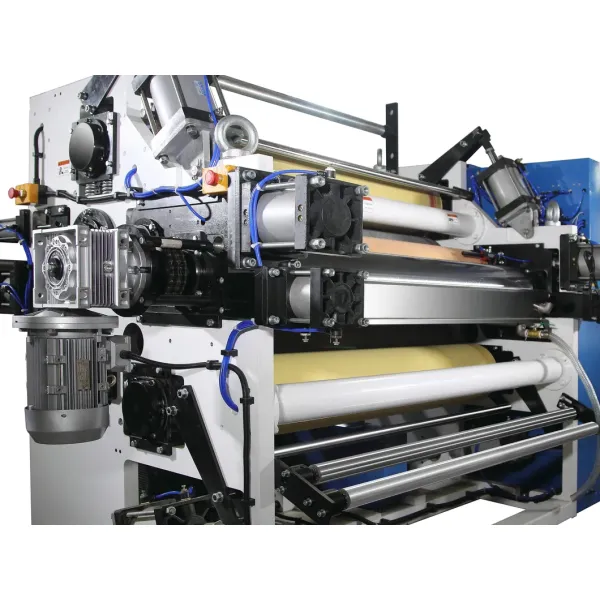

Lamiantion system
Additionaly The Automatic Transfer for V Fold Folding Machine
Additionaly The Automatic Transfer for V Fold Folding Machine

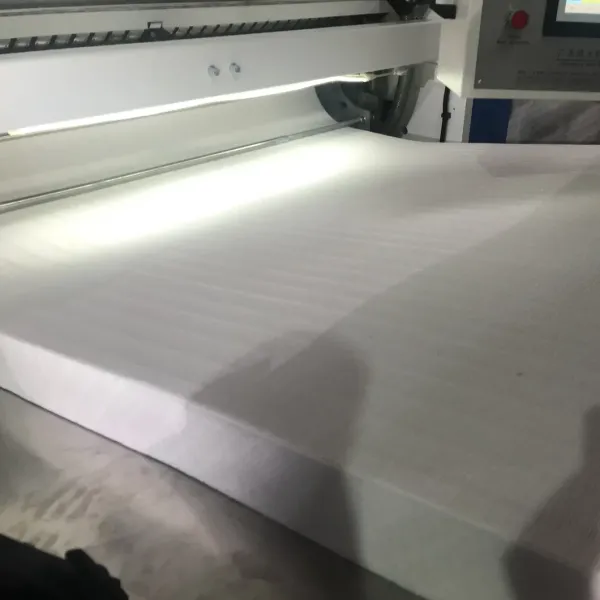

3. Tissue output

Additionaly The Automatic Transfer for V Fold Folding MachineAdditionaly The Automatic Transfer for V Fold Folding MachineAdditionaly The Automatic Transfer for V Fold Folding MachineAdditionaly The Automatic Transfer for V Fold Folding MachineAdditionaly The Automatic Transfer for V Fold Folding Machine
