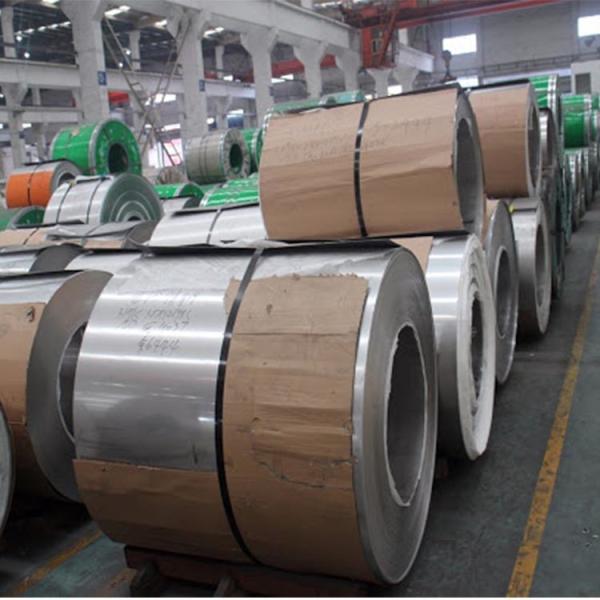

Mill Edge Stainless Steel Coil Strip Grades Finishes 1524 Mm
Mill Edge Stainless Steel Coil Strip Grades Finishes 1524 Mm
Specifications
Brand Name :
Stainless Steel
Model Number :
300 Series,400 Series
Certification :
ISO, AISI, ASTM, GB, EN, DIN, JIS
Place of Origin :
China
MOQ :
1 Ton
Price :
Contact Us
Payment Terms :
T/T L/C and Western Union etc.
Supply Ability :
10000 Ton/Tons per Month
Delivery Time :
Within 7-10 Working Days
Packaging Details :
Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package
Standard :
JIS, AiSi, ASTM, GB, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, etc.
Technique :
Hot Rolled , Cold Rolled , Extrusion
Grade :
300 Series,400 Series,200 Series,201/202/304 /304L/316/316L321/310s/410/420/430/440/439ect
Edge :
Mill Edge Slit Edge,SS Banding Strap with treated edges to ensure personal safety,Smooth Edge,Mill Edge/ Slitting Edge Stainless Steel
Price term :
CIF CFR FOB EX-WORK
Description

The austenitic grades, also known as the chromium nickel types, are usually non- magnet, an easy task to weld and form, and gives excellent resistance from corrosion and good creep amount of resistance. Austenitic grades are nonhardenable by heat treating. Cold working raises potency and efficacy. Typically the most popular austenitic grades are type 304 and type 316L. All of us carry stocks in 304, 304L and 316L for quick transport as well as have an international network of suppliers if your production schedule and quantities permit a longer lead time. Surface finish for stainless metal sheet( coil, strip) and dishes, are specified in EN 10088- 2 SYM 2005. 'Metal steel- Technical delivery conditions for sheet/ plate and strip of corrosion resisting steels for basic purposes. 'The conventional recognizes both 'ex- work' hot and cold folded finishes and 'special finishes', as useful finishes to attain specific aesthetic effects. When stainless steel was performed and offered in products, the time came to hear another process: stainless metal polishing. Stainless- polishing improves the overall surface finish of any metal product. This raises the sanitary advantages of the items aswell. Metal steel strips would be the expansion products of ultra- slim metal plates, usually long and narrow metal pieces are created to match the needs of varied and mechanical areas.

Product Specification and Steel Grade

ASTM AISI EN
Grade

S30100

S30400

S30403

S31008

S31603

S32100

S41008

S43000

S43932

S44400

S44500

301

304

304L

310S

316L

321

410S

430

-

444

-

1.4310

1.4301

1.4307

1.4845

1.4404

1.4541

-

1.4016

1.4510

1.4521

-

Available Size

Width Thickness Inner Diameter Available Steel Grade Surface Finish
610~1524 mm 0.3~3.0 mm 610 or 508 +0/-5 mm 201, 202, 204 Cu3, 301, 304, 304L, 310S, 316L, 321, 409L, 410S, 420J2, 430, 439, 441, 444, 445 2B, 2D, BA, No.3, No.4, No.5, SB, HL

Dimension and Shape Tolerance (For Reference)

Thickness (mm) 630 ≤ Width < 1000 (mm) 1000 ≤ Width < 1250 (mm) 1250 ≤ Width < 1550 (mm)
0.25 ≤ T < 0.40 ±0.030 ±0.035 -
0.40 ≤ T < 0.60 ±0.035 ±0.035 -
0.60 ≤ T < 0.80 ±0.040 ±0.040 -
0.80 ≤ T < 1.00 ±0.040 ±0.050 ±0.050
1.00 ≤ T < 1.25 ±0.050 ±0.055 ±0.060
1.25 ≤ T < 1.60 ±0.055 ±0.060 ±0.060
1.60 ≤ T < 2.00 ±0.065 ±0.070 ±0.080

Width Tolerance
Mill Edge Cut Edge
Aim ±10 Aim -0 / +1

Surface Finish Mill Edge Cut Edge
2B / BA 10 mm 5 mm
2D 20 mm 10 mm

Chemical Composition & Mechanical Property :

Chemical Composition (For Reference)

ASTM Specification

Steel Grade Ni% Max. Cr% Max. C% Max. Si% Max. Mn% Max. P% Max. S% Max. Mo% Max. Ti% Max. Other
S30100 6.0~8.0 16.0~18.0 0.15 1 2 0.045 0.03 - - N: 0.1 Max.
S30400 8.0~10.5 17.5~19.5 0.07 0.75 2 0.045 0.03 - - N: 0.1 Max.
S30403 8.0~12.0 17.5~19.5 0.03 0.75 2 0.045 0.03 - - N: 0.1 Max.
S31008 19.0~22.0 24.0~26.0 0.08 1.5 2 0.045 0.03 - - -
S31603 10.0~14.0 16.0~18.0 0.03 0.75 2 0.045 0.03 2.0~3.0 - N: 0.1 Max.
S32100 9.0~12.0 17.0~19.0 0.08 0.75 2 0.045 0.03 - 5(C+N)~0.7 N: 0.1 Max.
S41000 0.75 11.5~13.5 0.08~0.15 1 1 0.04 0.03 - - -
S43000 0.75 16.0~18.0 0.12 1 1 0.04 0.03 - - -
S43932 0.5 17.0~19.0 0.03 1 1 0.04 0.03 - - N:0.03Max.Al:0.15Max.Nb+Ti = [ 0.20 + 4 ( C + N ) ] ~ 0.75

Mechanical Property (For Reference)

ASTM Specification

Steel Grade N/mm 2 MIN.Tensile Stress N/mm 2 MIN.Proof Stress % MIN.Elongation HRB MAX.Hardness HBW MAX.Hardness Bendability:Bending Angle Bendability:Inside Radius
S30100 515 205 40 95 217 No Require -
S30400 515 205 40 92 201 No Require -
S30403 485 170 40 92 201 No Require -
S31008 515 205 40 95 217 No Require -
S31603 485 170 40 95 217 No Require -
S32100 515 205 40 95 217 No Require -
S41000 450 205 20 96 217 180° -
S43000 450 205 22A 89 183 180° -
S43932 415 205 22 89 183 180° -
