Specifications
Brand Name :
XPROMISE
Model Number :
XP-9140
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD4757-5008/UNIT
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
20 pcs/ one week
Delivery Time :
7 work days
Description

XP-9140

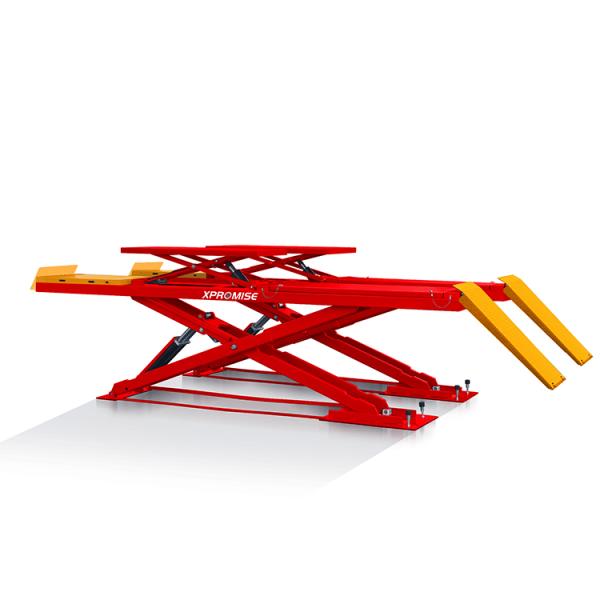

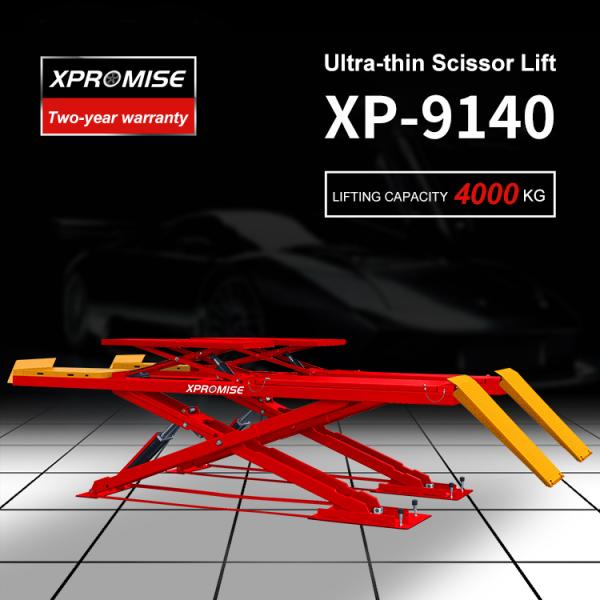

Ultra-thinScissorLift

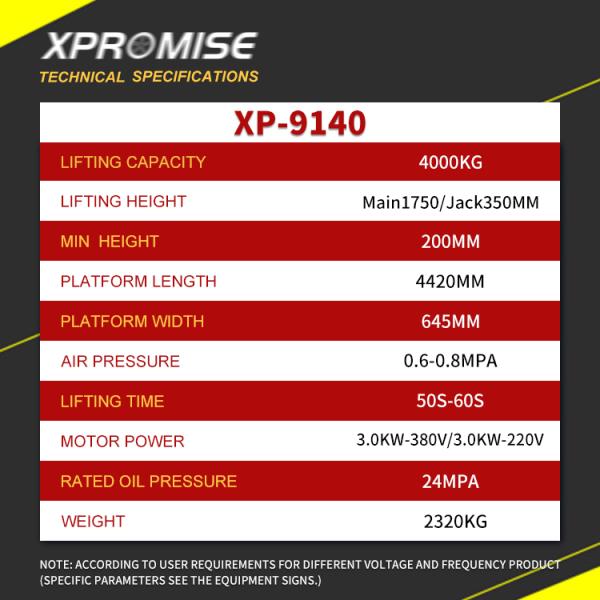

TECHNICAL SPECIFICATIONS

Lifting Capacity：4000kg

Lifting Height ：(Main)1750(jack)350mm

Min. Height：200mm

Lifting Time：50s-60s

Platform Length：4420mm

Platform Width：645mm

Motor Power：3.0KW-380V or 3.0KW-220V

Rated Oil Pressure：24MРа

Air Pressure：0.6-0.8Мра

Weight：2320kg

Note:According to user requirements for different voltage and frequency product (specific parameters see the equipmentsigns.)

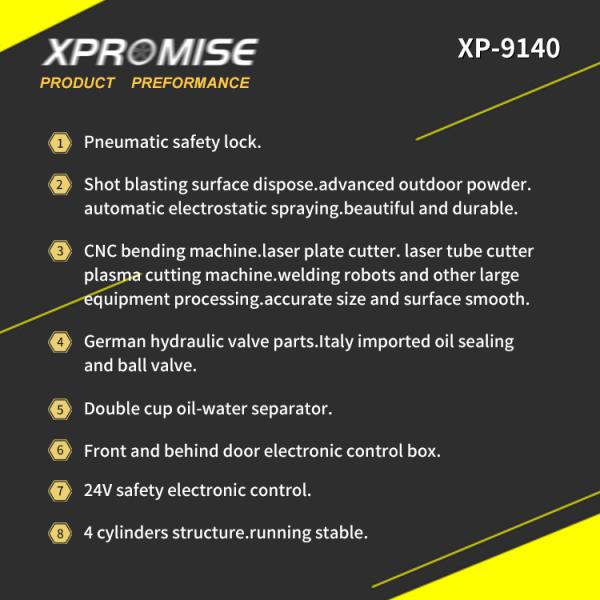

1.Pneumatic safety lock.

2.Shot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful anddurable.

3.CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, welding robots and other large equipment processing，accurate size and surface smooth.

4.German hydraulic valve parts, Italy imported oil sealing and ball valve.

5.Double cup oil-water separator.(Optional)

6.Front and behind door electronic control box.

7.24V safety electronic control.

8.4 cylinders structure, running stable.

WARRANTY：Whole machine warranty 2 years.

1.Up And Down Limit Switches(Optional)

2.Slave Cylinder Return Oil System

3.Oil Injection Hole,Plastic Cover

4.Explosion-proof Valve(Optional)

5.Laser Cutting Base

6.Photoelectric Switch(Optional)

7.Toolbox With Waist Hole

8.Secondary Upper Limit(Optional)
