Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure
Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure
Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure
Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure
Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure
Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure
Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure
Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure
Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure
Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure
Specifications
Brand Name :
XPROMISE
Model Number :
XP-9350
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD5117-5386/UNIT
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
20 pcs/ one week
Delivery Time :
7 work days
Description

High Quality For Wheel Alignment Scissor Car Lift


XP-9350

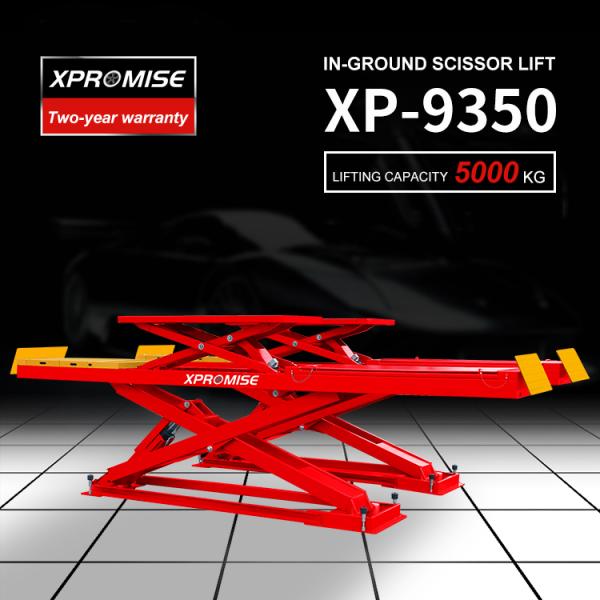

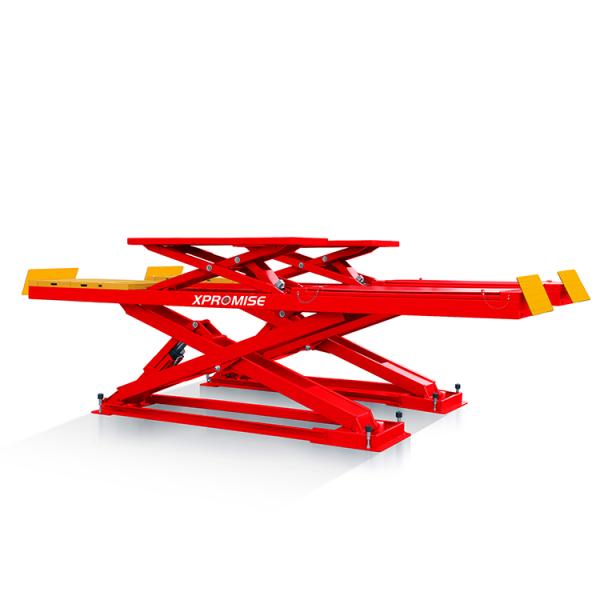

In-ground ScissorLift

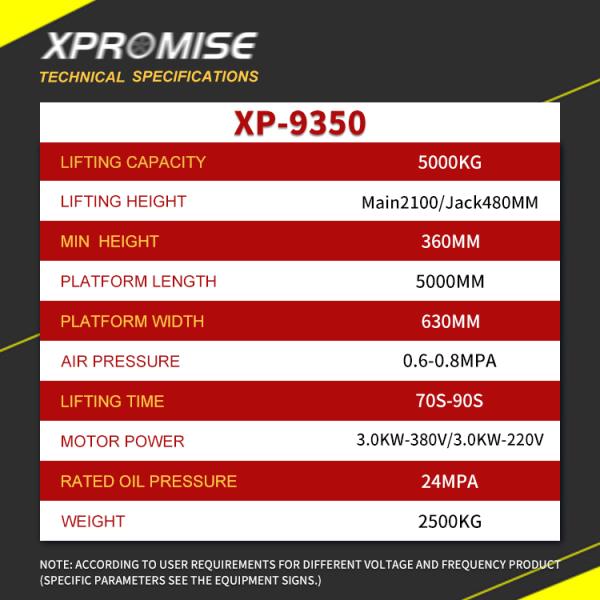

TECHNICAL SPECIFICATIONS

Lifting Capacity：5000kg

Lifting Height：(Main)2100(jack)480mm

Min. Height：360mm

Lifting Time：70s-90s

Platform Length：5000mm

Platform Width：630mm

Motor Power：3.0KW-380V or 3.0KW-220V

Rated Oil Pressure：24MРа

Air Pressure：0.6-0.8Мра

Weight：2500kg

Note: According to user requirements for different voltage and frequency product (specific parameters see the equipmentsigns.)

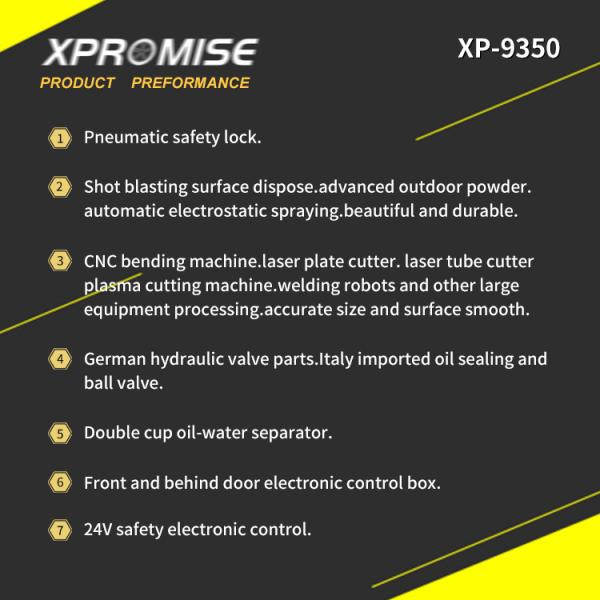

1.Pneumatic safety lock.

2.Shot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful anddurable.

3.CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, welding robots and other large equipment processing，accurate size and surface smooth.

4.German hydraulic valve parts, Italy imported oil sealing and ball valve.

5.Double cup oil-water separator.（Optional）

6.Front and behind door electronic control box.

7.24V safety electronic control.

WARRANTY：Whole machine warranty 2 years.

1.Top Limit Switch（Optional）

2.Lower Limit Switch（Optional）

3.Slave Cylinder Return Oil System

4.Explosion-proof Valve（Optional）

5.Oil Injection Hole,Plastic Cover

6.One Board SideSlip

7.Photoelectric Switch（Optional）

8.Secondary Upper Limit（Optional）

9.Secondary Lifting to Prevent Rollover（Optional）

Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure

Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure

Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure

Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure

Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure

Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure

Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure

Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure

Car Wheel Alignment Scissor Lift 5000kg 0.6 - 0.8Мра Air Pressure
