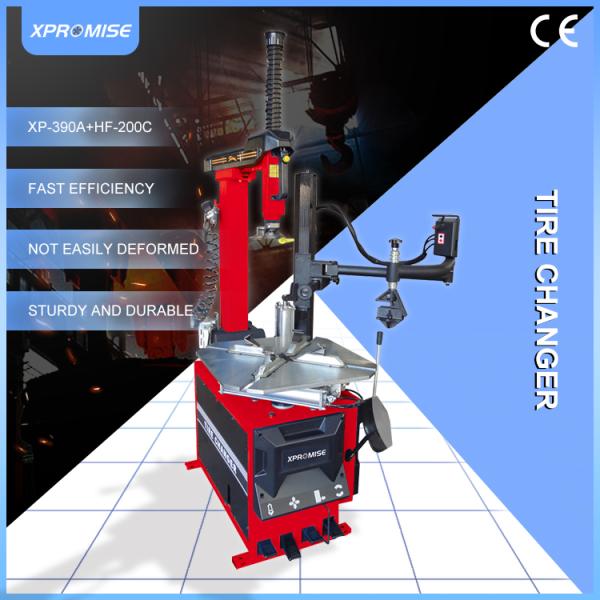

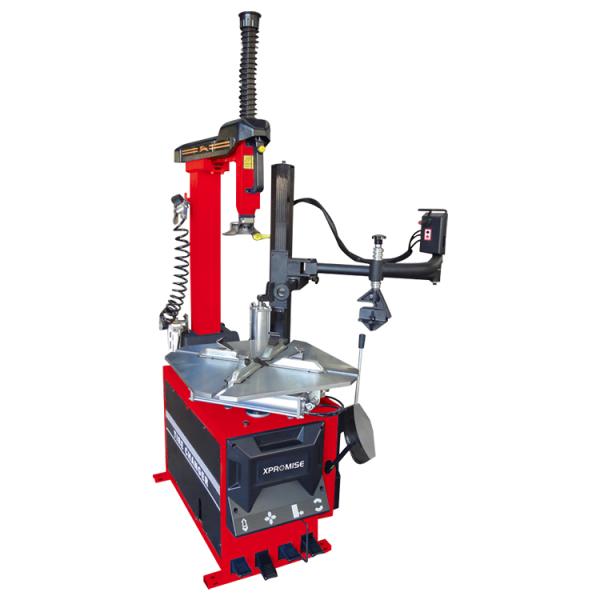

XP-390A+HF-200C
Tire Changer

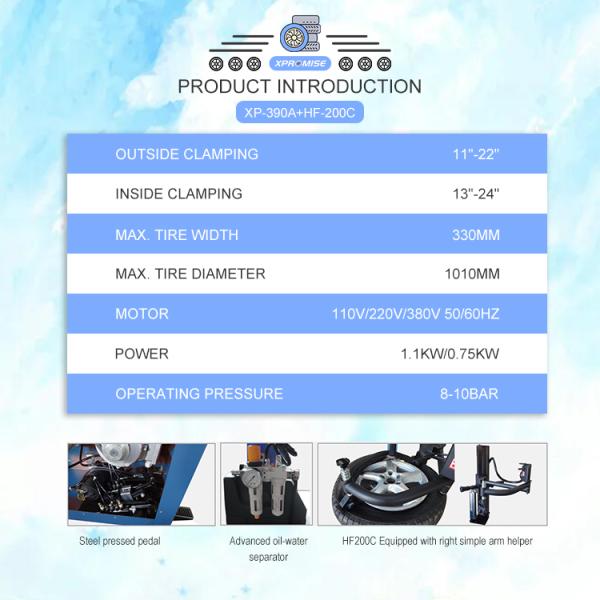

Technical Parameter
Outside Clamping:11"-22"
Inside Clamping:13"-24"
Max. Tire Width:330mm
Max. Tire Diameter:1010mm
Motor:110V/220V/380V 50/60HZ
Power:1.1KW/0.75KW
Operating Pressure:8-10bar

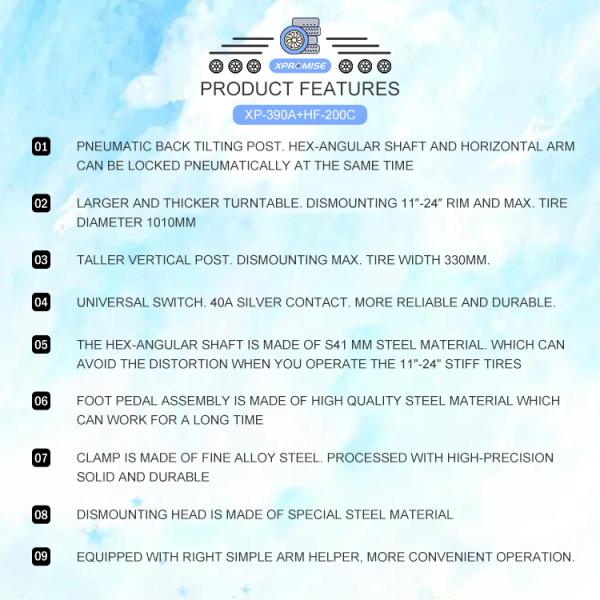

Product Introduction
1.Pneumatic back tilting post,hex-angular shaft and horizontal arm can be locked pneumatically at the same time.
2.Larger and thicker turntabledismounting11"-24" rim and max tire diameter 1010mm.
3.Tallervertical post dismounting max tire width 330mm.
4.Universalswitch. 40A silver contact, more reliable and durable.
5.Theshaft is made of S41 mm steel material,which can avoid the distortion when you operate the 11"-24 stiff tires.
6.Foot pedal assembly is made of high qualitysteel material which can work for a long time.
7.Clamp is made of fine alloy steel, processed with high-precision,solid and durable.
8.Dismounting head is made of special steel material
9.Equipped with right simple arm helper,more convenient operation.
Steel pressed pedal.
10.Advanced oil-water separator.
11.HF-200C Equipped with right simple arm helper.
