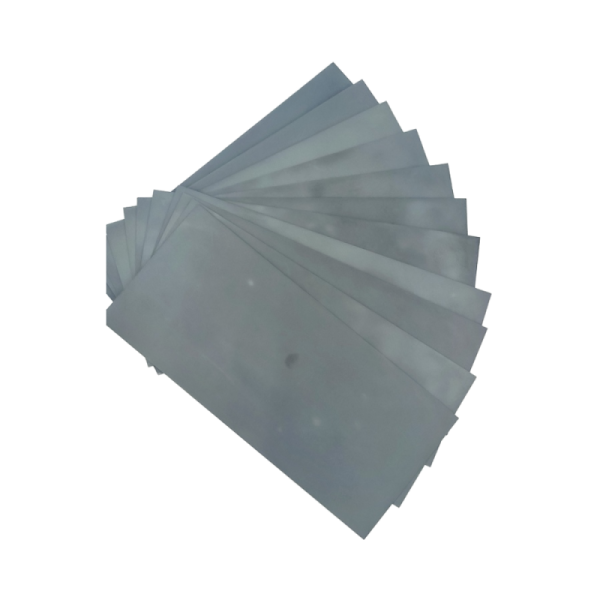

Silicon Nitride Ceramic Substrate For El
Silicon Nitride Ceramic Substrate For El
Specifications
Brand Name :
Jingnawei
Model Number :
as you need
Place of Origin :
Henan
MOQ :
1 peice
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500,000 tablets per month
Delivery Time :
5-8 days
Packaging Details :
box
Description

1. High thermal conductivity, meeting the heat dissipation requirements of devices;

2. Good heat resistance, meeting the high-temperature (more than 200℃) application requirements of power devices;

3. Thermal expansion coefficient matching, matching with the thermal expansion coefficient of chip material, reducing packaging thermal stress;

4. Low dielectric constant, good high frequency characteristics, reducing the signal transmission time of the device and improving the signal transmission rate;

5. High mechanical strength, meeting the requirements of mechanical properties in the process of device packaging and application;

6. Good corrosion resistance, able to withstand strong acid, strong alkali, boiling water, organic solution and other corrosion;

7. Compact structure, meeting the requirements of airtight packaging of electronic devices;

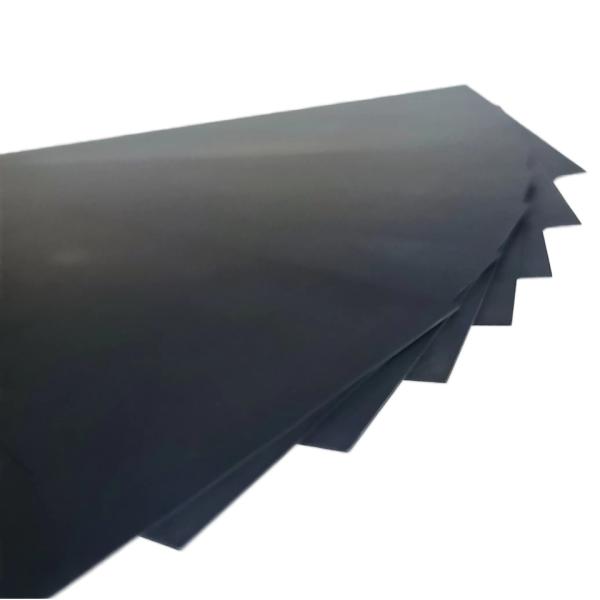

Silicon Nitride Ceramic Substrate


Silicon Nitride Ceramic Substrate For El


Substrate material Si3N4 AIN Al2O3
Strength /(MPa)600~700350400
Fracture toughness/(MPa·m½)6.0-7.02.73
Thermal conductivity/[W/(m·K)]≥90≥150≥25
Current carrying capacity /A≥300100~300≤ 100
Thermal resistance /(℃ /W)≤0.5≤0.5≥0.1
Reliability/time≥5000200300
Use-costhigherhigherlow


Note : As customers demands

Silicon Nitride Ceramic Substrate For El




Silicon Nitride Ceramic Substrate For El




Application:


high-power power semiconductor module; Semiconductor refrigerator, electronic heater; Power control circuit, power hybrid circuit. Intelligent power components; High frequency switching power supply, solid state relay. Automotive electronics, aerospace and military electronic components. Solar panel assembly; Telecommunications private exchange, receiving system; Laser and other industrial electronics.



Company Information


Silicon Nitride Ceramic Substrate For El


Silicon Nitride Ceramic Substrate For ElSilicon Nitride Ceramic Substrate For El





Packaging & Shipping


Silicon Nitride Ceramic Substrate For El



FAQ


1. Q : Are you manufacturer ?
A : Yes , we are manufacturer and product more than 10 years .


2.Q : Can you provide free samples ?
A : Yes , The sample is free .


3.Q: What is your MOQ ?
A : 1 pcs , We accept smaller quantity but price is higher .


4.Q : What is your production time for bulk order ?
A : 7-10 days , According to order quantity .
