TINOX TPW-716 Hybrid Pigment White with 70% TiO₂ Content Hegman 6 and Brightness L* ≥ 96.0 for Superior Coatings
TINOX TPW-716 Hybrid Pigment White with 70% TiO₂ Content Hegman 6 and Brightness L* ≥ 96.0 for Superior Coatings
TINOX TPW-716 Hybrid Pigment White with 70% TiO₂ Content Hegman 6 and Brightness L* ≥ 96.0 for Superior Coatings
TINOX TPW-716 Hybrid Pigment White with 70% TiO₂ Content Hegman 6 and Brightness L* ≥ 96.0 for Superior Coatings
TINOX TPW-716 Hybrid Pigment White with 70% TiO₂ Content Hegman 6 and Brightness L* ≥ 96.0 for Superior Coatings
TINOX TPW-716 Hybrid Pigment White with 70% TiO₂ Content Hegman 6 and Brightness L* ≥ 96.0 for Superior Coatings
Specifications
Brand Name :
TINOX
Model Number :
TPW-716
Certification :
REACH ISO9001
Place of Origin :
China
MOQ :
20MT
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union,D/A
Supply Ability :
5000MT MONTHLY
Delivery Time :
7DAYS
Packaging Details :

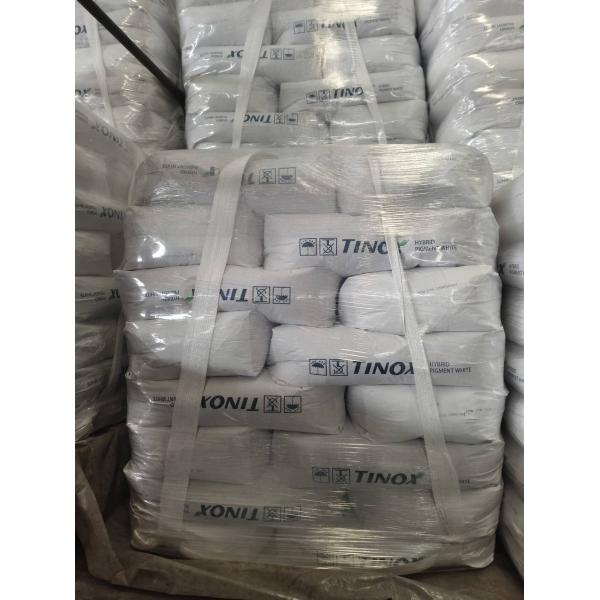

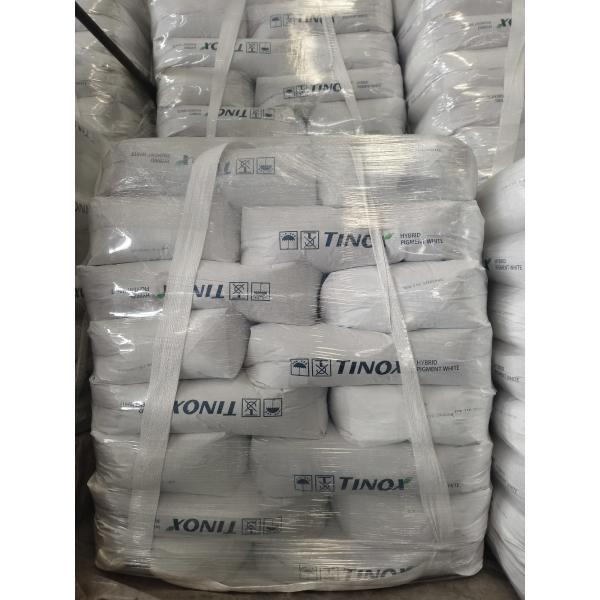

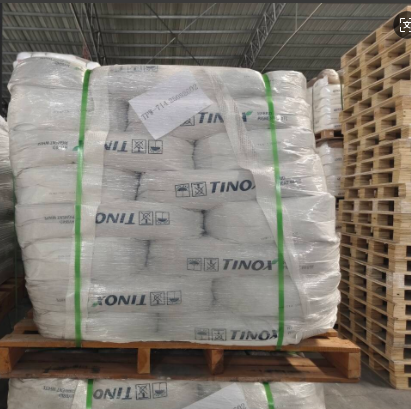

25kg bag with pallet
Tio2 content :
70%
Hegman :
6
Description
TINOX TPW-716 Hybrid Pigment White
Premium Performance Hybrid Pigment for Superior Coatings

TINOX TPW-716 is an advanced hybrid pigment based on rutile-type TiO₂, engineered specifically for high-performance paint and coating applications. Through a proprietary manufacturing process that combines premium TiO₂ pigment components with ultra-fine functional fillers, TPW-716 enhances light scattering efficiency while reducing TiO₂ consumption without compromising optical performance.

Exceptional Performance Advantages
Superior Optical Properties

Brightness L* ≥ 96.0 with bluish undertone for exceptional whiteness and visual appeal

Excellent Gloss Development

Enhanced surface reflectivity and gloss stability for premium finishes

Strong Hiding Power

Outstanding coverage with reduced pigment loading requirements

Enhanced Durability

Improved abrasion resistance, weather resistance, and coating film hardness

Excellent Dispersion

Hegman ≥ 6.5 for easy incorporation and reduced processing time

Environmental Benefits

Lower CO₂ emissions per unit compared to pure TiO₂

Technical Specifications
Parameter Value
TiO₂ content ≥74.0%
Rutile content ≥99.0%
Brightness L* ≥96.0
Oil absorption ≤20 g/100g
Relative Humidity (105°C) ≤0.5%
Post-treatment Al, Zr, P, organic
pH value 6.5-8.5
Performance Validation
  • Whiteness index nearly matching premium TiO₂ pigment R-2160
  • Superior performance compared to standard TiO₂ pigment R-2140
  • Excellent opacity levels comparable to pure TiO₂ pigments
  • Outstanding gloss development for high-quality finishes
Recommended Formulation
High-Gloss Water-Based Acrylic Enamel (Based on Test Data)
Component Function Content (%)
Deionized Water Solvent 18.0
Dispersing Agent Pigment dispersion 0.6
Wetting Agent Surface tension reduction 0.3
TINOX TPW-716 Primary pigment 22.0
Acrylic Emulsion (50%) Binder 45.0
Coalescing Agent Film formation 2.5
Defoamer Foam control 0.4
Rheology Modifier Viscosity control 0.8
Preservative Biostability 0.2
Ammonia (28%) pH adjustment 0.2
Water (adjustment) Final adjustment 10.0
Processing Instructions:
  1. Add water, dispersing agent, and wetting agent to mixing vessel
  2. Slowly add TINOX TPW-716 under moderate agitation (800-1000 rpm)
  3. Increase agitation speed to 1500-2000 rpm for 15-20 minutes until Hegman fineness ≥6.5 is achieved
  4. Reduce speed and slowly add acrylic emulsion
  5. Add coalescing agent, defoamer, rheology modifier, and preservative
  6. Adjust pH to 7.5-8.5 with ammonia solution
  7. Add remaining water to achieve desired viscosity
  8. Filter and package
Expected Performance (Based on Tinox Test Data):
  • Whiteness Index: ≥96.5
  • Gloss (60°): ≥85 GU
  • Contrast Ratio: ≥0.98
  • Yellowness Index: <1.5
  • PVC: ~25%

Note: This formulation is based on test data from the TINOX TPW Series brochure, specifically the acrylic enamel paint tests with 75% emulsion content (PVC = 25%).

TINOX CHEMIE GMBH
Lütticher Straße 132, 40547 Düsseldorf, Germany
Tel: +49 (0)211 52809600
Email: jojo@tinoxchem.com
Web: www.tinoxchem.com
