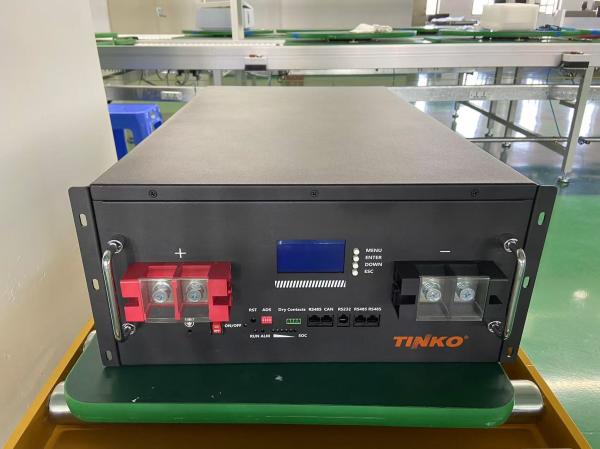

Introducing our state-of-the-art Rack-Mount 48V 280AH LiFePO4 Battery, designed to meet the power storage needs of both home and commercial applications. This high-capacity battery is the perfect solution for any solar system, delivering a robust performance while ensuring safety and longevity.
Upgrade your energy solution with our Rack-Mount 48V 280AH LiFePO4 battery--a reliable choice for sustainable power storage and performance. Ideal for your solar system, this battery embodies the ultimate in technology and efficiency, ensuring you have the power you need at your fingertips.
Battery Pack | No. | Item | General Parameter | Remark |
---|---|---|---|---|
1 | Combination method | 16S1P | ||
2 | Rated Capacity | Typical | 280Ah | Standard discharge after Standard charge(for the whole battery pack) |
3 | Factory Voltage | 51V-53V(40-60%) | Operation Voltage | |
4 | Voltage at end of Discharge | 40V | Discharge Cut-off Voltage | |
5 | Voltage at end of Charge | 58.4V | Charge Cut-off Voltage | |
6 | Internal Impedance | ≤40mΩ | Internal resistance measured at AC 1KHZ after 50% charge | Should use those battery which finished within 1week after shipment and cycles less than 5times to do the measurement |
7 | Standard charge | Constant Current 140A | Charge time : Approx 2h | Limiting current | 280A |
8 | Standard discharge | Constant current:140A | ||
9 | Maximum Continuous Charge Current | 280A | ≥10ºC | |
10 | Operation Temperature Range | Charge : 0~55℃ | 60±25%R.H.Bare Cell | Discharge : -20~60℃ |
11 | Storage Temperature Range | Less than 12 months :-10~35℃ | 60±25%R.H.at the shipment state | Less than 3 months: -10~45 Less than 7 day : -20~65℃ |
12 | Dimensions | 780*458*225mm | Include Bracket | |
13 | Weight | Approx :110kg |
