Complex Geometry Precision Stamping - Multi-Slide / Fine Blanking
Complex Geometry Precision Stamping - Multi-Slide / Fine Blanking
Complex Geometry Precision Stamping - Multi-Slide / Fine Blanking
Complex Geometry Precision Stamping - Multi-Slide / Fine Blanking
Complex Geometry Precision Stamping - Multi-Slide / Fine Blanking
Complex Geometry Precision Stamping - Multi-Slide / Fine Blanking
Specifications
Brand Name :
TF
Model Number :
TF-012
Certification :
ISO 9001 / IATF 16949
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
0.07-0.23USD
Payment Terms :
T/T
Supply Ability :
10000000pieces/per month
Delivery Time :
3days/Start
Packaging Details :
Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements)
Product Type :
Irregular Brackets / Multi-directional Bending Parts / Precision Valve Plates / Robot Joint Components / Smart Sensor Core Parts
Main Material :
Stainless Steel / Copper Alloy / Titanium Alloy / High-temp Alloy / Beryllium Copper
Material Thickness :
0.2-0.5mm / 0.5-1.0mm / 1.0-2.0mm / 2.0-4.0mm
Process Type :
Multi-slide Forming / Fine Blanking / Compound Stamping / In-die Tapping / In-die Riveting
Min. Bending Radius :
0.1mm / 0.2mm / 0.3mm / 0.5mm
Fine Blanked Surface Roughness :
Ra 0.4μm / Ra 0.8μm / Ra 1.6μm
Tolerance Grade :
Precision (±0.02mm) / High-Precision (±0.01mm)
Mold Life :
500K-1M cycles / 1M-2M cycles / ≥2M cycles
Application Industry :
Robotics / Smart Energy / Med-Tech / AI Hardware
Description
Complex Geometry Precision Stamping - Multi-Slide / Fine Blanking
Precision Stamping Capabilities

Tingfeng Hardware excels in precision stamping of complex geometries, providing multi-slide forming and fine blanking solutions for robot joints and smart sensors. Multi-slide formers complete 3D bending, curling, and side piercing in one pass, while fine blanking achieves fully sheared bright surfaces for parts with high functional surface requirements.

We specialize in solving challenges with micro irregular shapes, internal/external teeth, and local thickening, achieving high material utilization and dimensional consistency.

Advanced Manufacturing Process

Complex geometry parts for smart devices often require multiple process combinations. Multi-slide formers use horizontal motion mechanisms to achieve 3D bending, curling, and side piercing in one pass, eliminating secondary operations - ideal for irregular brackets in robot joints.

Fine blanking uses three-directional forces to obtain fully sheared bright surfaces for precision valve plates and gears in smart sensors requiring high functional surfaces. By combining in-die tapping and riveting, we provide highly integrated complex parts.

Complex Geometry Precision Stamping - Multi-Slide / Fine Blanking
Features & Advantages
Feature Advantage to You
Multi-slide 3D forming Complex 3D shapes in one feed, eliminating multi-step cumulative error
Fine blanking burnish control Sheared surface smooth, no tearing, usable as functional surface, saving machining
In-die tapping/riveting Integrated post processes, reducing handling, shortening lead time
Irregular part tooling experience Extensive database, quick feasibility assessment
High material utilization Optimized strip layout, less scrap, suitable for precious metals
Complex Geometry Precision Stamping - Multi-Slide / Fine Blanking
Technical Specifications
Formable Features Bending / Flanging / Curling / Side piercing / Tapping One-pass
Min. Bending Radius 0.1 mm (material dependent) No cracks
Fine Blanked Surface Roughness Ra 0.4μm -- 1.6μm Burnish ≥90%
Max. Fine Blanking Thickness 6 mm Customizable
Multi-slide Wire Diameter Range 0.5 mm -- 3.0 mm For irregular shapes
Hole Position Accuracy ±0.01 mm Die guaranteed
Flatness ≤ 0.03mm / 20mm Leveling available
Local Thickening Capability Up to 1.5x original thickness In-die upsetting
Complex Geometry Precision Stamping - Multi-Slide / Fine Blanking
Industry Applications

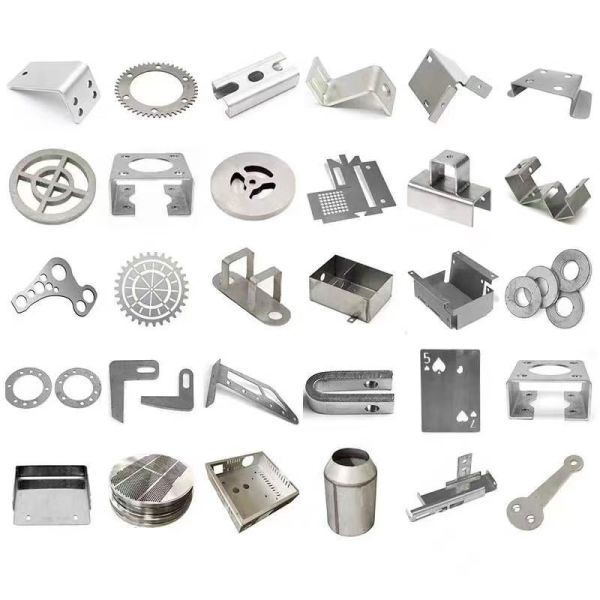

  • Humanoid & Service Robotics: Humanoid robot joint irregular brackets, service robot arm connectors, robot finger joint precision parts
  • Smart Sensors: Pressure sensor core valve plates, accelerometer precision brackets, gyroscope structural parts
  • Smart Energy: Smart meter internal precision gears, energy management system valve plates
  • Med-Tech: Minimally invasive surgical instrument joints, medical robot actuator components
Frequently Asked Questions
Can you handle complex custom designs and provide design optimization suggestions?
Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
How do you ensure quality consistency and handle defect issues?
We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
What are your lead times and how do you handle urgent orders?
Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Will I get timely responses and professional support throughout the project?
Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Can you provide material certifications and environmental compliance reports?
Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
How do you protect my designs and intellectual property?
We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
What are your payment terms and MOQ requirements?
We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
