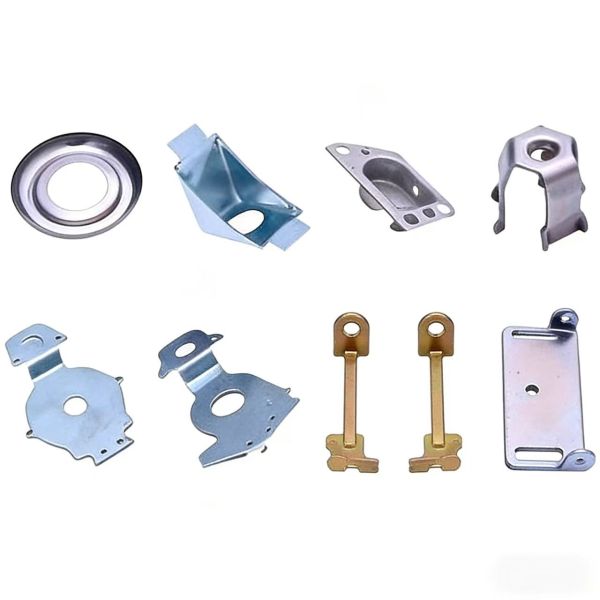

Complex Miniature Precision Stamping - Difficult Parts Specialists
Complex Miniature Precision Stamping - Difficult Parts Specialists
Complex Miniature Precision Stamping - Difficult Parts Specialists
Complex Miniature Precision Stamping - Difficult Parts Specialists
Complex Miniature Precision Stamping - Difficult Parts Specialists
Complex Miniature Precision Stamping - Difficult Parts Specialists
Specifications
Brand Name :
TF
Model Number :
TF-007
Certification :
lSO9001
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
0.07-0.23USD
Payment Terms :
T/T
Supply Ability :
10000000pieces/per month
Delivery Time :
3days/Start
Packaging Details :
Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements)
Product Type :
Micro Brackets / Irregular Connectors / Sensor Core Parts / Micro Motor Components / Robot Joint Parts
Main Material :
Stainless Steel 304 / Stainless Steel 316L / Titanium Alloy / Molybdenum Sheet / Invar Alloy
Material Thickness :
0.08-0.15mm / 0.15-0.3mm / 0.3-0.5mm / 0.5-0.8mm
Process Type :
Multi-slide Forming / Fine Blanking / Micro Blanking / Micro Drawing / In-die Tapping
Min. Hole Diameter :
Φ0.2mm / Φ0.3mm / Φ0.5mm / Φ0.8mm
Tolerance Grade :
Precision (±0.01mm) / High-Precision (±0.005mm)
Complex Features :
Blind Holes / Dimples / Burring / Internal Threads / Multi-directional Bends
Application Industry :
Robotics / Smart Energy / Med-Tech / AI Infrastructure
Description
Complex Miniature Precision Stamping - Difficult Parts Specialists
Precision Stamping Parts Quick Detail

Tingfeng Hardware specializes in micro precision stamping, focusing on high-complexity precision hardware for humanoid robots and AI infrastructure. Equipped with 30+ station progressive dies, multi-slide machines, and fine blanking equipment, we achieve minimum hole diameter of 0.2mm and wall thickness of 0.08mm. Our independent mold design team has extensive experience in irregular part development, solving "hard-to-make" challenges at the source. The IATF 16949 quality system runs throughout our processes, providing stable and reliable precision components for smart products.

Precision Stamping Parts Product Description

Complex micro stampings are core components for robot joints, AI sensors, and liquid cooling systems. Our engineering team excels in MIM alternative processes, micro blanking, and micro drawing, achieving micro arrays with 0.1mm pitch, 0.3mm deep blind holes, and internal thread forming. By intervening at the DFM stage, we optimize part structure with customers, eliminating potential forming risks. Whether micro brackets for robot finger joints or precision flow channel plates for AI server cooling systems, we guarantee precision delivery.

Complex Miniature Precision Stamping - Difficult Parts Specialists
Precision Stamping Parts Features & Advantages
Feature Advantage to You
High-precision micro blanking Die clearance as low as 0.005mm, burr-free blanking, ideal for precision sensors
Multi-slide/multi-station integration Complex forming in one feed, reducing cumulative error, improving robot part consistency
Special material forming Process titanium, molybdenum alloys, meeting special performance needs of smart devices
Full-process quality control A comprehensive system encompassing incoming inspection, first-piece approval, in-process patrol inspection, and outgoing inspection
Rapid sampling capability Supporting smart product R&D iteration, engineering samples in 5-7 days
Complex Miniature Precision Stamping - Difficult Parts Specialists
Precision Stamping Parts Specifications
Specification Item Detail / Range Tolerance / Standard
Min. Hole Diameter 0.2 mm (material dependent) ±0.005mm
Min. Wall Thickness 0.08 mm Progressive die guarantee
Flatness ≤ 0.02mm / 10mm Customizable
Hole Position Accuracy ±0.01 mm Die guarantee
Formable Features Blind holes, dimples, burring, coining, internal threads No cracks
Material Thickness Range 0.08 mm -- 1.0 mm For micro parts
Max. Stations 32 stations Progressive die
Surface Roughness Ra 0.4μm -- 1.2μm Process dependent
Complex Miniature Precision Stamping - Difficult Parts Specialists
Precision Stamping Parts Applications
  • Humanoid & Service Robotics: Robot finger joint brackets, service robot sensor brackets, robot motor core components
  • AI Infrastructure: AI server liquid cooling precision flow channel plates, GPU cooling module mounting brackets
  • Smart Energy: Micro inverter structural parts, energy harvesting sensor core components
  • Advanced Med-Tech: Micro surgical instruments, implantable device precision parts
Frequently Asked Questions
Q: Can you handle complex custom designs and provide design optimization suggestions?

A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.

Q: How do you ensure quality consistency and handle defect issues?

A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.

Q: What are your lead times and how do you handle urgent orders?

A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.

Q: Will I get timely responses and professional support throughout the project?

A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.

Q: Can you provide material certifications and environmental compliance reports?

A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.

Q: How do you protect my designs and intellectual property?

A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.

Q: What are your payment terms and MOQ requirements?

A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
