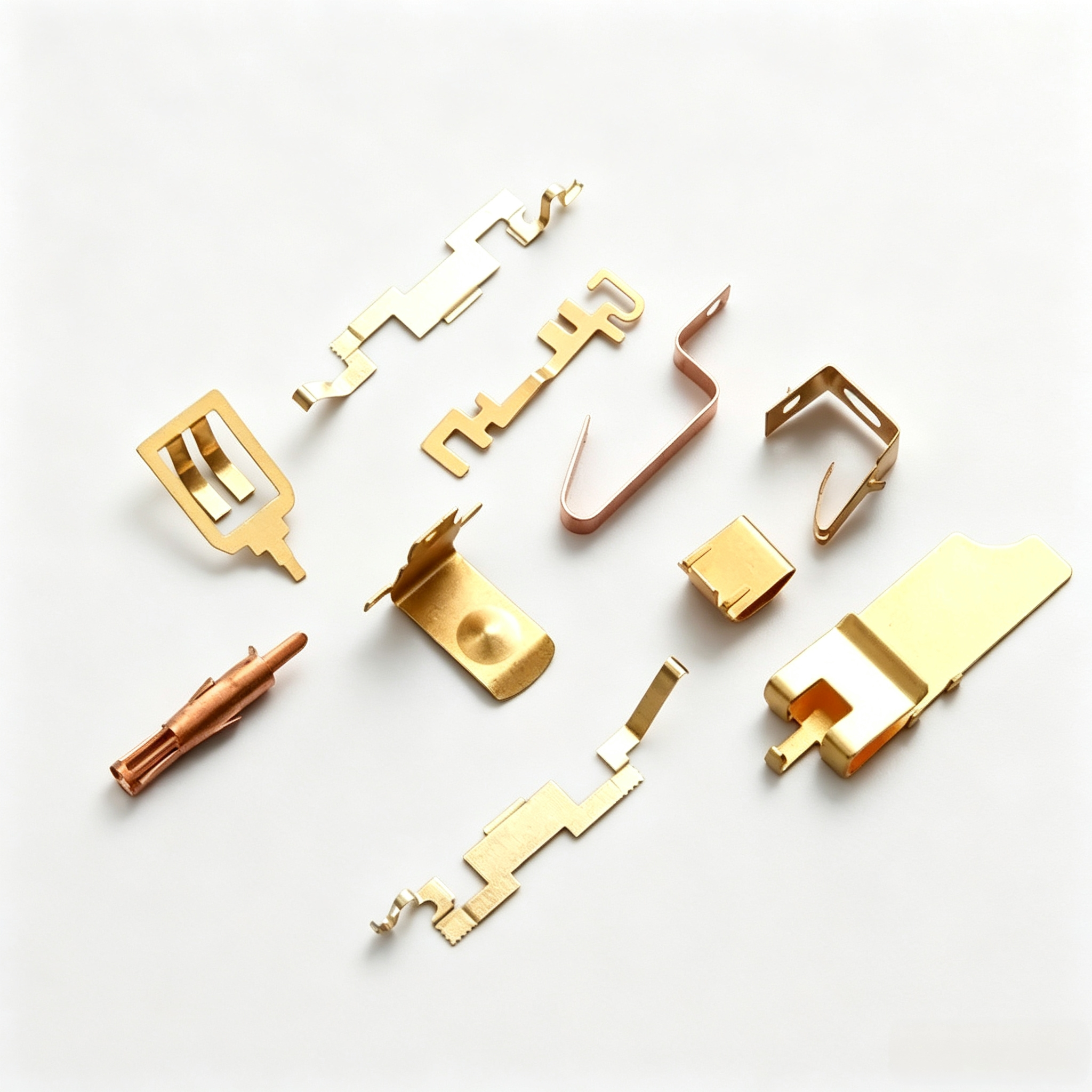

Custom Stamped Terminals & Pins – Precision Metal Stamping for Connector Applications
Custom Stamped Terminals & Pins – Precision Metal Stamping for Connector Applications
Custom Stamped Terminals & Pins – Precision Metal Stamping for Connector Applications
Custom Stamped Terminals & Pins – Precision Metal Stamping for Connector Applications
Custom Stamped Terminals & Pins – Precision Metal Stamping for Connector Applications
Custom Stamped Terminals & Pins – Precision Metal Stamping for Connector Applications
Specifications
Model Number :
TF-001
Tolerance Grade :
Precision (±0.02mm) / High-Precision (±0.01mm)
Brand Name :
TF
Drawing Format :
PDF / STEP / DWG/DXF / IGES
Packaging Details :
Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements)
Payment Terms :
T/T
Main Material :
Brass / Phosphor Bronze / Beryllium Copper / Stainless Steel
Surface Finish :
Gold Plating / Tin Plating / Silver Plating / Nickel Plating / Selective Plating
Supply Ability :
10000000pieces/per month
Product Type :
Stamped Terminals / Connector Pins / Pin Contacts / Wiring Terminals
MOQ :
1
Delivery Time :
3days/Start
Mating Cycles :
≥3000 cycles / ≥5000 cycles / ≥10000 cycles
Price :
0.07-0.23USD
Material Thickness :
0.1-0.3mm / 0.3-0.5mm / 0.5-0.8mm
Certification :
lSO9001
Place of Origin :
Shenzhen, China
Process Type :
Progressive Die Stamping / Fine Blanking / Bending Forming / Selective Plating
Description
Custom Stamped Terminals & Pins – Precision Metal Stamping for Connector Applications
Precision Manufacturing Services
Tingfeng Hardware provides custom stamped terminals and pins precision manufacturing services for connector applications. Using brass, phosphor bronze, beryllium copper, and other conductive materials, we produce high-precision, high-reliability connector terminals and pins through precision progressive die stamping and selective plating processes. With 16 years of precision manufacturing experience, we support full-process custom services from drawing review to mass production.
Product Description
Stamped terminals and pins are the core conductive components of connectors, directly affecting signal transmission stability and reliability. Our products achieve one-step forming of complex terminal shapes through precision progressive die stamping, supporting customized geometries, tolerances, and plating solutions. Using brass, phosphor bronze, or beryllium copper materials, combined with gold, tin, or selective plating processes, we meet the requirements of various applications for conductivity, corrosion resistance, and mating cycles. Each terminal undergoes 100% dimensional inspection and continuity testing, ensuring batch consistency. From design optimization to batch delivery, we provide complete engineering support.
Custom Stamped Terminals & Pins – Precision Metal Stamping for Connector Applications
Product Features & Advantages
Feature Advantage to You
Multiple conductive material options Full coverage of brass, phosphor bronze, beryllium copper, meeting diverse conductivity and strength requirements
Selective plating process Gold/silver plating only on contact areas, reducing cost while ensuring performance
One-step forming of complex terminal shapes Multi-station progressive dies integrate bending, piercing, forming, reducing cumulative error
High mating cycle design Mating cycles ≥5000, suitable for high-frequency connection applications
Tape-and-reel delivery Compatible with automated assembly lines, improving customer production efficiency
Custom Stamped Terminals & Pins – Precision Metal Stamping for Connector Applications
Product Specifications
Specification Item Detail / Range Tolerance / Standard
Material Type Brass / Phosphor Bronze / Beryllium Copper / Stainless Steel Per drawing
Material Thickness 0.1 mm -- 0.8 mm ±0.005mm
Terminal Width 0.5 mm -- 10 mm ±0.02mm
Contact Resistance ≤ 20 mΩ Measured
Mating Cycles ≥ 5,000 Resistance change ≤20%
Plating Gold / Tin / Silver / Selective Thickness controlled
Packaging Tape & Reel / Tube / Bulk As required
Max. Processing Size 300 mm × 300 mm Machine dependent
Custom Stamped Terminals & Pins – Precision Metal Stamping for Connector Applications
Product Applications
  • Board-to-Board Connectors: Motherboard connector terminals, board-to-board pins, header pins
  • Wire-to-Board Connectors: Harness terminals, crimp terminals, IDC connector pins
  • Automotive Connectors: Vehicle sensor terminals, harness connector pins, ECU connector terminals
  • Communication Connectors: RF connector pins, RJ45 terminals, USB connector terminals
Frequently Asked Questions
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
