8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production
8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production
8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production
8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production
8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production
8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production
8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production
8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production
8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production
8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production
8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production
8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production
Specifications
Place of Origin :
China
Condition :
New
Machine Type :
wire bending machine
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
Bearing, Motor
Brand Name :
TIMAC
Raw Material :
Steel Bar
Material / Metal Processed :
Aluminum
Power :
CNC
Automation :
Automatic
Weight (KG) :
3000
Key Selling Points :
Competitive Price
Warranty :
1 Year
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant
Showroom Location :
Canada, United Kingdom, United States, Italy, Germany
Color :
Customizable
Axis count :
8 axis
Max. outside diameter :
20mm
Max. wire feeding length :
Unlimited
Machine weight :
3000kg
Certification :
ce
After-sales Service Provided :
Online support
Port :
China port
Supply Ability :
1000 Set/Sets per Year
Price :
$50,000.00/sets 1-2 sets
MOQ :
1 set
Description

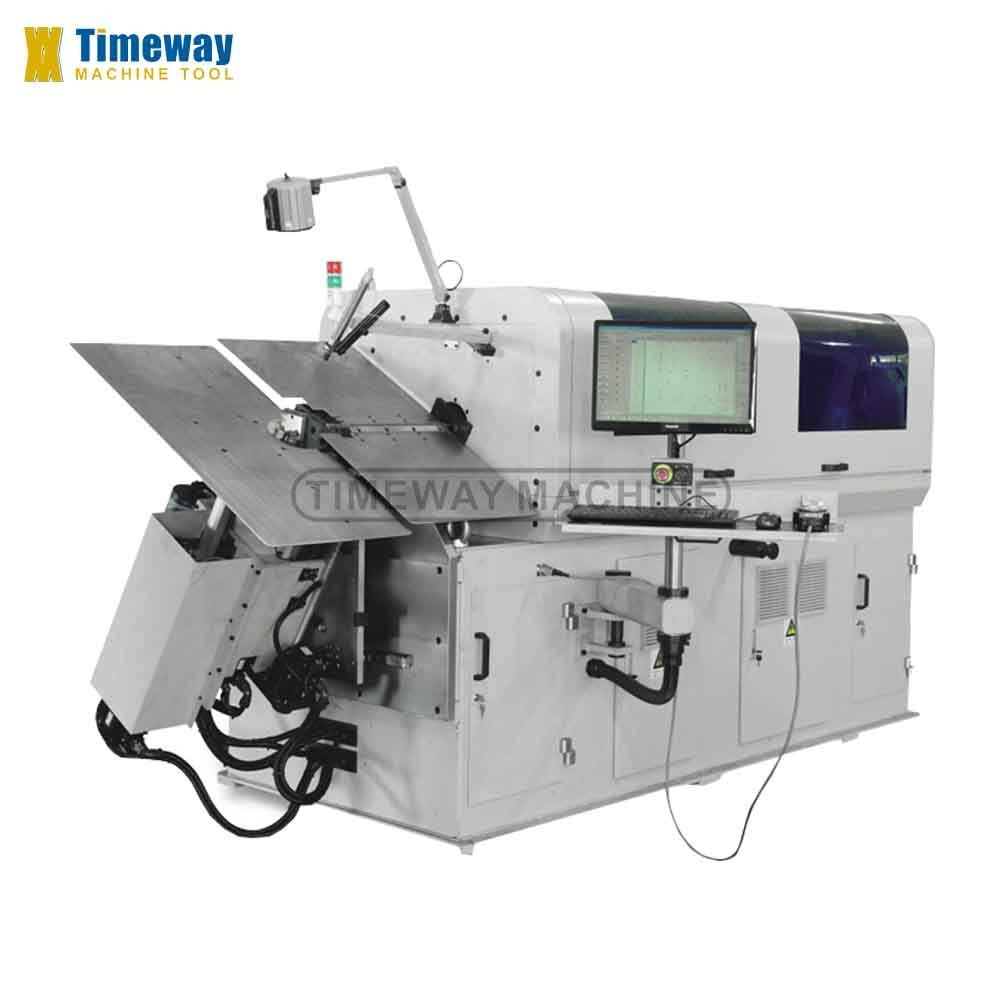

CNC Wire Spring Machine

WBK-8/6

Specifications List

Technical Parameter

Model

Unit

WBK-8/6

Wire diameter

mm

Φ2-6 soft wire

Φ2-4 hard wire

Max.wire feeding speed

m/min

54

Distance between the bending head and machine body

mm

594

Bending pin axis

KW

1.3

Support pin axis

KW

1.3

Bending head left/right

KW

1.3

Bending head U/D axis

KW

1.3

Support table U/D axis

KW

0.85

Cutting axis

KW

1.3

Wire feed axis

KW

3.0

Rotating wire axis

KW

3.0

Machine dimensions(L×W×H)

m

3.3×2.03×1.6

Machine weight (approx)

kg

3000

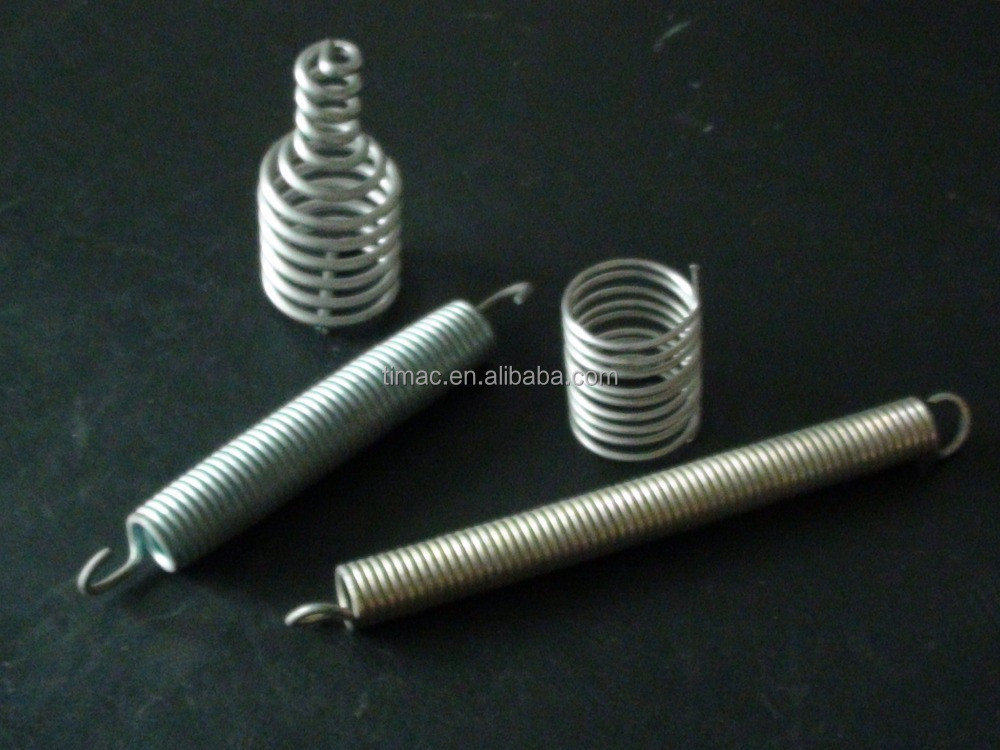

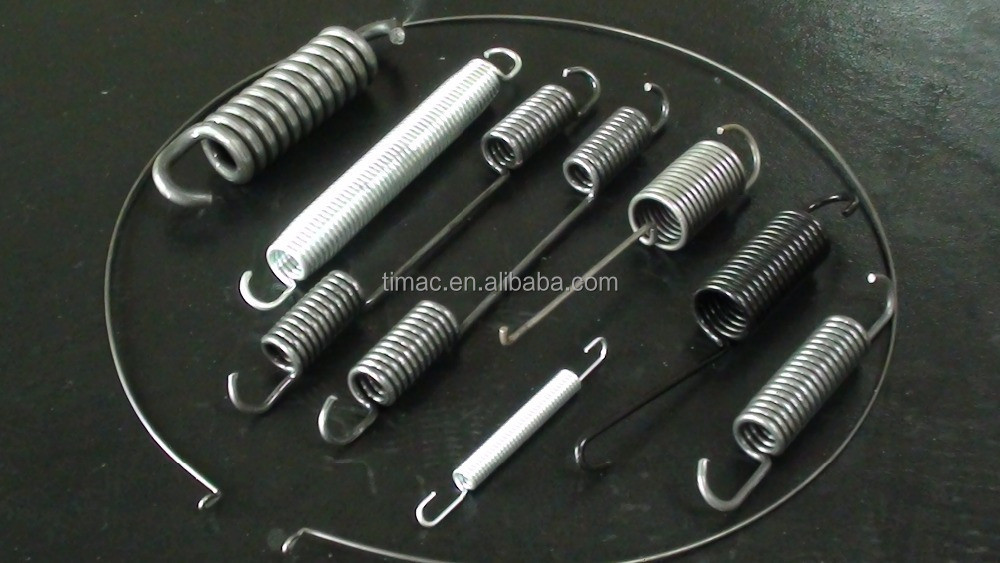

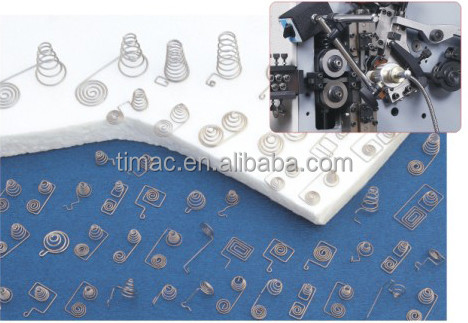

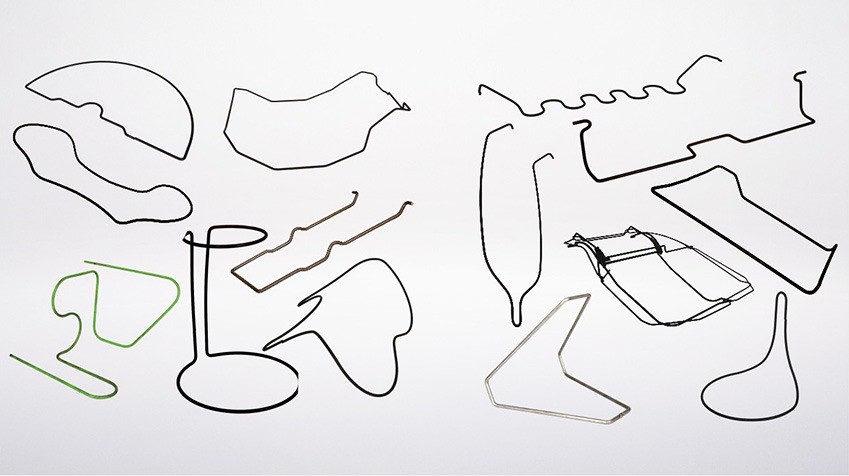

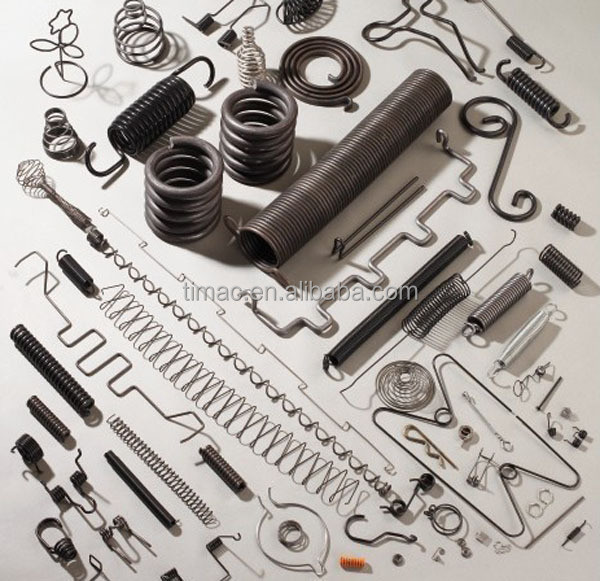

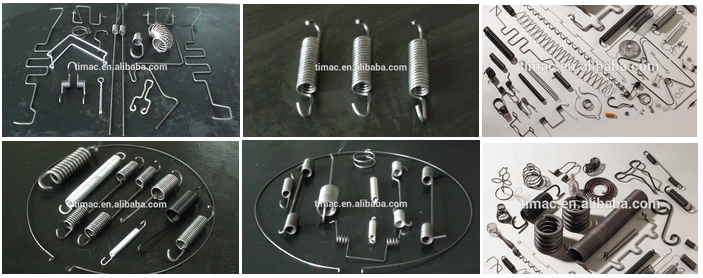

Workpiece Sample

8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production

Spring Tool

8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production

Company Information

8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production

8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production

Certifications

8-Axis CNC Wire Bending Spring Machine The Ultimate Solution for Automated Production

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price;

2 . Professional R&D team and 25 years export experience;

3 . Exported more than 60 countries;

4 . CE, ISO Certificates;

5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);

6 . 12 months quality warranty;

7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?

A: yes, we have established a highly strict quality control department to guanrantee good quality.


Q: What's the MOQ?

A: 1 set (Only some low cost machines will be more than 1 set )


Q: What about the payment terms?

A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;

2) Irrevocable LC at sight;

3) Western Union, MoneyGram, etc.


Q: How about the warranty?

A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
