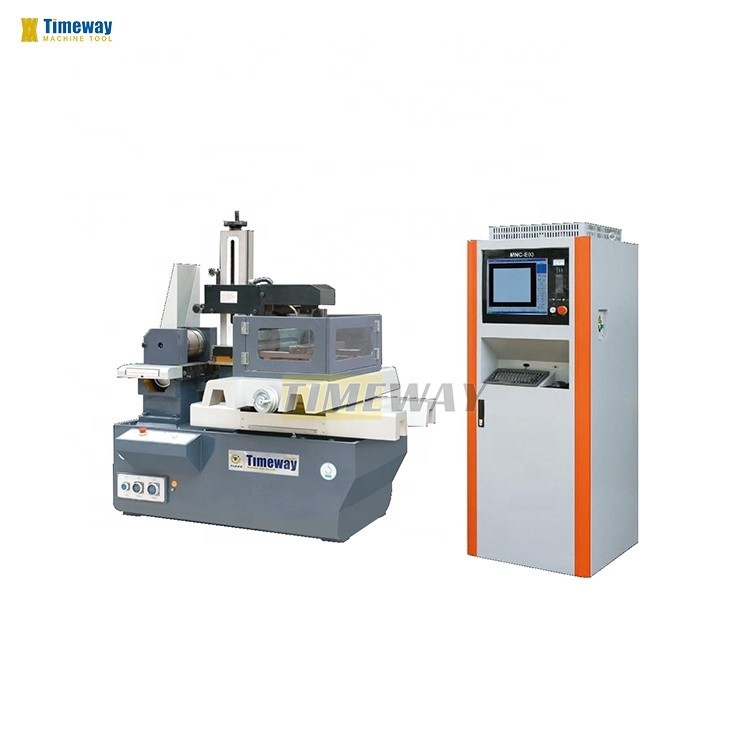

High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
Specifications
CNC or Not :
Normal
Condition :
New
Machine Type :
Wire EDM
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
Engine, Motor
Place of Origin :
China
Year :
2023
Brand Name :
TIMEWAY
Voltage :
380V/220V
Dimension(L*W*H) :
2250X2250X1950mm
Weight (KG) :
2700
Power (kW) :
2.2
Warranty :
1 Year
Key Selling Points :
Long Service Life
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Energy & Mining, Construction works
Showroom Location :
Turkey, United Kingdom, United States, France, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, South Korea, Chile, UAE, South Africa, Kazakhstan, Ukraine, Uzbekistan, Australia
Product name :
EDM wire cutting machine
Controlling Mode :
CNC Control
Application :
multi-purpose
Color :
customization
Workbench size :
750*1140mm
axis control :
4-axis linkage
Brand :
Timeway
Model :
DK-400Z, DK-630Z,
Material :
Steel
Packaging Details :
By wooden case
Price :
$25,467.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
Specification
Unit
DK-400Z
DK-630Z
Table size(WxL)
mm
540x760
750x1140
Table travel(X/Y)
mm
400x500
630x800
U/V-axis travel
mm
70x70
70x70
Loading capacity
kg
1000
2400
Max. thickness of workpiece
mm
400
550
Taper angle
mm
5°/60
5°/60
Wire feed speed
m/s
1-11.4, 2 stpes
1-11.4, 2 stpes
Working accuracy
mm
0.012
5-18-100
Max. machining speed
mm2/min
250
250
Motor type
kg
stepper motor driver
stepper motor driver
Axis controlled
kg/m
4-axis linkage
4-axis linkage
Power supply
-
380V/50HZ/3PH
380V/50HZ/3PH
Total power
mm
2.2
2.2
Tank capacity
-
55
55
Machine weight
kg
1600
2700
Machine dimensions (LxWxH)
mm
1950x1500x1800
2250x1720×2050
Why Choose Us
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
High Speed Wire Cutting EDM Machine with Cabinet Computer Workbench size 750*1140mm
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
