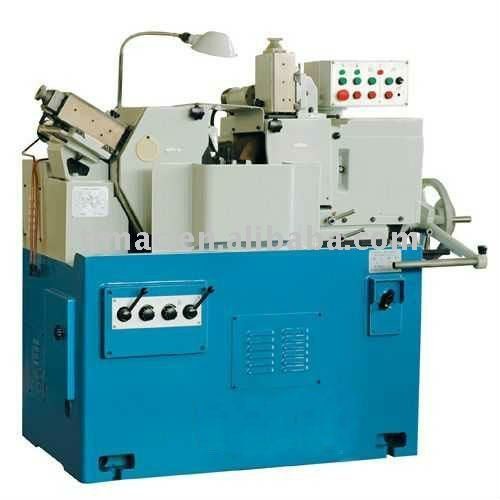

1550x1300x1400mm High Precision Centerless Grinding Machine for Production Line
1550x1300x1400mm High Precision Centerless Grinding Machine for Production Line
Specifications
Type :
Centerless Grinding Machine
CNC or Not :
Normal
Condition :
New
Place of Origin :
Henan, China
Brand Name :
TIMAC
Voltage :
380V
Dimension(L*W*H) :
1550x1300x1400mm
Warranty :
1 Year
After-sales Service Provided :
Online support
High Precision Centerless Grinder :
High Precision Centerless Grinding Machine
Max. Grinding Diameter :
40mm
Power :
7.5kw
Weight :
2000kg
Certification :
CE
Packaging Details :
WOODEN CASE
Port :
China Port
Supply Ability :
300 Set/Sets per Month
Price :
$19,999.00/sets 1-4 sets
MOQ :
1 set
Description

High Precision Centerless Grinding Machine

Feartures:

1. The layout of the machine is that its grinding wheelhead is fixed and regulating wheelhead is movable.

2. The grinding wheel spindle is supported on multiple long-segment hydrodynamic oil-film bearings and designed in cantilever structure.

3. The regulating wheel spindle is supported on conical sliding bearings with 1:30 taper and also designed in cantilever structure.

4. The regulating wheel feed slide is supported on dovetail needle roller guideway and a differential leadscrew is used for performing feed motion.

5. AC frequency converter is used for changing the regulating wheel speed infinitely.

6. The machine is equipped with the plunge-cut machanism.

Applications:

The High Precision Centerless Grinding Machine is mainly used for through-feed grinding of cylindrical surface of ring- and shaft-type parts, as well as for plunge-cut grinding of various stepped, conical and cylindrical surfaces in semi-automatic operation.

Specifications

GT1040A

Grinding diameter

Through feed grinding

2~40mm

Infeed grinding

7~40mm

Max. grinding length with standard work rest

Through feed grinding

140mm

Infeed grinding

120mm

Grinding wheel specifications

PSA350x125x127mm

Regulating wheel specifications

PSA250x125x127mm

Grinding wheel speed

1870r/min

Regulating wheel speed

10~180r/min(stepless)

Swiveling angle of regulating wheel

In vertical plane

-2°~+4°

In horizontal plane

0°~+3°

Feed amount per division of the feed handwheel

0.002mm

Feed amount per division of the dress

0.01mm

Height of the centerlines of two wheels to the bottom of work-rest

190mm

Height of the centerlines of two wheels to the floor

985mm

Total power

7.5kw

Power of grinding wheel motor

1.5kw

Power of regulating wheel motor

3N~50HZ 380V

Overall dimensions (LxWxH)

1550x1300x1400mm

Machine weight (approx)

2000kg

Grinding accuracy

Roundness

0.002mm

Cylindricity

0.003mm

Surface roughness

0.32um
