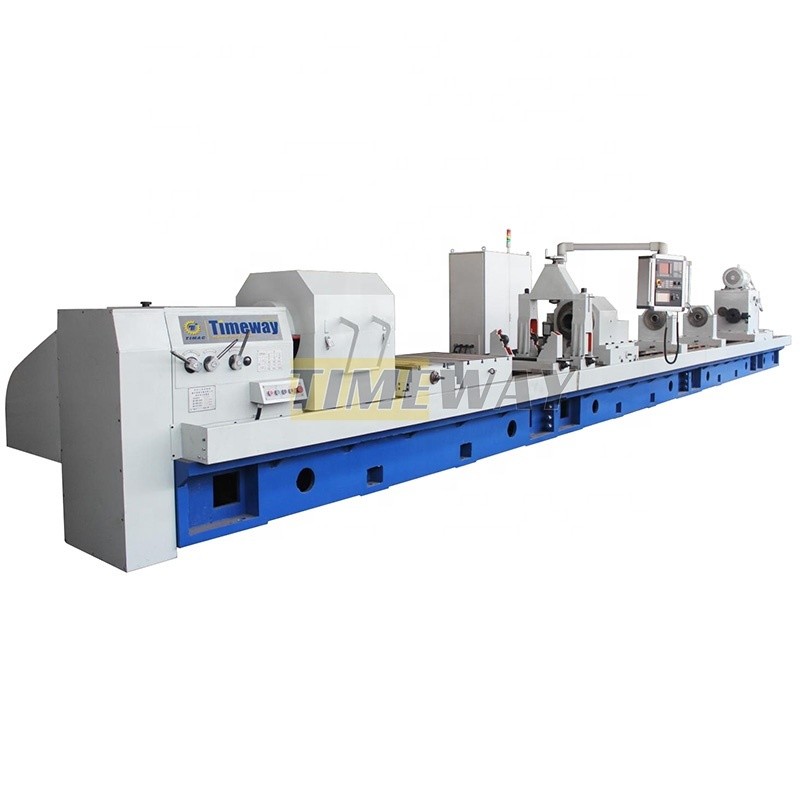

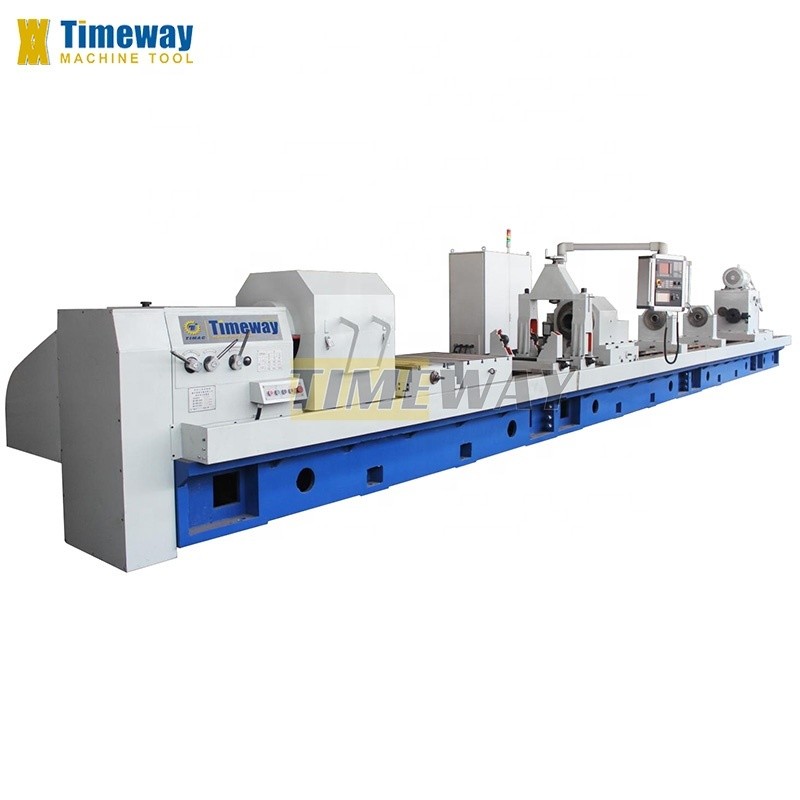

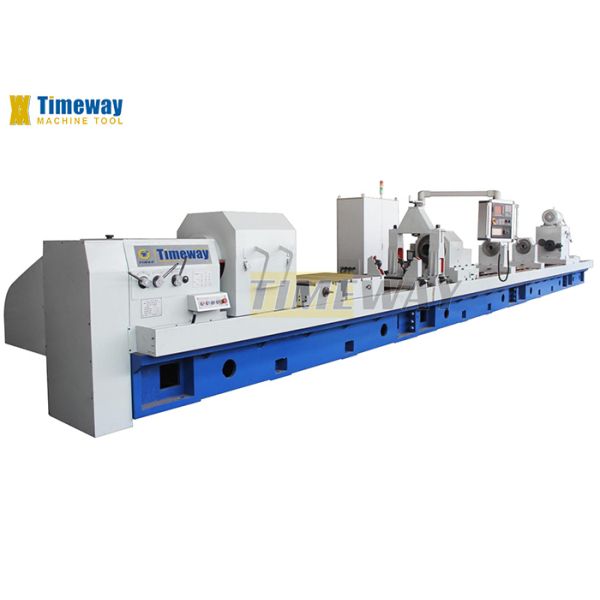

450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
Specifications
Condition :
New
type :
Column Drilling Machine
Max. Drilling Dia. (mm) :
100 mm
Range of Spindle Speed(r.p.m) :
60 - 1200 r.p.m
CNC or Not :
CNC
Place of Origin :
China
Brand Name :
TIMAC TIMEWAY
Model Number :
DBK-350A, DBK-350
Voltage :
220/380V
Power (kW) :
30 kw
Weight (KG) :
5000 KG
Warranty :
1 Year
Key Selling Points :
High-accuracy
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, United States, Germany, Philippines, Brazil, Indonesia
Applicable Industries :
Machinery Repair Shops, Other
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Other
Product type :
CNC Drilling and Boring Machine
Model :
DBK-350A
Keyword :
CNC
Max drilling diameter :
100 mm
Workpiece clamping dia. range :
120-450 mm
Boring depth range :
1000-15000 mm
Spindle center height :
450 mm
Main motor power :
30 kw
Feed motor power :
36 Nm
CNC system :
Siemens 808 or KND
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$160,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
CNC Deep Hole Drilling and Boring Machine
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
Specification
Unit
DBK-350
DBK-350A
Drilling diameter range
mm
/
Φ30-Φ10
Boring diameter range
mm
Φ60-Φ350
Φ60-Φ350
Boring depth range
m
1000-15000
1000-15000
Workpiece clamping dia. range
mm
120-450
120-450
Spindle center height
mm
450
450
Headstock spindle hole dia.
mm
Φ75
Φ75
Spindle front taper hole dia.
mm
Φ85 1:20
Φ85 1:20
Drill box motor power
kw
/
22
Hydraulic system rated pressure
Mpa
6.3
6.3
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
Positive Comments From Customers
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
Company Imformation
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
Our Factory：
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
Video Description：
Customer Visitied：
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
Exhibition：
450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
