Specifications
Table Size (mm) :
1100x960, 1100x960mm
Table Travel (X) (mm) :
900 mm
Table Travel (Y) (mm) :
900 mm
Table Travel (Z) (mm) :
1400 mm
Number of Axes :
2
Max. Table Load(kg) :
2500
Travel (W-axis) (mm) :
600 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Positioning Accuracy (X axis) mm :
0.005
Positioning Accuracy (Y axis) mm :
0.005
Positioning Accuracy (Z axis) mm :
0.005
No. of Spindles :
Single
Range of Spindle Speed(r.p.m) :
1000 r.p.m
Spindle Motor Power(kW) :
7.5
Type :
Horizontal
Condition :
New
CNC or Not :
Normal
Place of Origin :
Henan, China
Brand Name :
TIMAC/TIMEWAY
Voltage :
220V 380V 400V
Dimension(L*W*H) :
4910x2454x2750mm
Weight (T) :
13 T
Warranty :
1 Year
Key Selling Points :
High-accuracy
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Showroom Location :
Egypt, United States, Brazil, Indonesia, India, Mexico, Russia, Argentina, Chile, Sri Lanka
machine tool :
boring machine
Brand :
TIMAC
Table Travel (X) :
900mm
Table Travel (Y) :
900mm
Table Travel (Z) :
1400mm
After-sales Service Provided :
Online Support
Machine type :
Horizontal Boring Machine Equipment
COLOR :
Standard
Certification :
ISO CE
Packaging Details :
wooden case.
Port :
China port.
Supply Ability :
200 Set/Sets per Month
Price :
$60,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

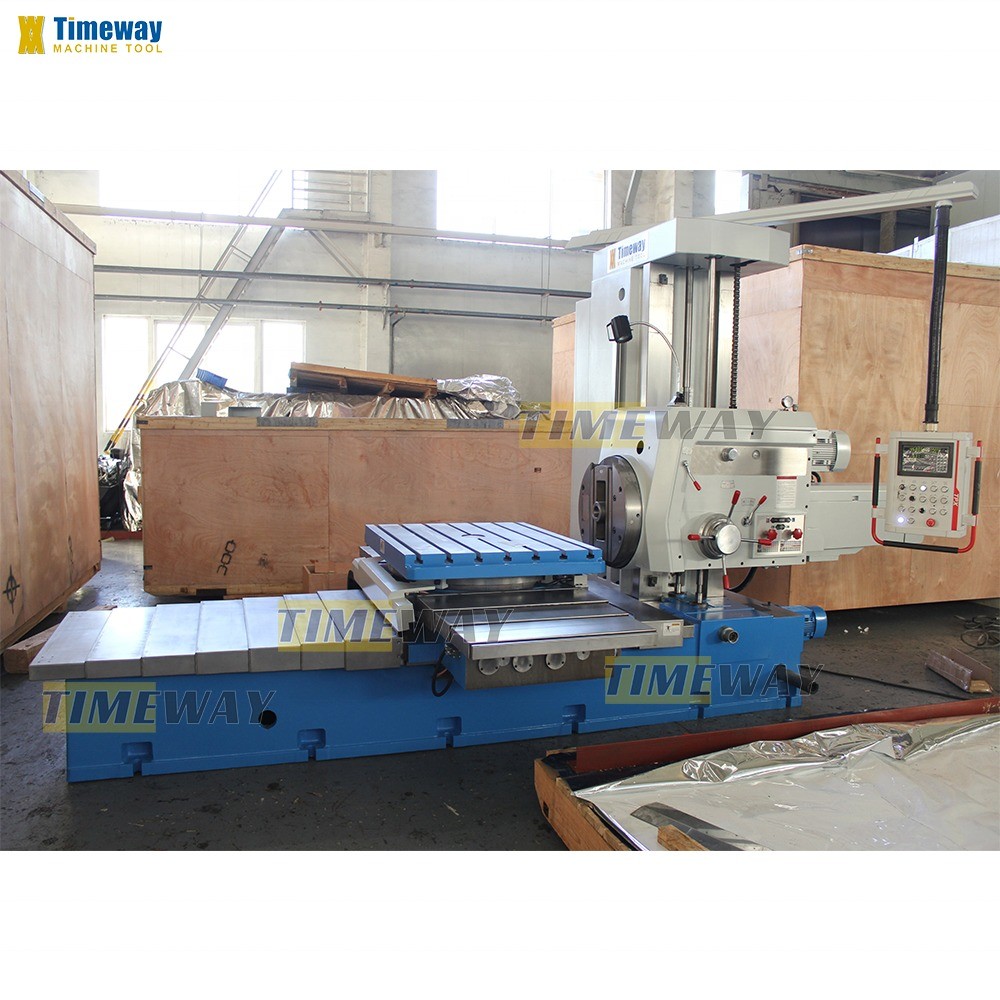

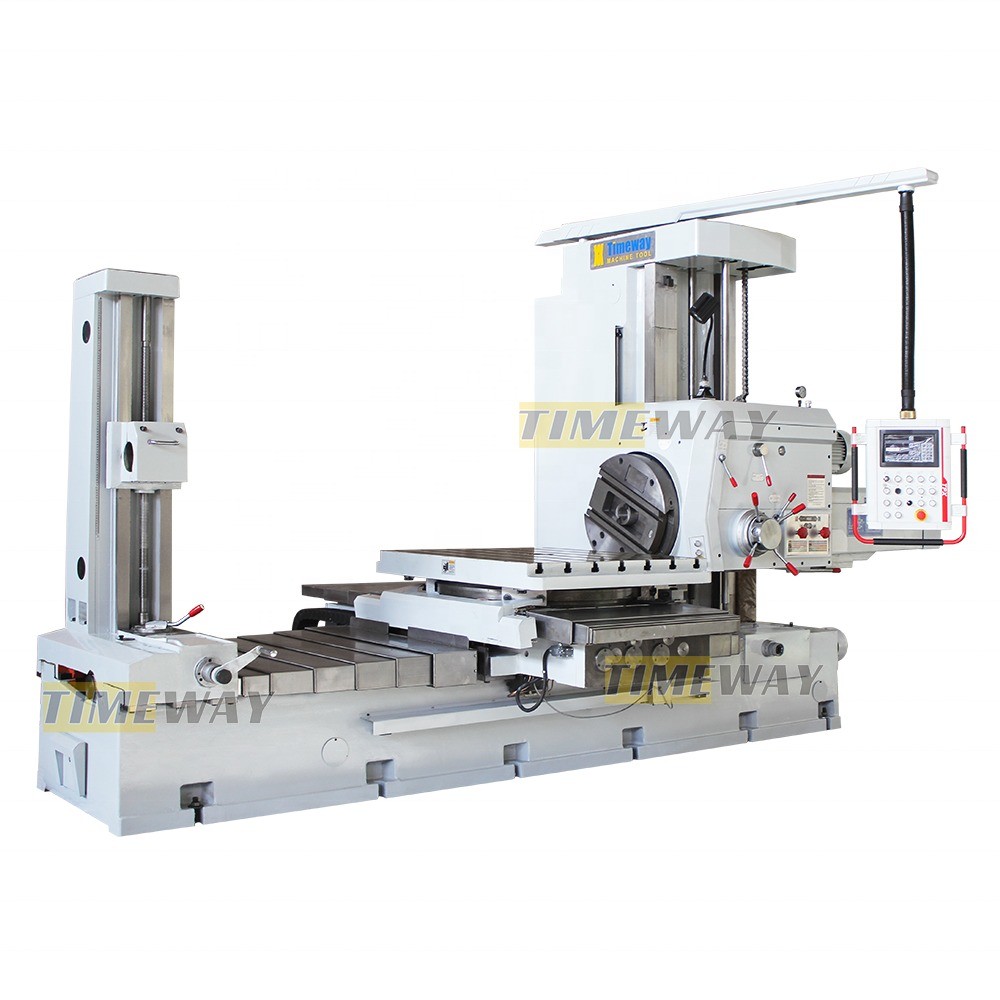

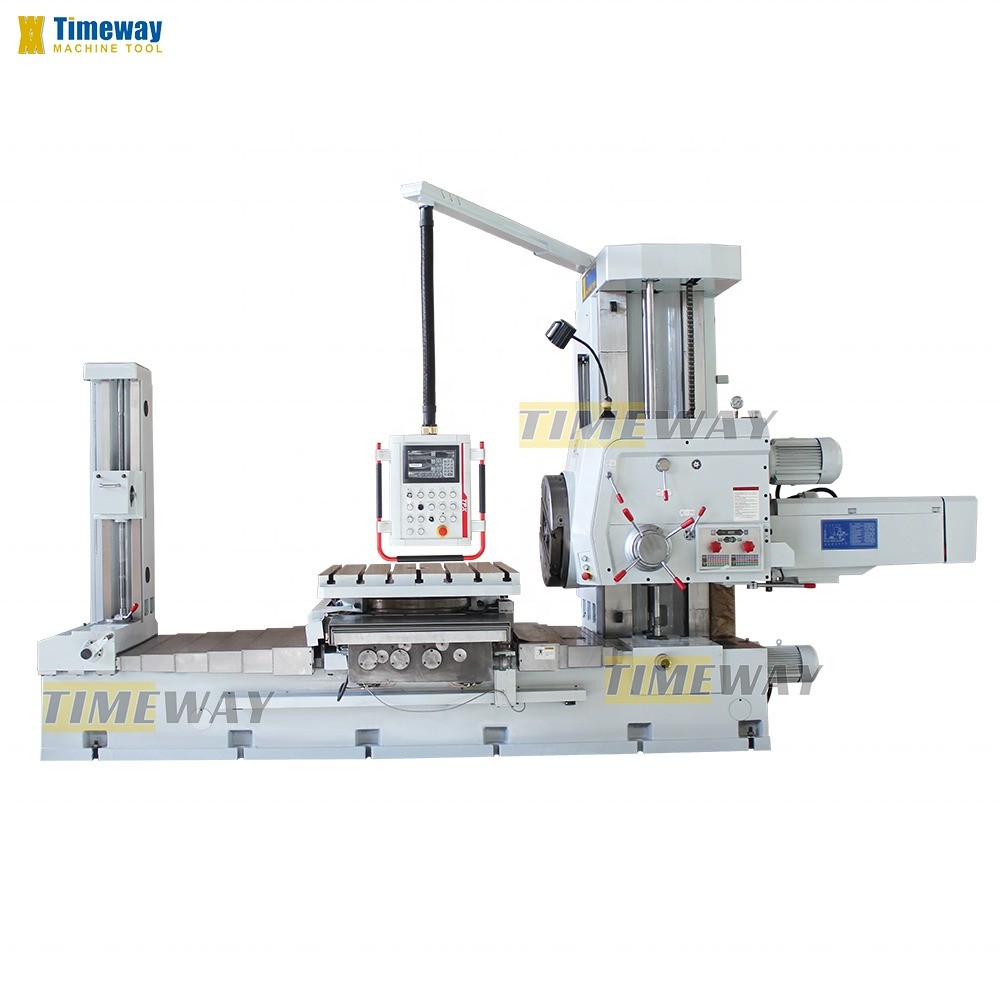

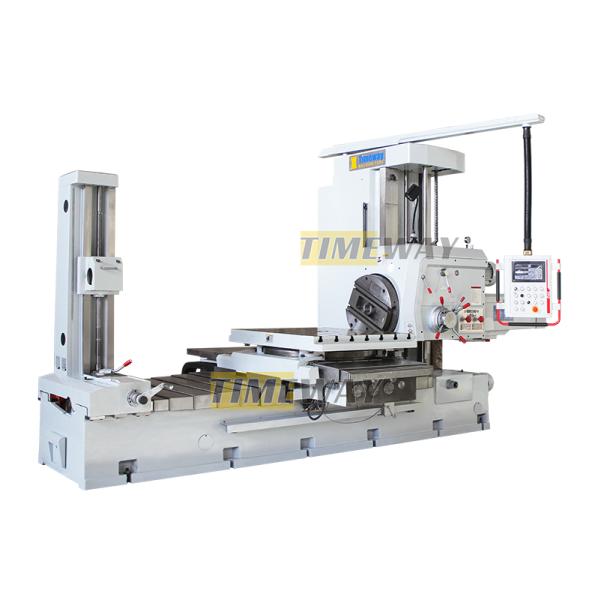

Horizontal Boring Machine
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes
Specification
Unit
TPX-110B
Table working surface (L×W)
mm
1100x900
Max. Loading weight on table
mm
2500
T-slot No./size
mm
7-22
Spindle diameter
mm
110
Spindle Taper
mm
MT6
Range of spindle speed
r.p.m
8-1000 (22 steps)
Power of main motor
kw
7.5
Range of facing head speed
r.p.m

4-200 (18 steps)
X/Y/Z-axis travel
mm
900/900/1400mm
W-axis travel (Spindle travel)
mm
600
U-axis travel (Facing slide travel)
mm
180
B-axis worktable rotary
rpm
360° (4×90° )
Machine weight
kg
13000
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes
-DRO for X &Y axes.
-DRO for Z axis,
-DRO for B axis,
-DRO for W axis,
-Rear column,
-ISO7:24 No.50
-spindle taper.
Machine Details
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes

Bed

Our high quality casting feature polished and hardened
guideways. The castings are internally reinforced to
maximize rigidity and stability.
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes

Control Panel

Available in hanging or swing-arm arrangements, the
control panel is easy to use and reduces operator
fatigue.
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes

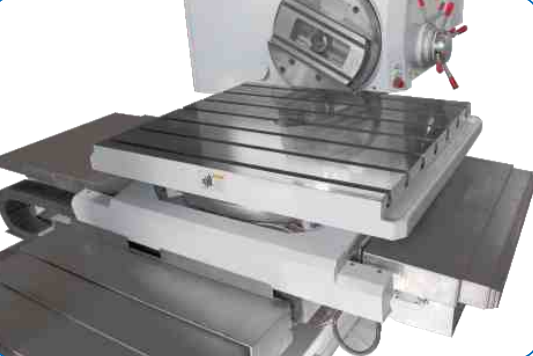

Table

Table rotates 360°, 1100x960mm large table provides milling of workpiece weights of up to 5 tons.
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes

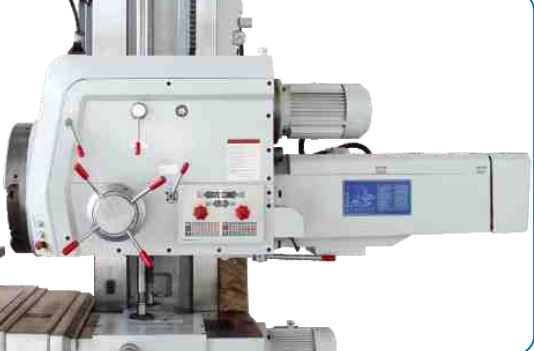

Headstock

Primary speed is controlled via switches on the headstock itself, a variety of rotational speeds are
possible.
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes

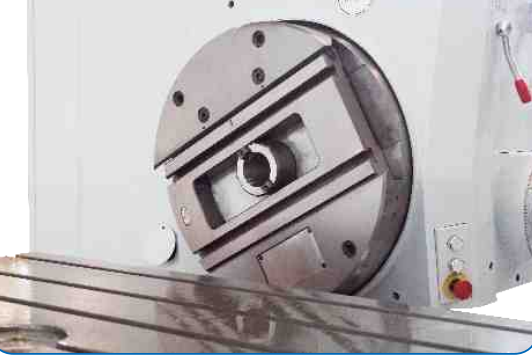

Spindle & Facing Plate

Facing plate and drill spindle with different task
specific speed ranges according to the various
functions.
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes
Positive Comments From Customers
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes
Company Introduction
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes

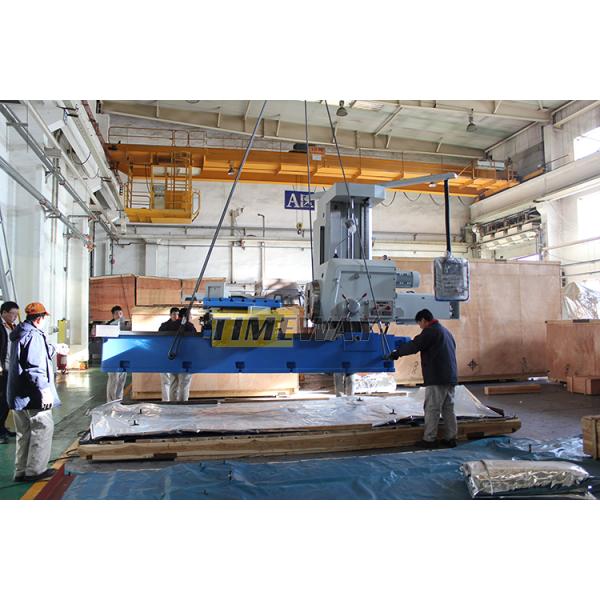

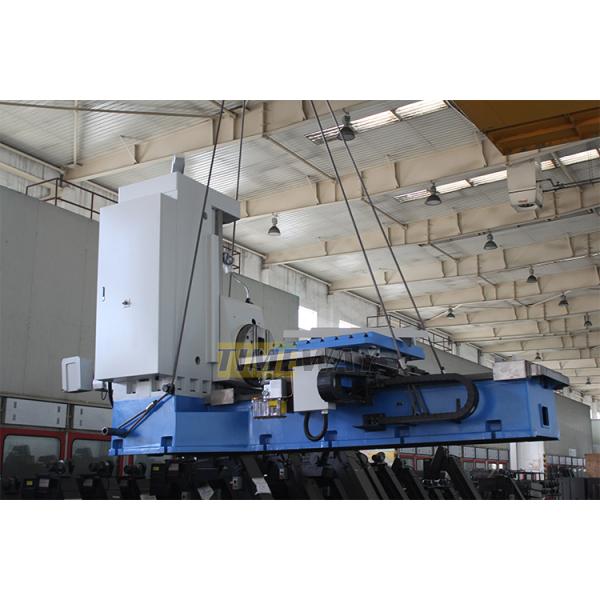

Factory Display：
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes
Text Introduction：
Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
