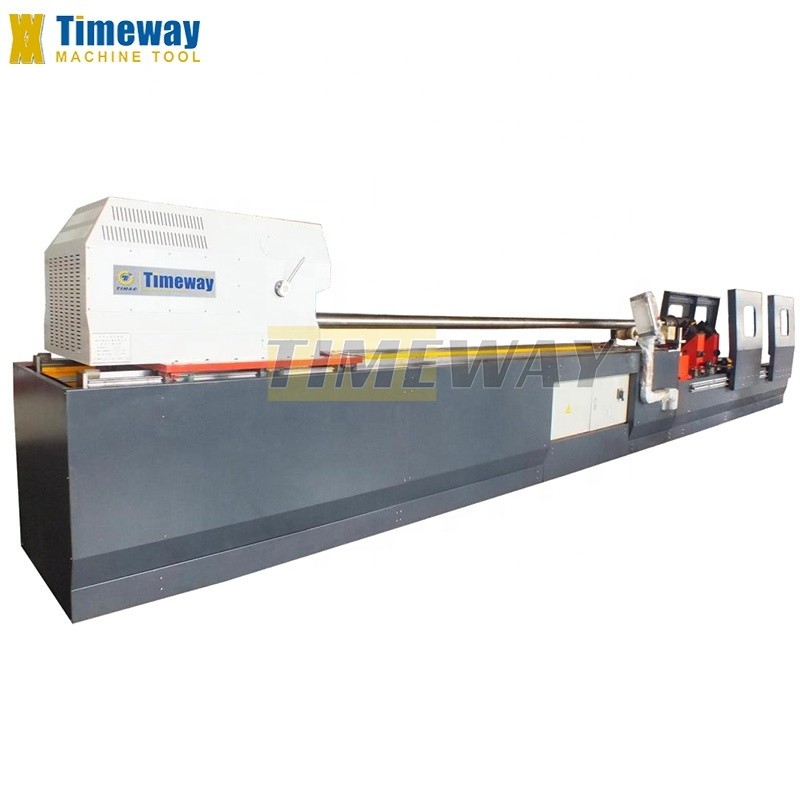

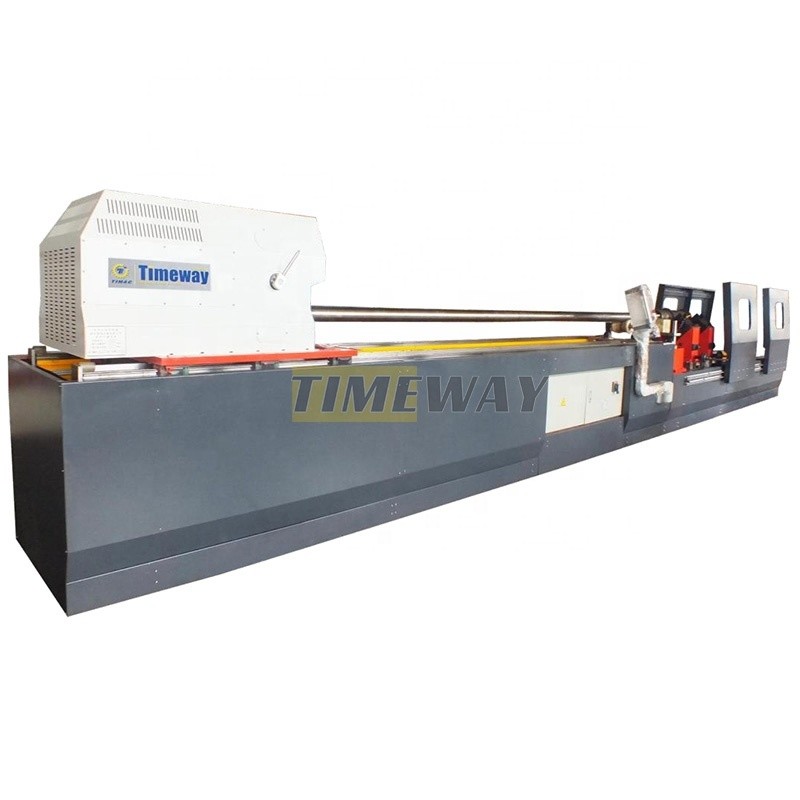

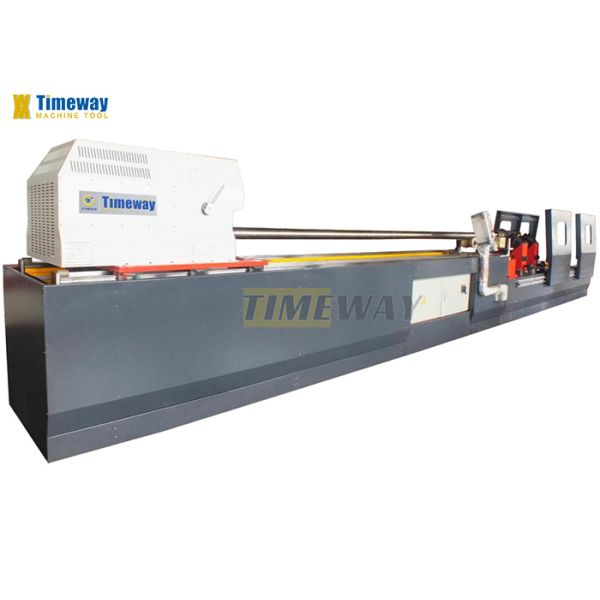

220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
Specifications
Condition :
New
type :
Bench Drilling Machine
Max. Drilling Dia. (mm) :
350 mm
Range of Spindle Speed(r.p.m) :
20 - 2000 r.p.m
CNC or Not :
CNC, CNC
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
DHK-350, DHK-500, DHK-800
Voltage :
220/380V
Power (kW) :
11 kw
Weight (KG) :
4000 KG
Warranty :
1 Year
Key Selling Points :
High-accuracy
Showroom Location :
Egypt, Canada, Turkey, United States, Philippines, Brazil, Indonesia, India, Russia, Thailand, Kenya, Colombia, South Africa
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Other
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Other
Machine type :
CNC Deep Hole Honing Machine
Honing diameter range :
80-350 mm
Max. honing depth :
1000-15000 mm
Spindle center height :
350 mm
Cooling pump flow :
100 L/min
Workpiece clamping dia. range :
100-420 mm
Honing head expansion pressure :
0.3-4 Mpa(Variable)
Spindle motor power of honing bar box :
11kw (AC servo)
Cooling pump motor power :
2.2 kw
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$78,888.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
Specification
Unit
DHK-350
DHK-500
DHK-800
Honing diameter range
mm
Φ80-Φ350
Φ100-Φ500
Φ350-Φ800
Max. honing depth
mm
1000-15000
1000-15000
1000-15000
Spindle center height
mm
350
500
650
Spindle speed range of honing bar box
r/min
20-200(Stepless)
10-250(Stepless)
20-250(Stepless)
Workpiece clamping dia. range
mm
Φ100-Φ420
Φ100-Φ650
Φ400-Φ1000
Carriage reciprocating speed range
m/min
1-20(Stepless)
1-20(Stepless)
1-20(Stepless)
Cooling pump flow
L/min
100
150
200, AB 50
Oil tank volume of cooling system
L
300
300
500
Honing head expansion pressure
MPa
0.3-4(Variable)
0.3-4(Variable)
0.3-4(Variable)
Spindle motor power of honing bar box
kw
11(AC servo)
11(AC servo)
15(AC servo)
Reciprocating motor power
kw
5.5(AC servo)
4.5(AC servo)
5.5(AC servo)
Clamping and expansion motor power of honing head
kw
0.75(AC servo)
0.75(AC servo)
0.75(AC servo)
Cooling pump motor power
kw
2.2
2.2
2.2
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
Why Choose Us
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
