Product Overview

The Wall Panel Roll Forming Machine is a highly efficient industrial solution engineered for manufacturing wall panels used across diverse construction applications. The 12-Station Color Steel Tile Roll Forming Machine is a continuous forming solution designed for producing color steel roofing tile profiles. The machine adopts a 12-station roller arrangement, where the material is processed through multiple forming steps to achieve the required profile shape.

12-Station Roller Forming System

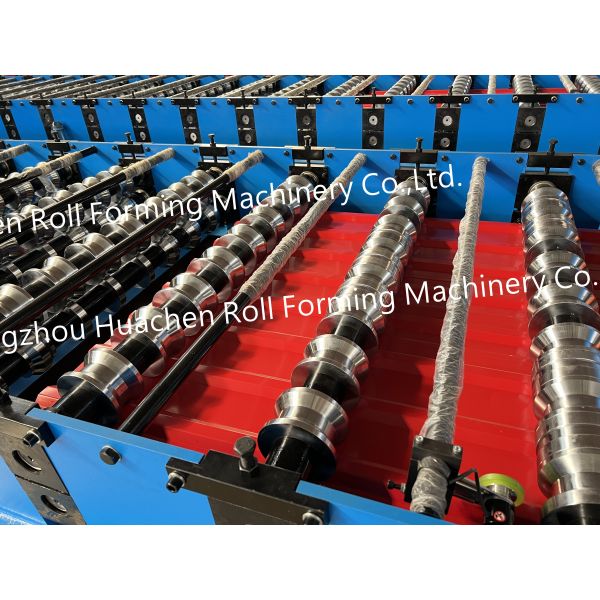

The machine is designed with 12 roller stations in the forming section. Each station works as part of the continuous shaping process, guiding the steel material through a progressive forming route.

The number of roller stations is one of the main configuration factors when selecting a roll forming machine for a specific roofing profile.

Roller and Shaft Configuration

The rollers and shafts use 45# steel as the specified material and are processed with quenching and plating treatment.

The forming system is configured with a Φ70 mm shaft diameter, providing a clear structural specification for the machine components.

Transmission and Cutting Components

The equipment uses a chain drive system for transmission.

The cutting section is equipped with a CR12 cutter. These components represent important parts of the machine configuration and should be considered together with the required production profile.

Production Speed and Electrical Specification

The machine operates at a specified speed of 15–20 m/min.

The total power requirement is 4+4 kW, with an electrical supply specification of 380 V / 50 Hz / 3 Phases. Users should confirm the available electrical conditions at the installation site before operation.

Application

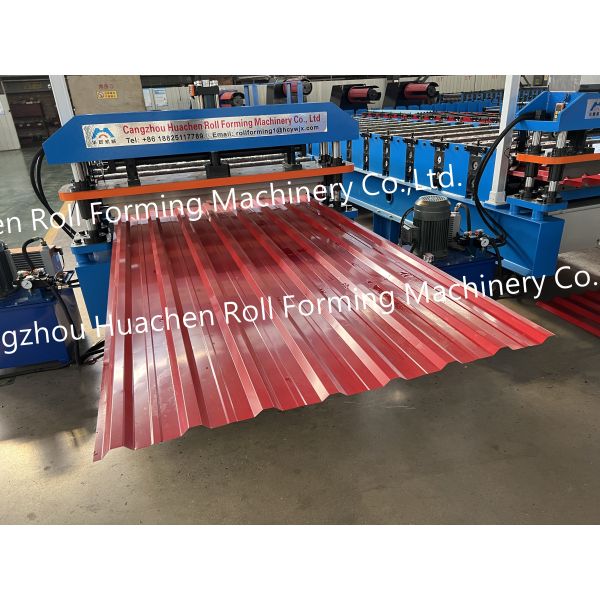

The 12-Station Color Steel Tile Roll Forming Machine is suitable for continuous forming applications related to color steel roofing tile profiles.

Common application areas include:

• Color steel roofing tile production
• Metal roofing profile manufacturing
• Steel sheet profile forming
• Roofing material processing
• Building roofing profile production

The final equipment configuration should be selected according to the required profile design and production requirements.

Technical Configuration Overview

The main configuration of this machine includes:

• 12 roller stations
• 45# steel rollers and shafts
• Quenching and plating treatment
• Φ70 mm shaft diameter
• CR12 cutter material
• Chain drive transmission
• 15–20 m/min production speed
• 4+4 kW total power
• 380 V / 50 Hz / 3-Phase power supply

These specifications provide a technical reference for buyers evaluating a 12-Station Color Steel Tile Roll Forming Machine for color steel roofing profile production.
