Main Technical Parameters

Product Overview

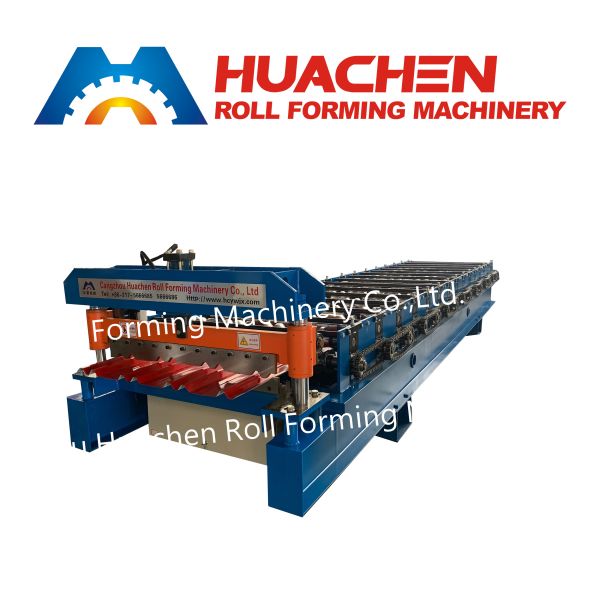

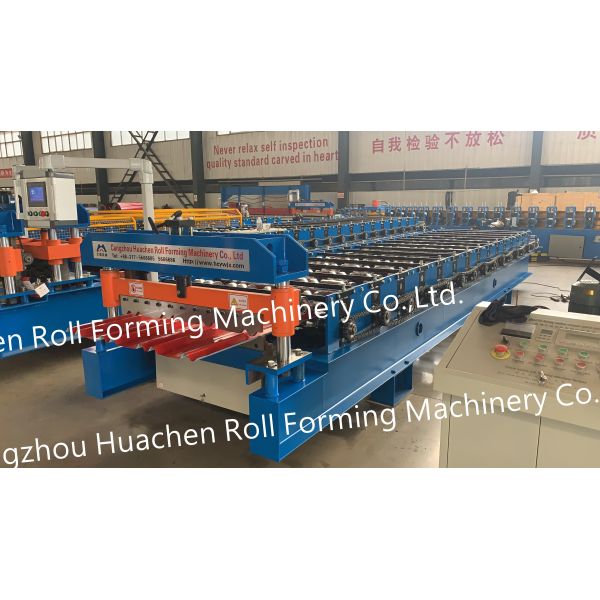

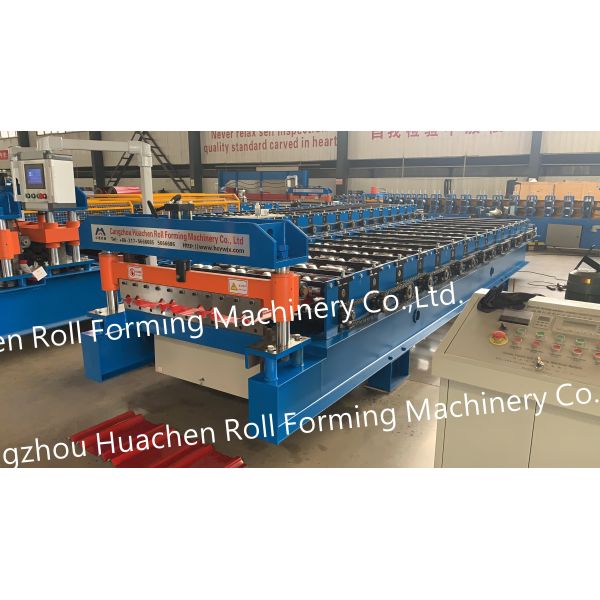

The 12-Station Color Steel Tile Roll Forming Machine is configured for the continuous forming of color steel roofing tile profiles. Its forming section consists of 12 roller stations, with the sheet progressively shaped as it moves through the forming process.

Forming Section

The machine is built around a 12-station roller forming section. The steel sheet moves through the roller stations in sequence, with each stage contributing to the progressive formation of the roofing profile.

When selecting a roll forming machine, the station quantity should be considered together with the required finished profile and material specifications.

Mechanical Components

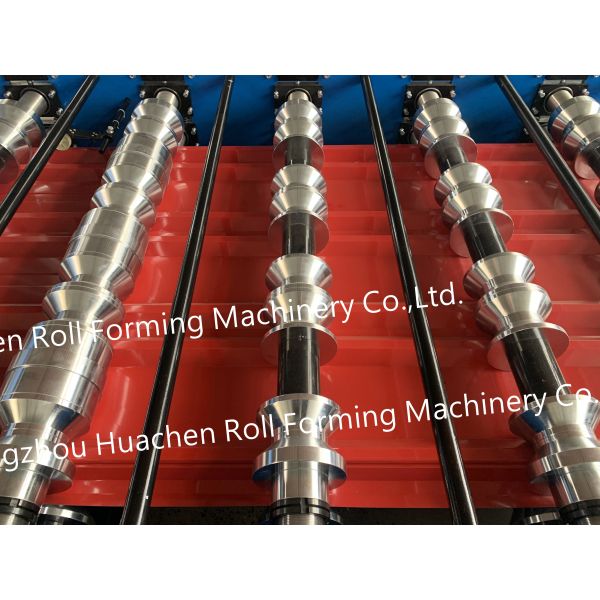

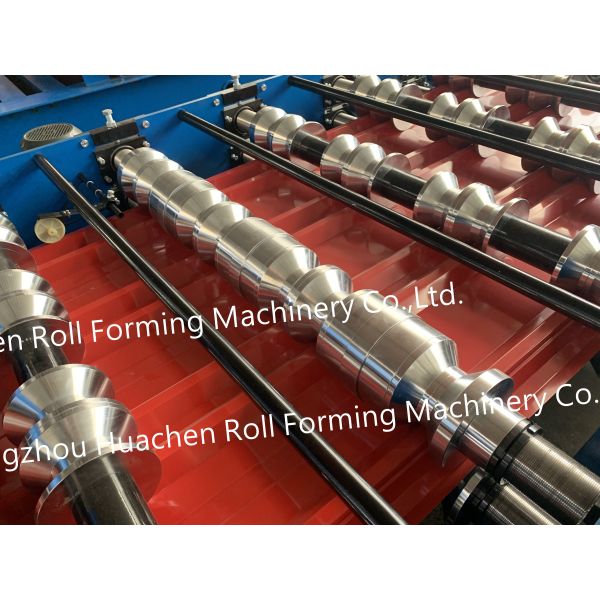

Both the rollers and shafts are specified as 45# steel and include quenching and plating treatment.

The shaft diameter is Φ70 mm. These are specific mechanical parameters that buyers can use when reviewing the construction and configuration of the forming system.

Drive and Cutting System

The machine uses chain drive for power transmission.

The cutting section is equipped with a CR12 cutter. The drive type and cutter material form part of the machine's overall configuration and can be reviewed alongside the forming station quantity and shaft specifications.

Forming Speed

The specified forming speed is 15–20 m/min.

This figure provides a measurable reference for production planning and equipment comparison. Actual operating conditions may vary according to the roofing profile, raw material, and production setup.

Power Configuration

The machine has a total power specification of 4+4 kW.

Its electrical requirement is 380 V / 50 Hz / 3-Phase. The available power supply at the installation site should be checked before commissioning to ensure compatibility with the machine specification.

Application Scope

The 12-Station Color Steel Tile Roll Forming Machine is intended for continuous forming of color steel roofing tile profiles.

Typical application areas include:

• Color steel tile production
• Metal roofing profile forming
• Steel roofing material manufacturing
• Roofing sheet processing
• Building roofing profile production

The machine configuration should be matched to the required finished profile before ordering.

Technical Reference for Buyers

For buyers evaluating a Color Steel Tile Roll Forming Machine, the main parameters of this configuration include 12 roller stations, 45# steel rollers and shafts, quenching and plating treatment, and a Φ70 mm shaft.

The machine also incorporates a CR12 cutter and chain drive, with a specified forming speed of 15–20 m/min. For electrical planning, the stated configuration is 4+4 kW total power with 380 V / 50 Hz / 3-Phase power supply.

These specifications can be used as a technical reference when comparing the machine with the requirements of a specific color steel roofing production project.
