Main Technical Parameters

Applications

The HC Wall Panel Roll Forming Machine is certified with CE standards and designed for producing high-quality wall panels used in residential, commercial, and industrial construction.The 15-Station Color Steel Tile Roll Forming Machine is designed for continuous forming of color steel roofing tile profiles. The machine is equipped with a 15-station roller forming section, allowing the steel sheet to be shaped gradually through a series of forming operations.

Roller Forming System

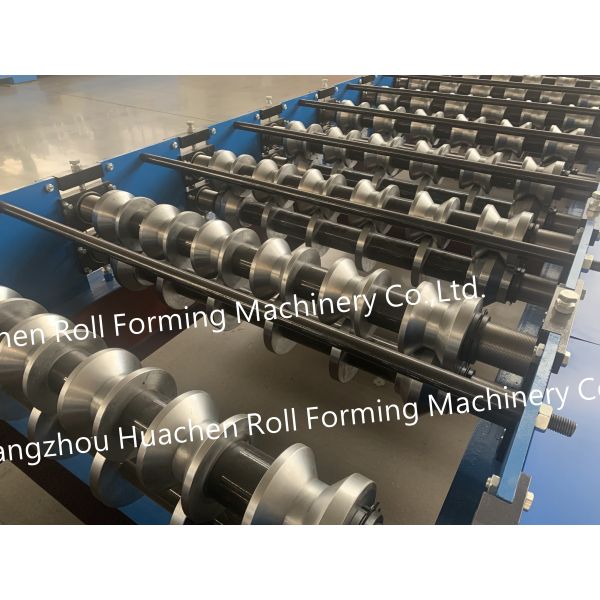

The machine uses a 15-station roller arrangement for progressive profile forming. During production, the steel sheet moves through the forming rollers in sequence, with each station contributing to the shaping process.

The number of roller stations is a key configuration factor and should be considered according to the required color steel tile profile.

Roller and Shaft Configuration

The forming rollers and shafts are manufactured from 45# steel.

The specified processing method includes quenching and plating treatment. The forming structure is equipped with a Φ70 mm shaft, providing a defined specification for the main mechanical components.

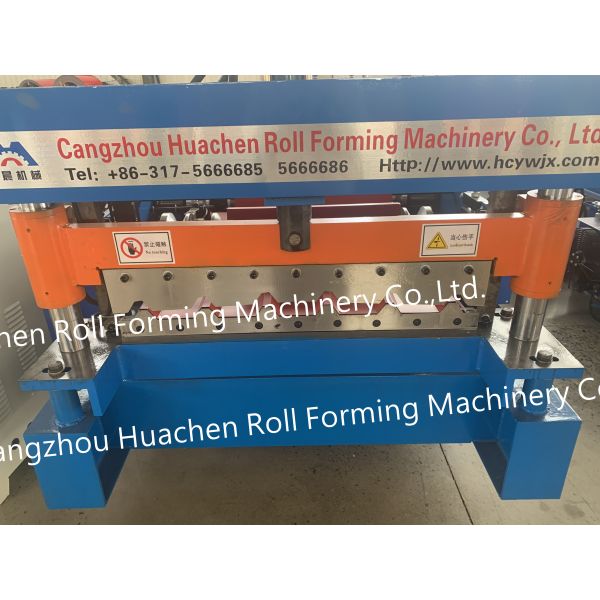

Transmission and Cutting Components

The machine adopts a chain drive system for power transmission.

The cutting section is equipped with a CR12 cutter. These specifications describe the main transmission and cutting configuration of the roll forming equipment.

Operating Parameters

The machine has a specified speed of 15–20 m/min.

This parameter provides a reference for production planning and machine comparison. Actual production results may depend on the selected profile design and operating conditions.

Electrical Specification

The equipment requires 4+4 kW total power and operates with a 380 V / 50 Hz / 3-Phase electrical supply.

Before installation, the power conditions at the working site should be checked to ensure they meet the machine requirements.

Application Range

The 15-Station Color Steel Tile Roll Forming Machine is suitable for continuous production of color steel roofing tile profiles.

Possible application areas include:

• Color steel tile production
• Roofing profile manufacturing
• Metal sheet forming
• Roofing material processing
• Building roofing profile production

The final machine configuration should be selected according to the required product profile and production needs.

Main Configuration Summary

The machine configuration includes:

• 15 roller stations
• 45# steel rollers and shafts
• Quenching and plating treatment
• Φ70 mm shaft diameter
• CR12 cutter
• Chain drive system
• 15–20 m/min forming speed
• 4+4 kW total power
• 380 V / 50 Hz / 3-Phase power supply

These specifications provide a technical reference for customers evaluating a 15-Station Color Steel Tile Roll Forming Machine for color steel roofing profile production.
