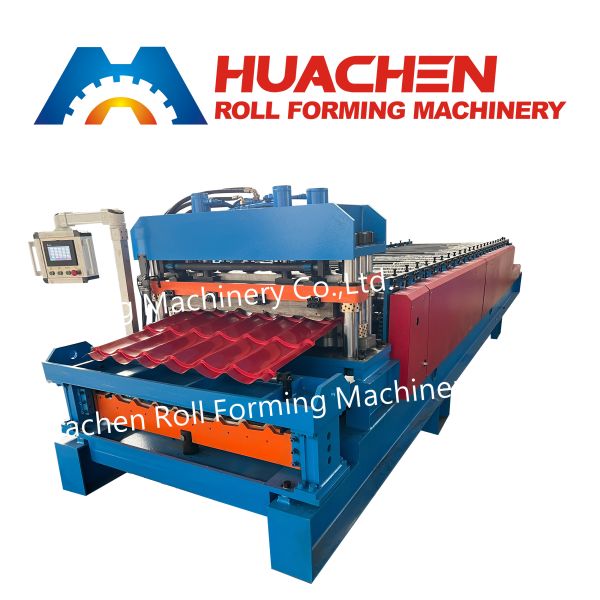

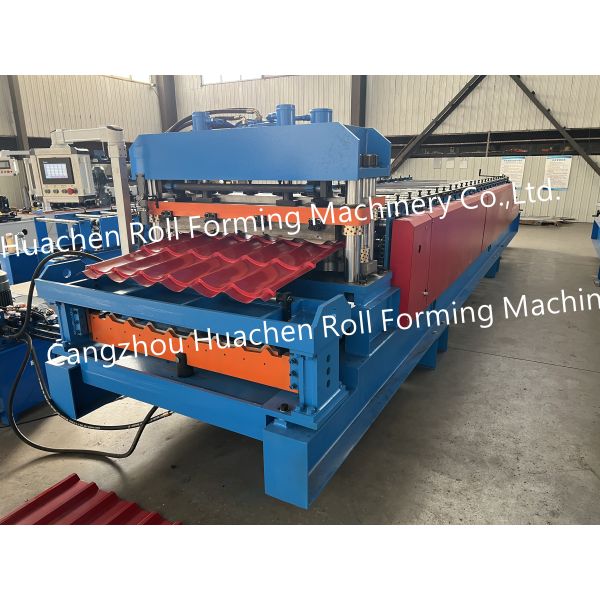

Trapezoidal Roofing Sheet Metal Ibr Roof Panel Long Span Roll Forming Machine
Trapezoidal Roofing Sheet Metal Ibr Roof Panel Long Span Roll Forming Machine
Trapezoidal Roofing Sheet Metal Ibr Roof Panel Long Span Roll Forming Machine
Trapezoidal Roofing Sheet Metal Ibr Roof Panel Long Span Roll Forming Machine
Trapezoidal Roofing Sheet Metal Ibr Roof Panel Long Span Roll Forming Machine
Trapezoidal Roofing Sheet Metal Ibr Roof Panel Long Span Roll Forming Machine
Trapezoidal Roofing Sheet Metal Ibr Roof Panel Long Span Roll Forming Machine
Trapezoidal Roofing Sheet Metal Ibr Roof Panel Long Span Roll Forming Machine
Trapezoidal Roofing Sheet Metal Ibr Roof Panel Long Span Roll Forming Machine
Trapezoidal Roofing Sheet Metal Ibr Roof Panel Long Span Roll Forming Machine
Specifications
Model Number :
Applicable to GI/PPGI sheets
Motor Power :
4+4KW
Brand Name :
HC
Panel Thickness :
0.3-0.6mm
MOQ :
1
Packaging Details :
40GP Container
Decoiler Type :
Hydraulic/manual Decoiler
Supply Ability :
60 Sets Per Month
Machine Type :
Roll Forming Machine
Certification :
CE
Machine Frame :
350 H Beam
Payment Terms :
L/C,T/T
Roller Material :
45# Steel
Place of Origin :
China
Cutting Method :
Hydraulic Cutting
Delivery Time :
30days
Production Capacity :
15-20m/min
Description

Main Technical Parameters

Roller Stations

Upper Layer: 12Stations

Down Layer: 15Stations

Roller & Shaft Material

45# Steel Quenching and Plating

Diameter of Shaft

Φ70mm

Cutter Material

CR12

Drive Type

Chain Drive

Speed

15-20m/min

Total Power

4+4KW

Voltage

380V 50Hz3Phases

Product Overview

A Double Layer Roll Forming Machine is an advanced cold-forming system designed to produce profiles with high efficiency, precision, and structural consistency. It is built with a dual-layer forming structure, typically meaning two sets of forming rolls arranged in an upper and lower configuration (or two-stage roll paths), allowing the strip or coil steel to be gradually shaped through multiple forming stations. During operation, the metal strip is uncoiled, leveled, guided into the forming section, and then passes step-by-step through pairs of rollers that progressively bend the material until the final cross-sectional shape is achieved.

Key Features

Product Name: Wall Panel Roll Forming Machine

Machine Type: Roll Forming Machine

Roller Material: High-quality 45# Steel for durability and precision

Shaft Material: 45# Steel ensuring strength and long service life

Machine Frame: Robust 350 H Beam frame for stability and support

Decoiler Type: Available with Hydraulic or manual Decoiler options

Suitable for manufacturing hanging board roll forming machine panels

Ideal for producing wall roll forming machine components

Capable of forming sliding roll forming machine elements efficiently
