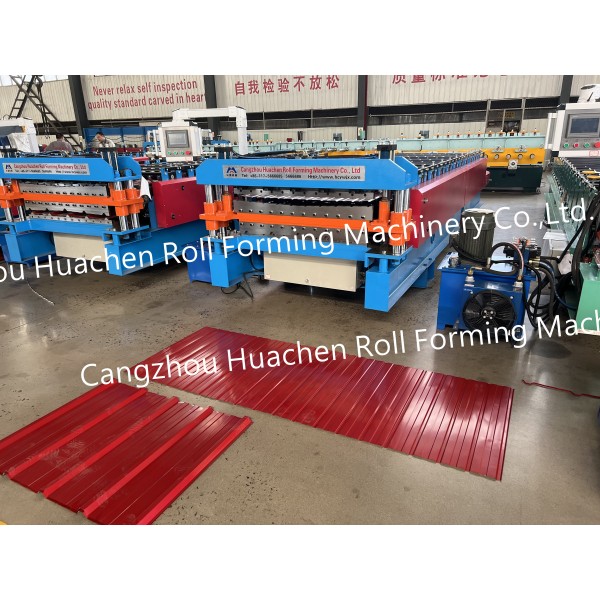

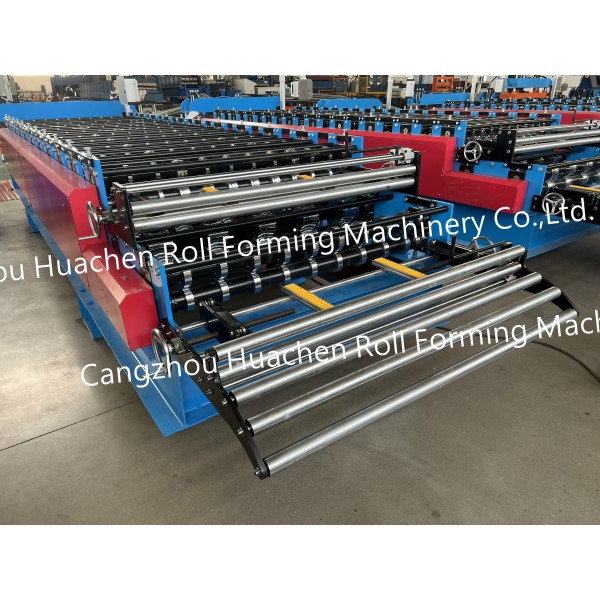

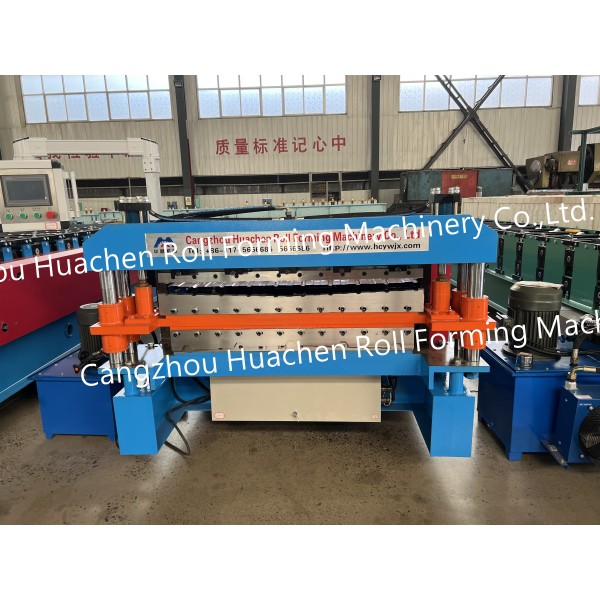

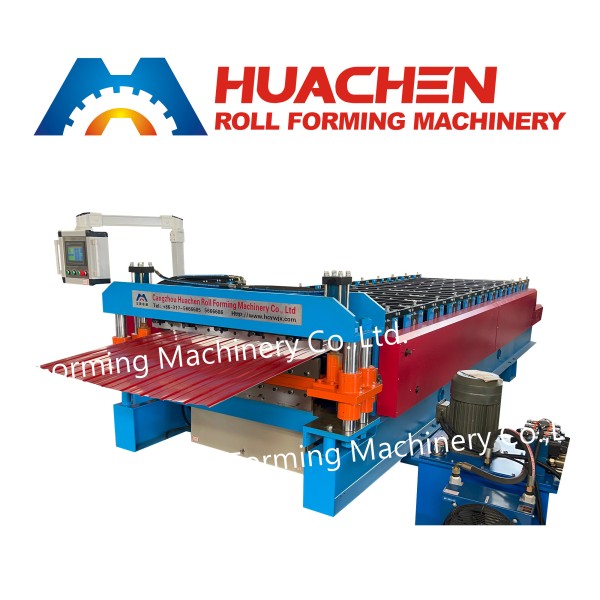

High Quality Multifunctional Panel Double Layer Roll Forming Machine Zinc Roof Sheet Making Machine Roof Panel Machine
High Quality Multifunctional Panel Double Layer Roll Forming Machine Zinc Roof Sheet Making Machine Roof Panel Machine
High Quality Multifunctional Panel Double Layer Roll Forming Machine Zinc Roof Sheet Making Machine Roof Panel Machine
High Quality Multifunctional Panel Double Layer Roll Forming Machine Zinc Roof Sheet Making Machine Roof Panel Machine
High Quality Multifunctional Panel Double Layer Roll Forming Machine Zinc Roof Sheet Making Machine Roof Panel Machine
High Quality Multifunctional Panel Double Layer Roll Forming Machine Zinc Roof Sheet Making Machine Roof Panel Machine
High Quality Multifunctional Panel Double Layer Roll Forming Machine Zinc Roof Sheet Making Machine Roof Panel Machine
High Quality Multifunctional Panel Double Layer Roll Forming Machine Zinc Roof Sheet Making Machine Roof Panel Machine
High Quality Multifunctional Panel Double Layer Roll Forming Machine Zinc Roof Sheet Making Machine Roof Panel Machine
High Quality Multifunctional Panel Double Layer Roll Forming Machine Zinc Roof Sheet Making Machine Roof Panel Machine
Specifications
Brand Name :
HC
Motor Power :
4+4KW
Machine Type :
Roll Forming Machine
Model Number :
6-24-1220
Certification :
CE
Roller Material :
45# Steel
Production Capacity :
15-20m/min
Packaging Details :
40GP Container
Place of Origin :
China
Decoiler Type :
Hydraulic/manual Decoiler
MOQ :
1
Cutting Method :
Hydraulic Cutting
Delivery Time :
30days
Payment Terms :
L/C,T/T
Supply Ability :
60 Sets Per Month
Machine Frame :
350 H Beam
Panel Thickness :
0.3-0.6mm
Description

Main Technical Parameters

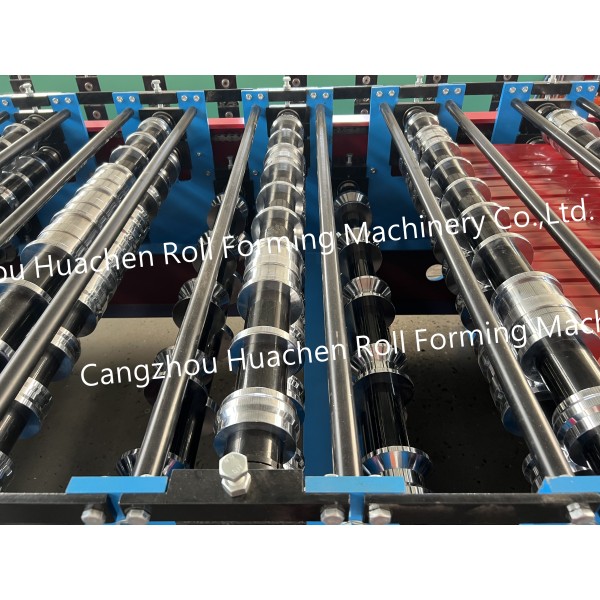

Roller Stations

Upper Layer: 11Stations

Down Layer: 12Stations

Roller & Shaft Material

45# Steel Quenching and Plating

Diameter of Shaft

Φ70mm

Cutter Material

CR12

Drive Type

Chain Drive

Speed

15-20m/min

Total Power

4+4KW

Voltage

380V 50Hz3Phases

Product Overview

  • High Efficiency & Speed: Capable of producing panels at a continuous speed of 15 to 20 meters per minute (with high-speed models reaching up to 30-40 m/min), significantly shortening project delivery times.

  • Exceptional Precision: Integrated with high-resolution rotary encoders, the PLC system maintains a strict cutting length tolerance within +-1mm, ensuring perfect interlocking and seamless overlapping during on-site installation.

  • Great Profile Versatility: The machine can be customized to produce various popular profiles, including trapezoidal (IBR) panels, classic sinusoidal corrugated panels, tile-effect sheets, and concealed-fix (standing seam) profiles.

  • Space-Saving Double-Layer Option: For factories with limited floor space, the machine can be engineered as a "Double-Layer" model, integrating two independent forming frameworks on a single base frame to produce two different profiles using only one motor and control system.
