Specifications
Brand Name :
HC
Model Number :
HC8/33
Certification :
ISO
Place of Origin :
Botou Hebei China
MOQ :
1set
Price :
15000-39000USD
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability :
20 sets/month
Delivery Time :
30days
Packaging Details :
Main machine is nude,the computer control box is packed by carton box
Description

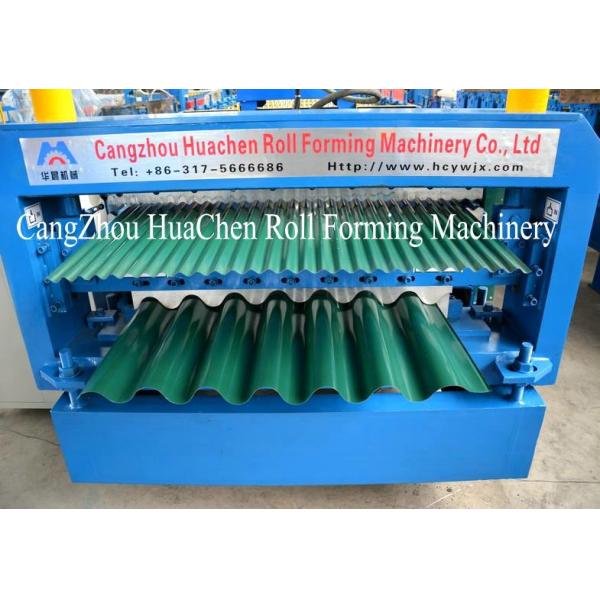

High Speed Double Layer Roll Forming Machine Automatic Hydraulic Cutting


Quick Detail:

1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 15/18 rows
4. Dimensions: 10.3*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
High Speed Metal Roof Roll Forming Machine Automatic Hydraulic CuttingHigh Speed Metal Roof Roll Forming Machine Automatic Hydraulic CuttingHigh Speed Metal Roof Roll Forming Machine Automatic Hydraulic Cutting

Description:

High Speed Double Layer Roll Forming Machine Automatic Hydraulic Cutting Main parameter

No.

Main parameter of Double layer roll forming machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :15 rows
Down level :18 rows

4

Dimensions

10200*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

15-20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting


Application

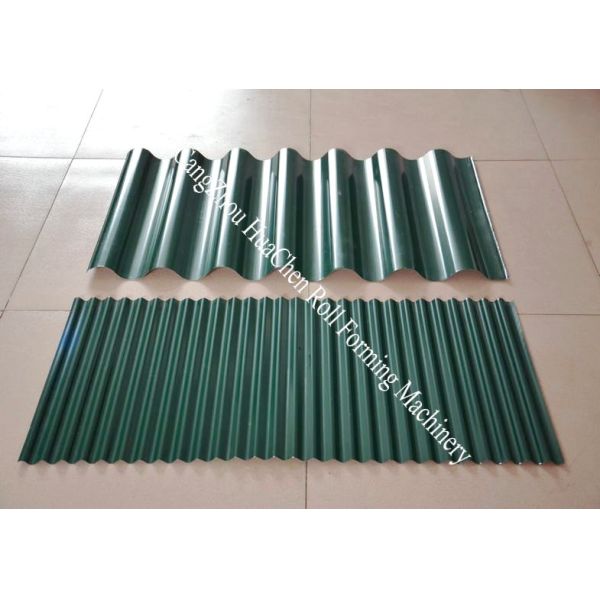

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site


Competitive Advantage


1. CE certification
2. noiseless
3. easy operate
4. high output
5. easy maintain

Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.

Worrying about machine packing and delivery ?
1.Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
2.PLC control system and motor pump are packed with water proof paper coverage
3.All machines need one 40'container to hold.

How to make payment ?
Payment terms: 30% T/T as deposit when contract signed, and 70% balance before shipment.
Delivery time: 30-45 days after receiving deposit

Where is your factory located ? How can I visit you ?
Huachen Roll forming machinery is located at Industrial Zone of Botou , Hebei Province of China. Welcome to visit us by:

1.Fly to BEIJING or TIANJIN Airport, then take high speed train from BEIJING NAN to CANGZHOU XI, about 1 hour, I will pick up you there.
2.Fly to SHANGHAI Airport, then take high speed train from SHANGHAI HONGQIAO to CANGZHOUXI, about 4.5 hour,I will pick up you there.

Want a free quotation to make budget ? Just send me inquiry now
