Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control
Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control
Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control
Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control
Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control
Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control
Specifications
Brand Name :
HC
Model Number :
HC35-206-1030
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/month
Delivery Time :
25-30days
Packaging Details :
Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Material Type :
PPGI/GI
Material Width :
1220mm
Material Thickness :
0.3-0.6mm
Roller Stations :
16Stations
Roller & Shaft Material :
45# Steel Quenching and Plating
Diameter of Shaft :
Φ70mm
Cutter Material :
CR12
Drive Type :
Chain Drive
Speed :
4m/min
Total Power :
5.5+5.5KW
Voltage :
380V 50Hz 3Phases(can be customized)
Description
Professional Automatic Metal Roof Glazed Tile Roll Forming Machine 2-4m/Min
Product Overview

Professional supplier of automatic metal roof glazed tile roll forming machines with advanced manufacturing capabilities.

Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control
Key Features
  • Produces smooth, beautiful metal roofing sheets without surface scratches
  • Complete rollforming process: uncoiler, rollforming, forming step effect, cut to length
  • Fully Automatic Control System with PLC
  • Easy operation: Set length and quantity via control panel
  • One year comprehensive warranty
  • Custom machine design available based on specifications and profile drawings
  • One roll forming machine produces one specific profile
Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control
Machine Line Composition
Technical Specifications
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1220mm
Roller Stations 16 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 4 m/min
Total Power 5.5 + 5.5 KW
Voltage 380V 50Hz 3 phases
Machine Components

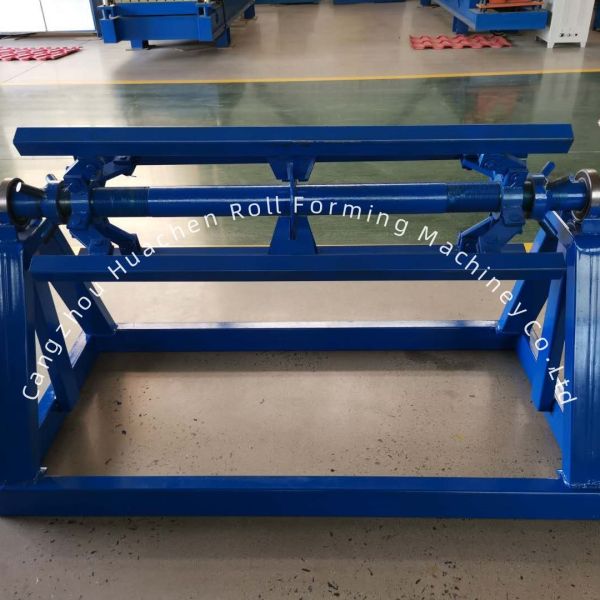

Manual Decoiler

Supports steel coil and enables rotary movement (included free with machine)

  • Coil inner diameter: 450-550mm
  • Maximum coil width: 1250mm
  • Maximum load capacity: 5T
Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control

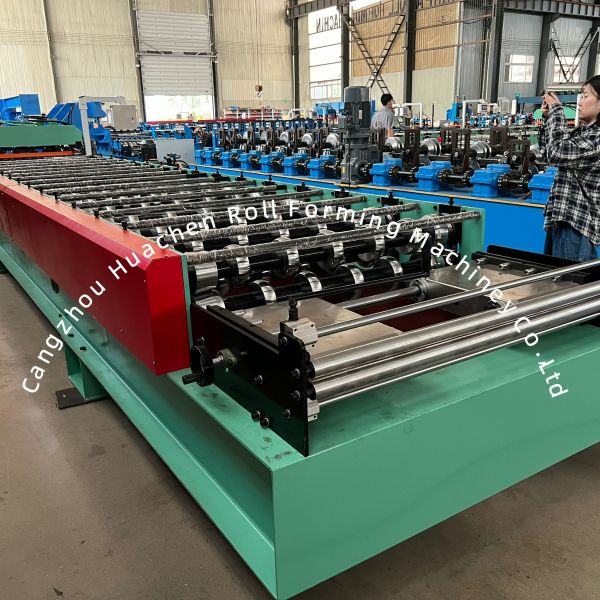

Feeding Table & Pre-Cutter

Guides coil into correct position for roll forming with hand pull cutting device

Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control

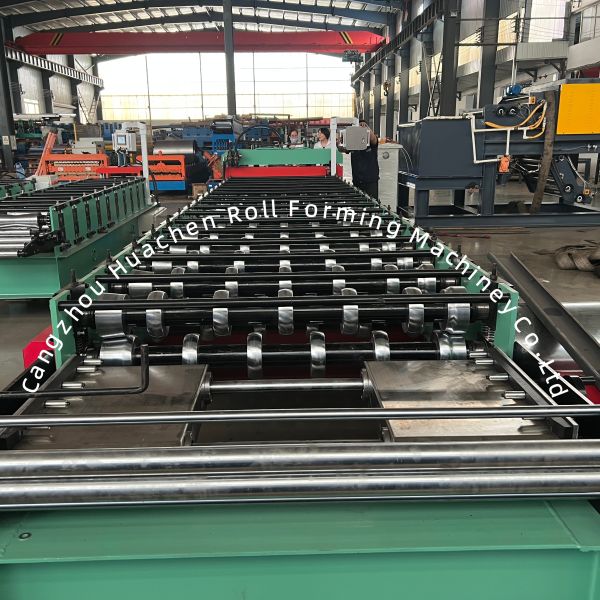

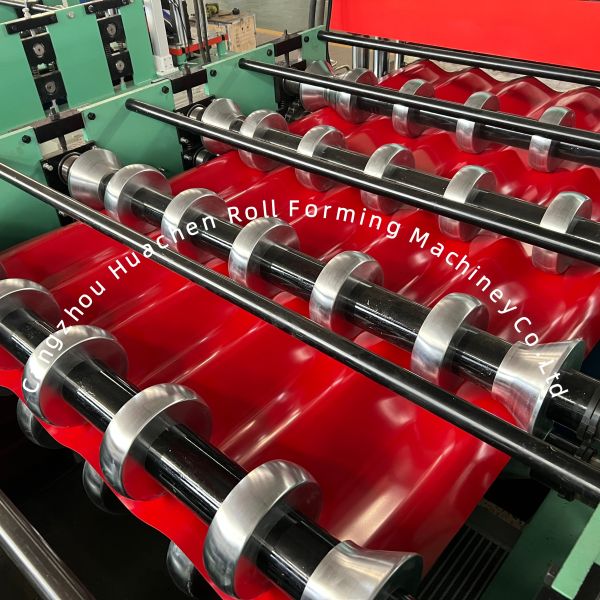

Shaft & Roller Assembly

45# Steel Quenching and Plating material ensures smooth, hard, rust-resistant rollers

Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control

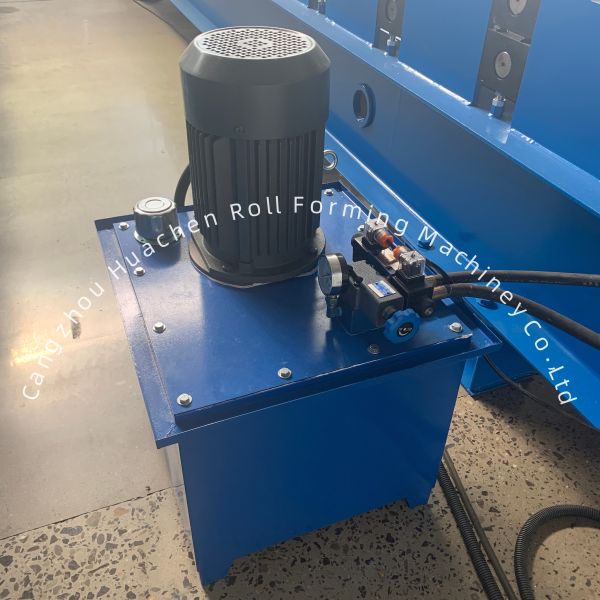

Hydraulic Pump Station

Drives cutter for cutting operations with 46# hydraulic oil and cooling system

Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control

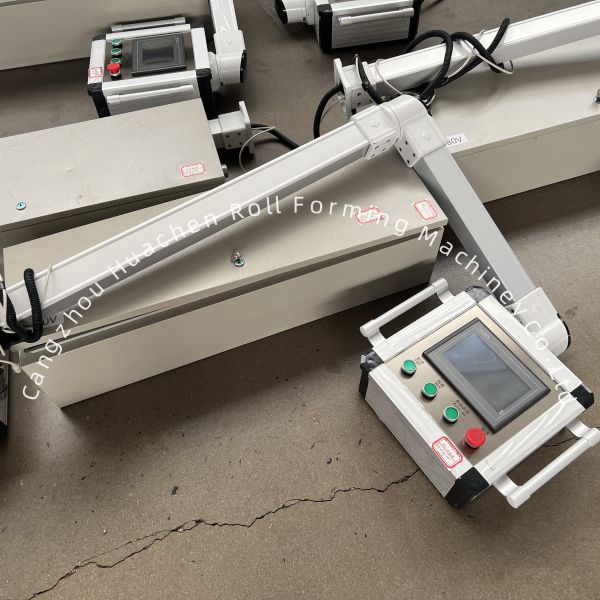

Touch Screen Control Cabinet

Features automatic/manual operation modes with Delta PLC and Delixi electrical components

Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control

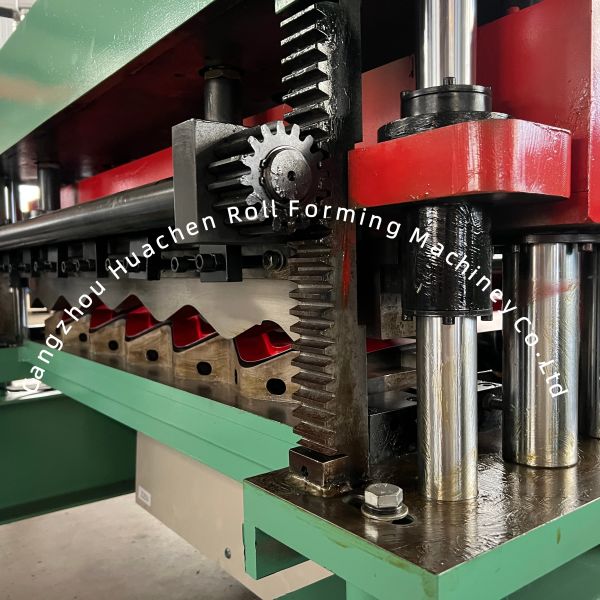

Pressing Section & Cutter
Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control

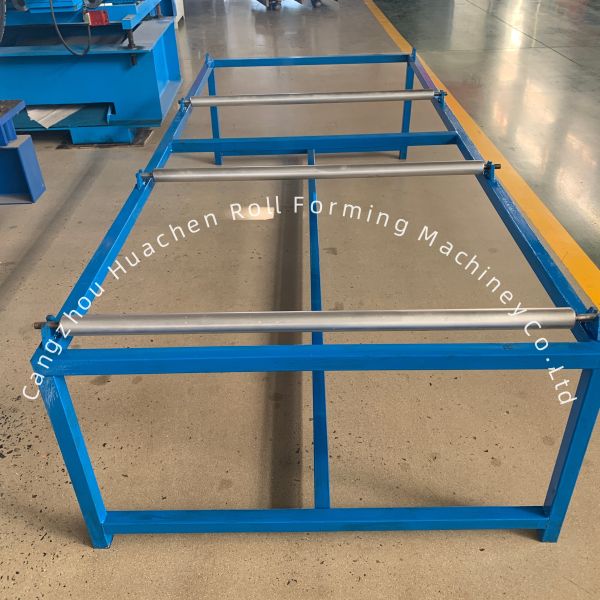

Output Table

Collects formed products with roller support system to prevent scratching

Professional Automatic Metal Roof Glazed Tile Roll Forming Machine with 16 Stations, 4m/min Speed, and PLC Control
Included Spare Parts
Component Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Services & Support
Packing Method

Nude packaging with waterproof cloth and stow-wood. Control cabinet packed with waterproof cloth and box. Equipment guaranteed moisture-proof, anti-corrosive, and protected during transportation.

Payment Terms

30% T/T deposit, remaining 70% T/T payment after buyer inspection at seller's factory before delivery.

Delivery Time

30 working days after receipt of deposit.

Technical Service

Technician dispatch available to customer's country. Customer covers all costs including visa, round trip tickets, accommodation, and technician salary of USD 100-120 per day.

Warranty

12-month comprehensive warranty. Replaceable parts provided free during warranty period (customer pays shipping). Includes operation CD and specifications in Chinese and English.

Packaging Requirements

One complete equipment requires one 20-foot container.
