12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive
12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive
12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive
12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive
12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive
12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive
12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive
12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive
Specifications
Brand Name :
HC
Model Number :
HC25-180-1080
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/month
Delivery Time :
25-30days
Packaging Details :
Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Material Type :
PPGI/GI
Material Thickness :
0.3-0.6mm
Material idth :
1250mm
Roller Stations :
12Stations
Roller & Shaft Material :
45# Steel Quenching and Plating
Diameter of Shaft :
Φ70mm
Cutter Material :
CR12
Drive Type :
Chain Drive
Speed :
4m/min
Total Power :
5.5+5.5KW
Voltage :
380V 50Hz 3Phases(can be customized)
Description
Roof Tile Roll Forming Equipment

Glazed Tile Making Machine Steel Sheet Roll Former

Product Overview
12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive 12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive 12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive 12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive
Material Requirements
  • Coated plates must meet relevant color-coated inspection standards with no peeling to ensure roll forming quality
  • Galvanized steel must meet relevant testing standards with no zinc layer peeling to maintain roll forming quality
Working Flow & Layout

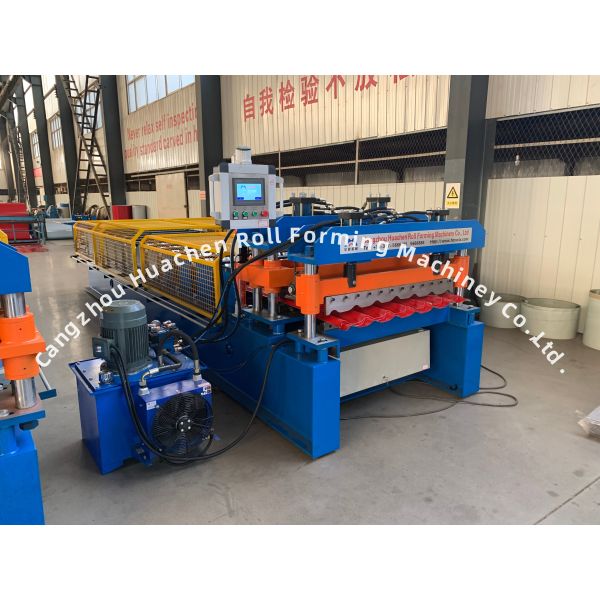

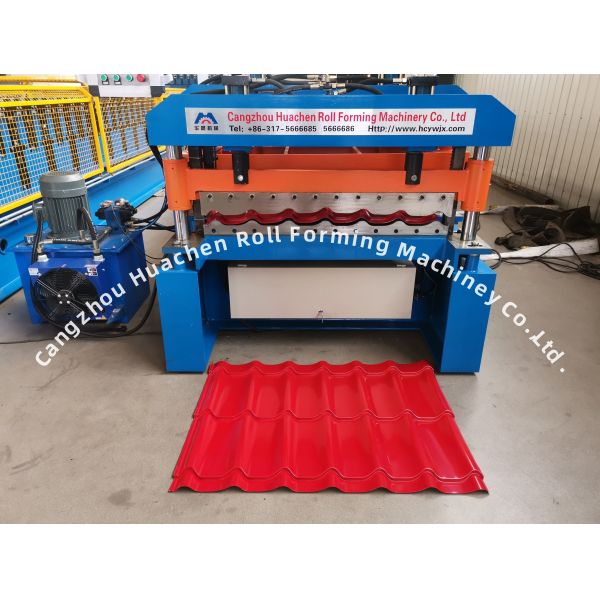

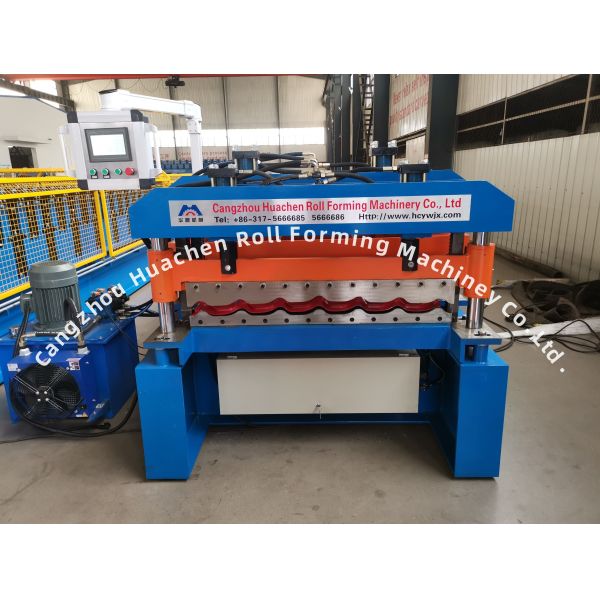

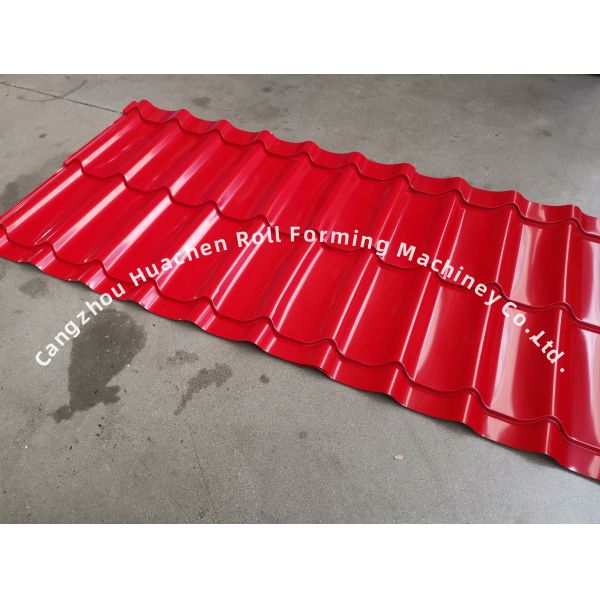

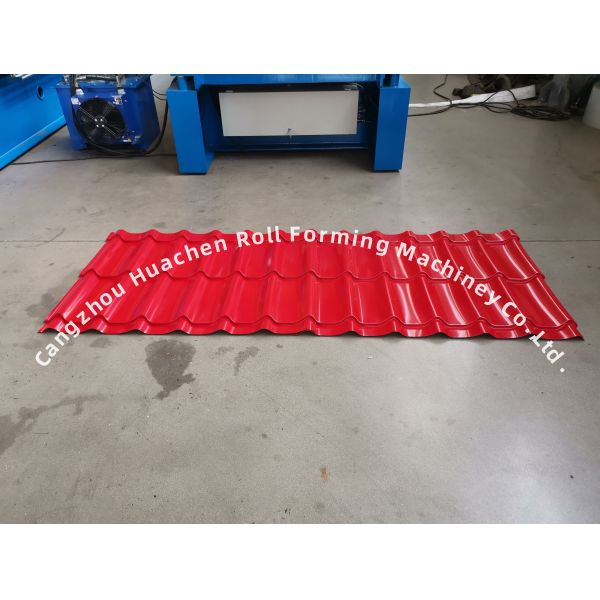

12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive
Technical Specifications
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1250mm
Roller Stations 12 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 4 m/min
Total Power 5.5 + 5.5 KW
Voltage 380V 50Hz 3 phases
Line Components and Characteristics
5T Manual Decoiler
12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive

Supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter
12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive

Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

Shaft & Roller

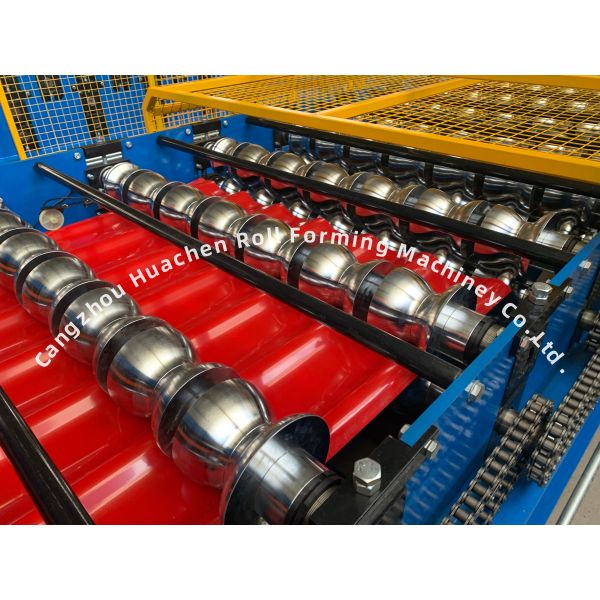

12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.

Hydraulic Pump Station
12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

Touch Screen Control Cabinet
12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive

Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

Pressing Section & Cutter
12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive

Blade and pressing mould material is CR12. Features high strength, excellent hardenability, and superior wear resistance.

Output Table

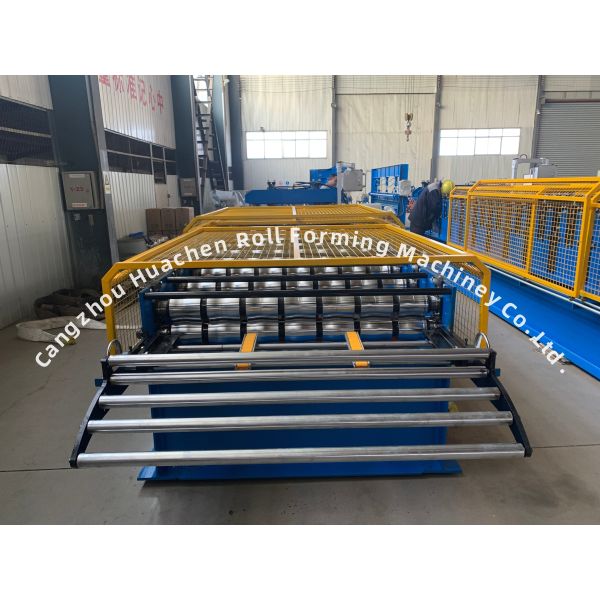

12 Stations Glazed Tile Roll Forming Machine for 0.3-0.6mm Thickness Steel Sheets with Chain Drive

Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.

Included Spare Parts
Component Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
After-Sales Service
  • Custom machine production available - send drawings for design consultation
  • Material procurement assistance - competitive pricing for color rolls
  • One year warranty with lifelong technical support
  • On-site technician training available (customer covers visa, return ticket, accommodations, food, and daily wage of US$100)
  • Overseas machinery service by qualified engineers
  • Factory visit assistance including accommodation booking and transportation
