1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels
1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels
1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels
1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels
1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels
1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels
Specifications
Brand Name :
HC
Model Number :
HC30-200-1000
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/month
Delivery Time :
25-30days
Packaging Details :
Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Material Type :
PPGI/GI
Material Thickness :
0.3-0.6mm
Material Width :
1250mm
Roller Stations :
15Stations
Roller & Shaft Material :
45# Steel Quenching and Plating
Diameter of Shaft :
Φ70mm
Cutter Material :
CR12
Drive Type :
Chain Drive
Speed :
4m/min
Total Power :
5.5+5.5KW
Voltage :
380V 50Hz 3Phases(can be customized)
Description
1250mm Glazed Step Tile Roofing Panel Roll Forming Equipment ISO
Product Overview

1250mm glazed step tile roofing panel roll forming machine designed for industrial manufacturing applications.

1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels 1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels 1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels
Technical Specifications
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1250mm
Roller Stations 15 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 4 m/min
Total Power 5.5 + 5.5 KW
Voltage 380V 50Hz 3 phases
Component Specifications
5T Manual Decoiler
1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels

Supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter
1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels

Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

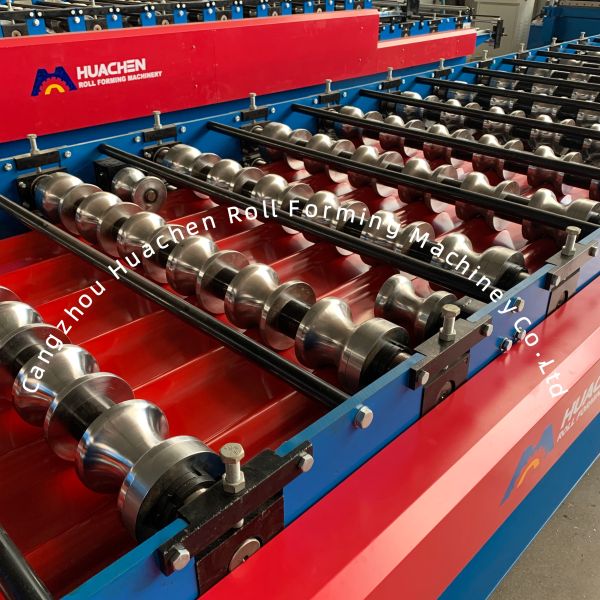

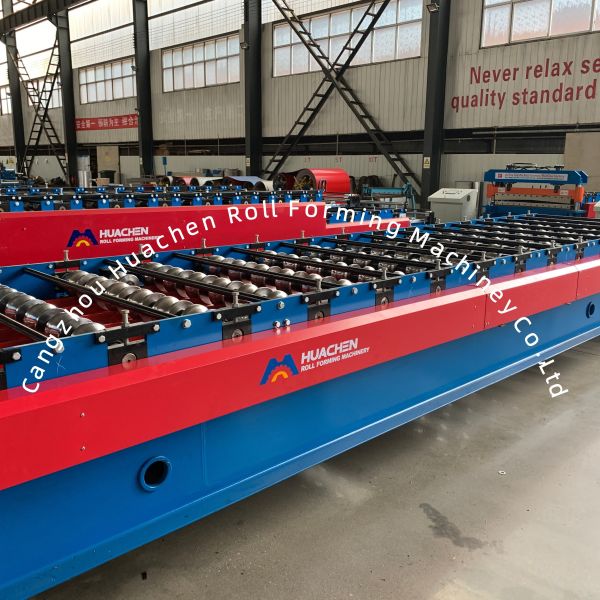

Shaft & Roller
1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.

Hydraulic Pump Station
1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

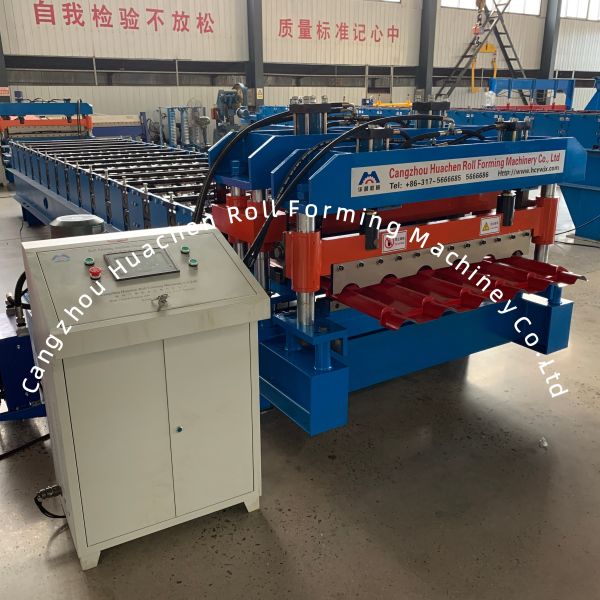

Touch Screen Control Cabinet
1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels

Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

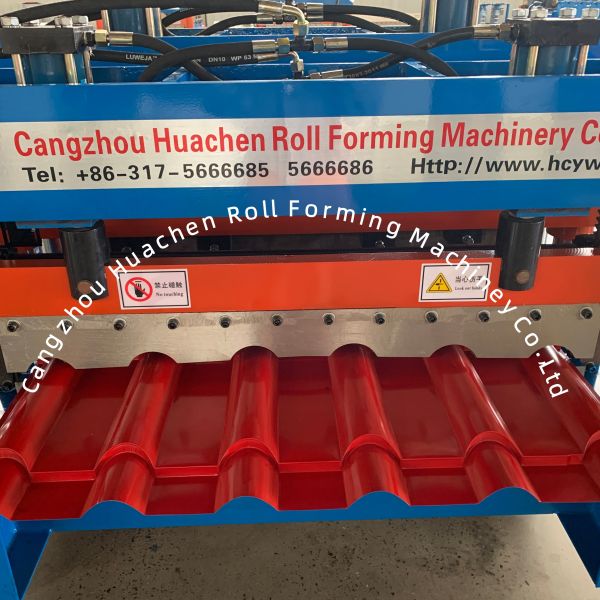

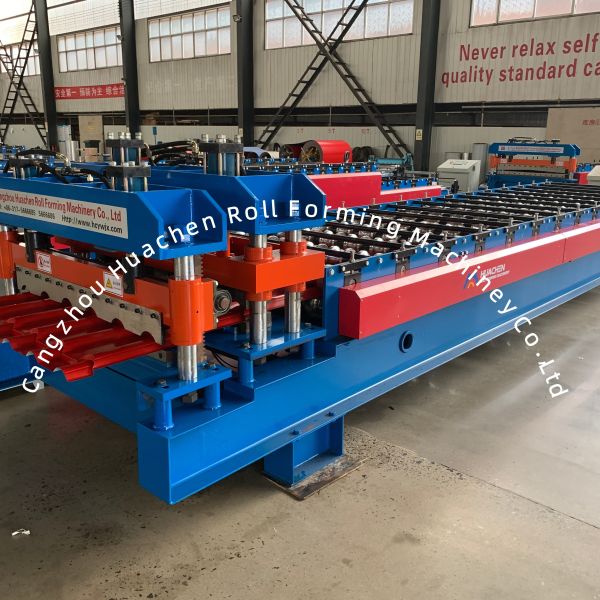

Pressing Section & Cutter
1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels

Blade and pressing mould material is CR12. Features high strength, excellent hardenability, and superior wear resistance.

Output Table
1250mm Glazed Step Tile Roll Forming Machine with 15 Stations and Chain Drive for Roofing Panels

Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.

Spare Parts
Component Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Service & Support
  • Packing Method: Nude, with waterproof cloth and stow-wood. The computer controlled cabinet is packed with waterproof cloth and box. The seller guarantees equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
  • Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
  • Delivery Time: The seller guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit from the buyer.
  • Service: We could send the technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.
  • Warranty: 12 months. During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee. We will also send one set CD and specification (Chinese and English) to you with the machine.
  • Package: One complete equipment needs a 20 feet container to hold.
